S4A - S4M
Taiwan Semiconductor
CREAT BY ART

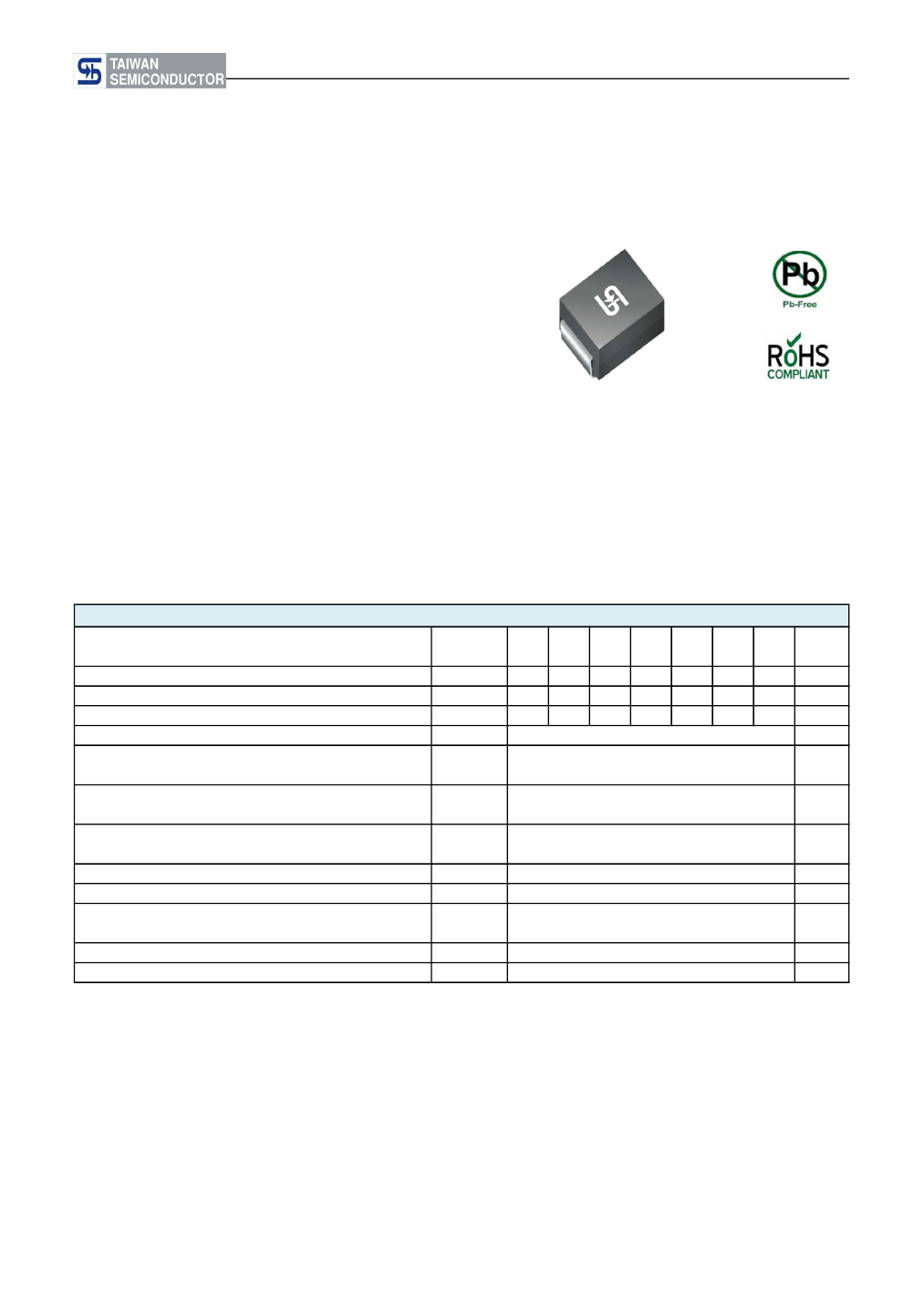

4A, 50V - 1000V Surface Mount Rectifiers
FEATURES
- Glass passivated chip junction
- Ideal for automated placement
- Low forward voltage drop
- High current capability
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case:
DO-214AB (SMC)
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Moisture sensitivity level: level 1, per J-STD-020
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.21 g (approximately)
DO-214AB (SMC)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 4 A
Maximum reverse current @ rated V
R
Typical reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
S4A
50
35
50
S4B
100
70
100
S4D
200
140
200
S4G
400
280
400
4
100
1.15
10
250
1.5
60
13
47
- 55 to +150
- 55 to +150
S4J
600
420
600
S4K S4M
800
560
800
1000
700
1000
UNIT
V
V
V
A
A
V
μA
μs
pF
°C/W
°C
°C
Document Number: DS_D1410019
Version: H15
S4A - S4M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
S4x
(Note 1)
R7
H
R6
M6
G
PACKING CODE
PACKING CODE
SUFFIX
SMC
SMC
SMC
850 / 7" Plastic reel
3,000 / 13" Paper reel
3,000 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 50V (S4A) to 1000V (S4M)
EXAMPLE
PREFERRED
PART NO.
S4MHR7G
PART NO.
S4M
PART NO.
SUFFIX
H
PACKING CODE
R7
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

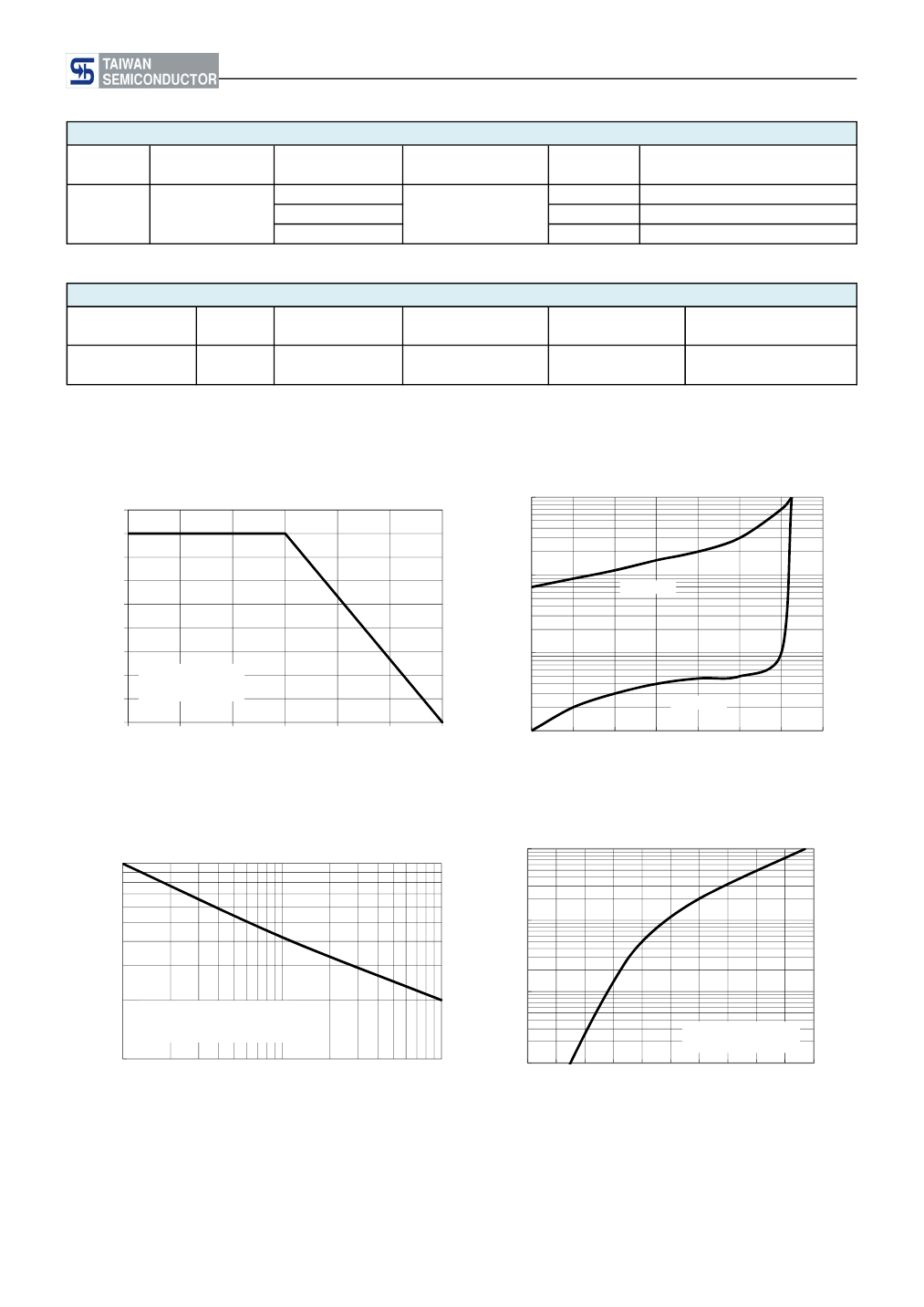

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
4.5
INSTANTANEOUS REVERSE CURRENT (μA)
FIG.2- TYPICAL REVERSE CHARACTERISTICS
100
4.0
AVERAGE FORWARD CURRENT.(A)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25
50
75
100
(
o
C)
RESISTIVE OR
INDUCTIVE LOAD
10
T
J
=125°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
125
150
LEAD TEMPERATURE.
FIG.3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
PEAK FORWARD SURGE CURRENT(A)
100
INSTANTANEOUS FORWARD CURRENT
(A)
FIG.4 TYPICAL FORWARD CHARACTERISTICS
10
1
8.3ms Single Half Sine Wave
PULSE WIDTH-300μs
1% DUTY CYCLE
0.1
0.6
0.7
0.8
0.9
1
1.1 1.2 1.3
FORWARD VOLTAGE (V)
1.4
1.5
1.6
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
Document Number: DS_D1410019
Version: H15
S4A - S4M
Taiwan Semiconductor
FIG.5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE.(pF)
10
f=1.0MHz
Vsig=50mVp-p
1
1
10
REVERSE VOLTAGE. (V)
100

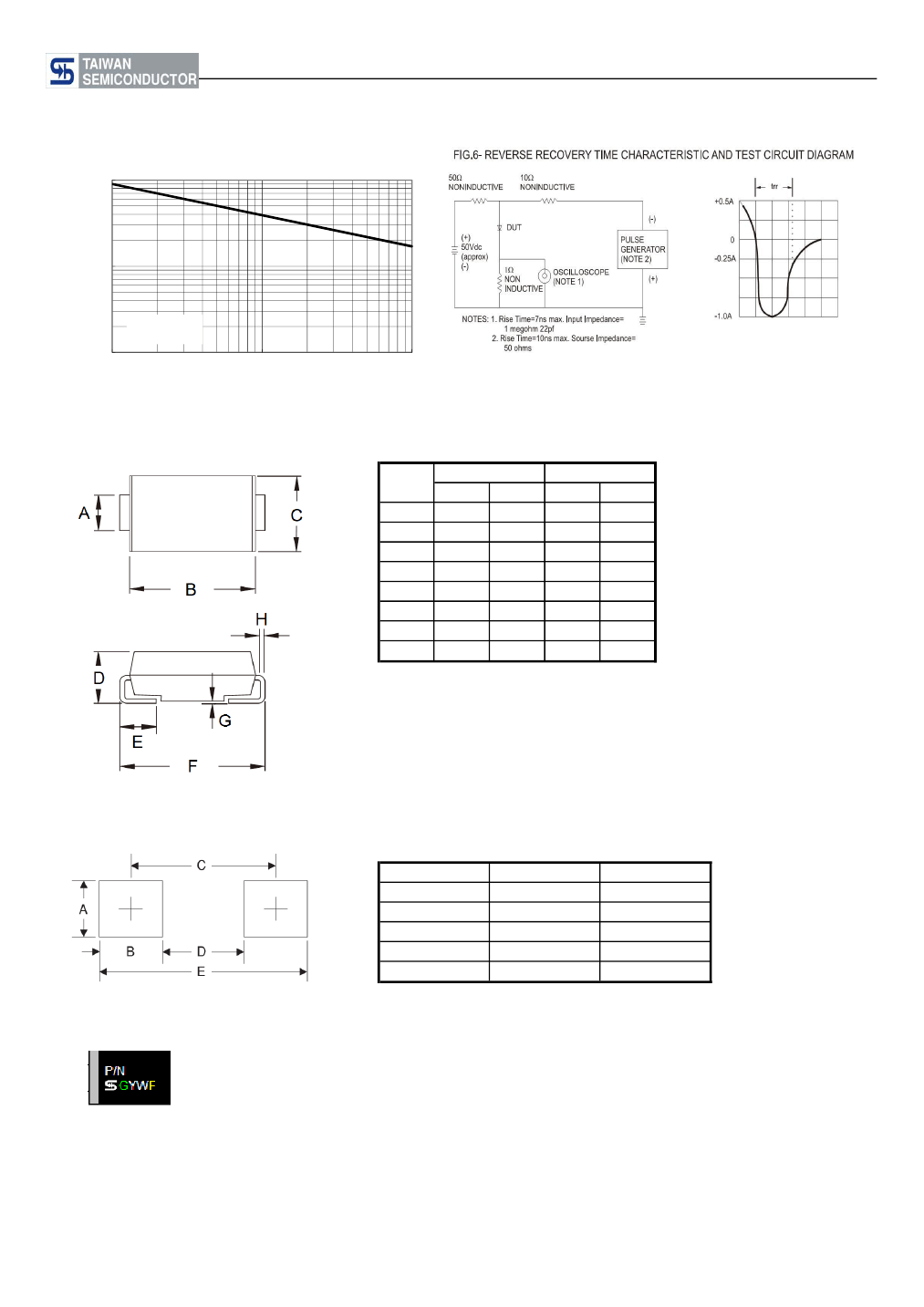

PACKAGE OUTLINE DIMENSIONS
DO-214AB (SMC)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
2.90
6.60
5.59
2.00
1.00
7.75
0.10
0.15
Max
3.20
7.11
6.22
2.62
1.60
8.13
0.20
0.31
Unit (inch)
Min
0.114
0.260
0.220
0.079
0.039
0.305
0.004
0.006
Max
0.126
0.280
0.245
0.103
0.063
0.320
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
3.3
2.5
6.8
4.4
9.4
Unit (inch)
0.130
0.098
0.268
0.173
0.370
MARKING DIAGRAM
P/N
G
YW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
