PSS-13-02-T-S-K: DescriptionRectangular Power Connector, 13 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size608KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PSS-13-02-T-S-K Overview

Rectangular Power Connector, 13 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT

PSS-13-02-T-S-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
body width	0.157 inch
subject depth	0.25 inch
body length	2.6 inch
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P13
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PSS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

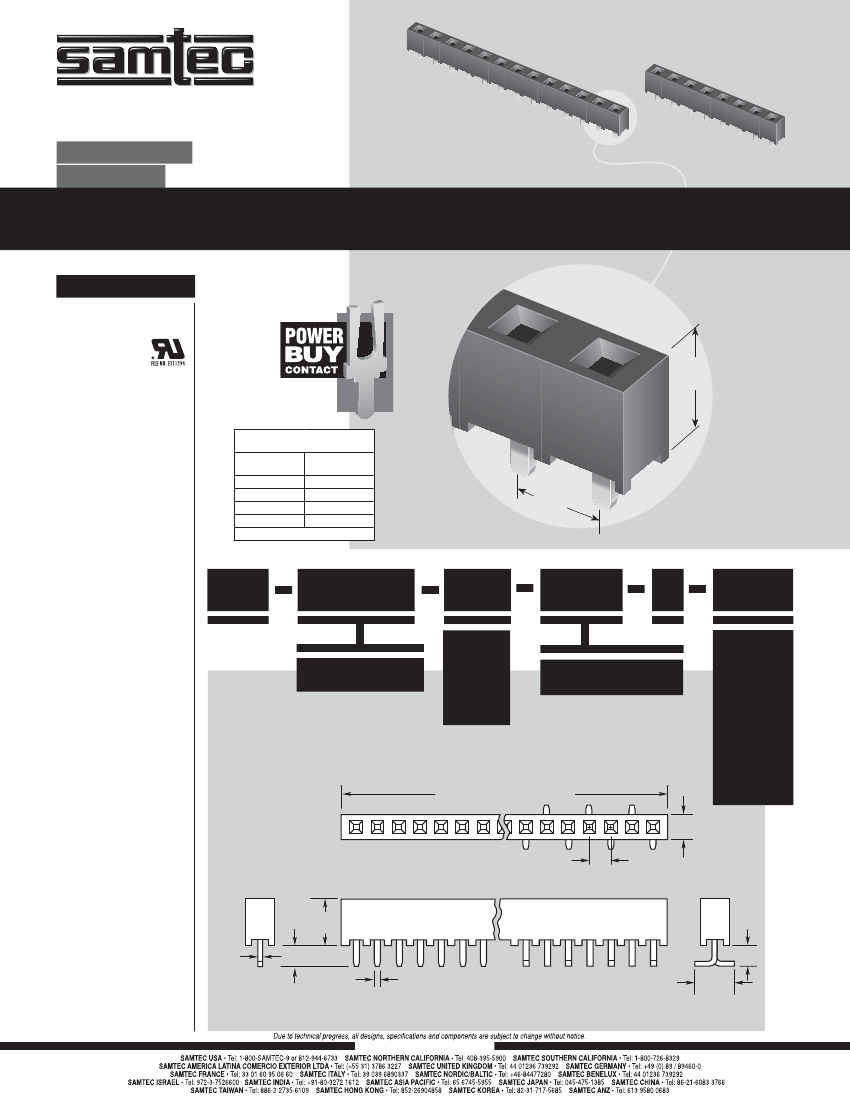

F-213 SUPPLEMENT

PSS–08–01–T–S

PSS–13–01–T–S

(5,08 mm) .200"

PSS SERIES

POWER SOCKET STRIP

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?PSS

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Sn over 50µ" (1,27 µm) Ni

Insertion Depth:

(2,62 mm) .103" to

(5,03 mm) .198"

Insertion Force:

(Single contact only)

28 oz (7,78 N) avg

Withdrawal Force:

(Single contact only)

20 oz (5,56 N) avg

Voltage Rating:

500 VAC mated with FWS

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max (02-14)

(0,20 mm) .008" max (15-20)

RoHS Compliant:

Yes

Mates with:

FWS, HFWS,

SW, HPM, HPW

(6,35 mm)

.250"

CURRENT RATING

(PER CONTACT)

AMBIENT

PSS/FWS

TEMP

20°C

16.3A

40°C

15.0A

60°C

13.0A

95°C

8.7A

4 POSITIONS POWERED

(5,08 mm)

.200"

PSS

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

S

OTHER

OPTION

–01

02 thru 20

= Through-

Hole

–K

–T

= Matte Tin

= (5,00 mm)

.196" DIA

Polyimide

Film Pick &

Place Pad

(–02 only)

–02

= Surface

Mount

–TR

= Tape & Reel

Packaging

(–02 thru 14

positions only)

(–02 only)

20

No. of Positions x (5,08) .200

01

(3,99)

.157

(5,08)

.200

(2,29)

.090 (6,35)

.250

(0,64)

.025

–01

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(2,68)

.105

(1,14)

.045

(8,00)

.315

–02

WWW.SAMTEC.COM
