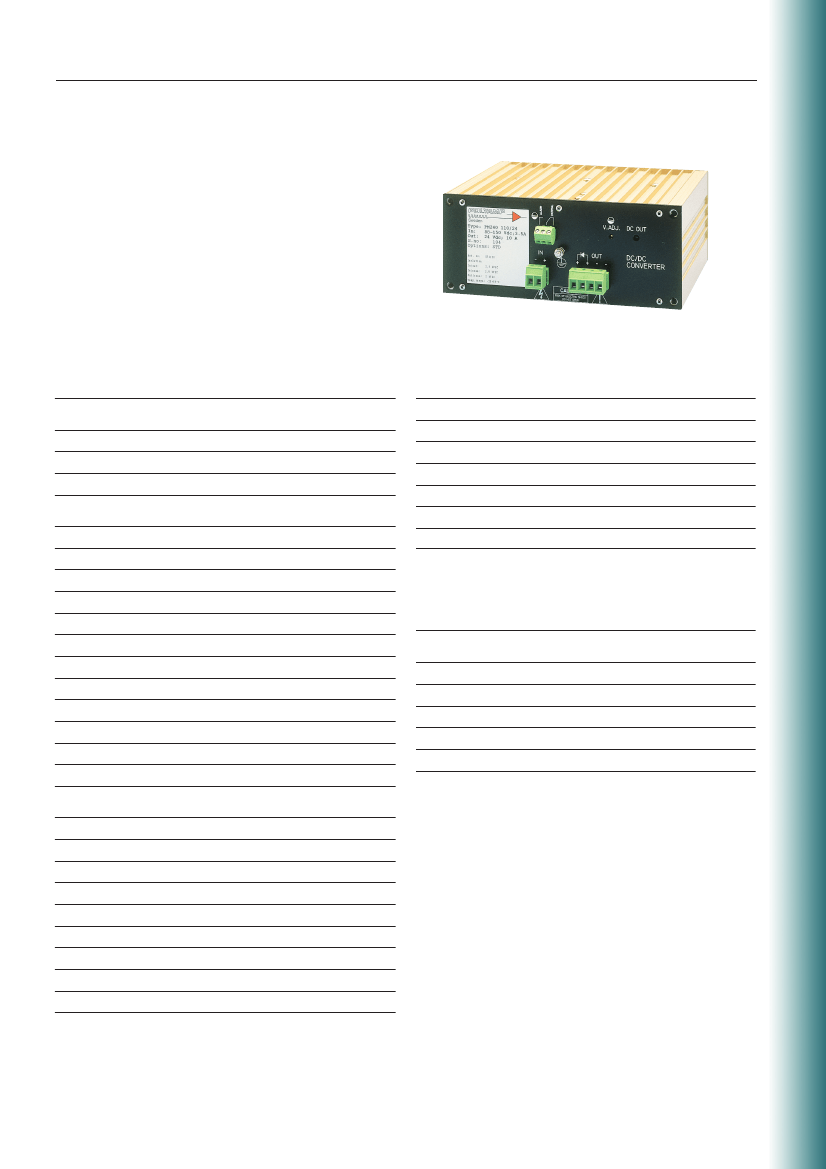

PM150-PM240
1 2 0 - 2 4 0 W AT T S D C / D C S I N G L E
OPEN FRAME & ENCLOSED
Features
•
•
•
•
•
•
Very wide input range
Reverse input voltage protection
High operating temperature
EMI/RFI meets EN55022-B
Safety IEC60950, EN60950
Operating temperature -25 to +55
O
C
Specifications
INPUT
Input voltage
Input current
12V, 24V, 36V, 48V, 110V, 220V. See table
See table
ENVIRONMENTAL
Operating temperature
Storage temperature
Cooling
-25°C to 55°C
-40°C to 85°C
Convection
Reverse polarity protection Yes
Inrush current limit
Soft start
Available as option. Add suffix “N” to model
number
Yes
STANDARDS AND APPROVALS
Safety standards
C-Tick
EMC standards
IEC60950, EN60950, EN/IEC61204-3
AS/NZS CISPR11 Group 1, Class A
EN1000-6-1-2
EN/IEC61000-4-2
EN/IEC61000-4-3
EN/IEC61000-4-4
EN/IEC61000-4-5
EN/IEC61000-4-6
EN61000-6-3,EN61000-6-4,
EN55011/EN55022 Level B
OUTPUT
Output voltage
Voltage adjustment
Output current
Ripple & noise
Line regulation
Load regulation
Temperature coefficient
Overcurrent protection
Overvoltage protection
No load power
Transient response
See table
-5% to +10%
See table
15–30mV pk-pk typical
0.1%
0.3%, 0%–100% load
0.02% per °C
Yes
Yes
9W
<1mS for 10/90% load step to within 3% of
nominal
EMI standards
MECHANICAL

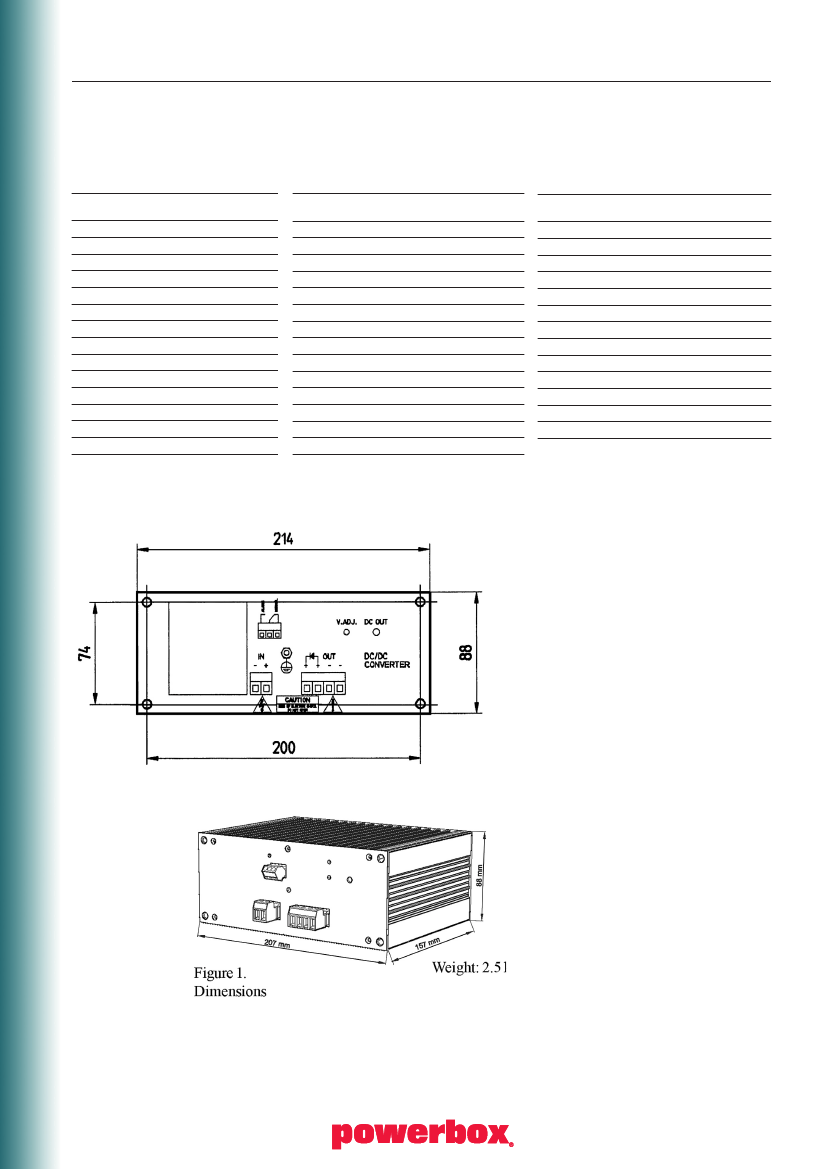

Dimensions
Weight
Conformal coating
Mounting brackets
PM150 & PM240: 88x214x160mm
2.5kg
Available as option. Add suffix “I”
Please consult Powerbox for mounting options
OPERATING
Efficiency
Switching frequency
Safety isolation
Alarm facilities
Indicators
Series operation
Parallel operation
Series diode
PM150: 80%–88%, PM240: 88%–91%
30kHz
Input/Output/Case: 2.5kVAC
Contacts for undervoltage, overvoltage
DC on LED
Yes
Yes
Provided as standard on output
Your dependable power partner – www.powerbox.com.au
