PM200-42: Description200 WATTS SINGLE & MULTIPLE OUTPUT AC/DC MEDICAL; File Size813KB，2 Pages; ManufacturerPowerbox; Websitehttps://www.powerbox.com

Download Datasheet View All

PM200-42 Overview

200 WATTS SINGLE & MULTIPLE OUTPUT AC/DC MEDICAL

Preview

Download Datasheet

View All

MEDICAL & MILITARY

PM200 Series

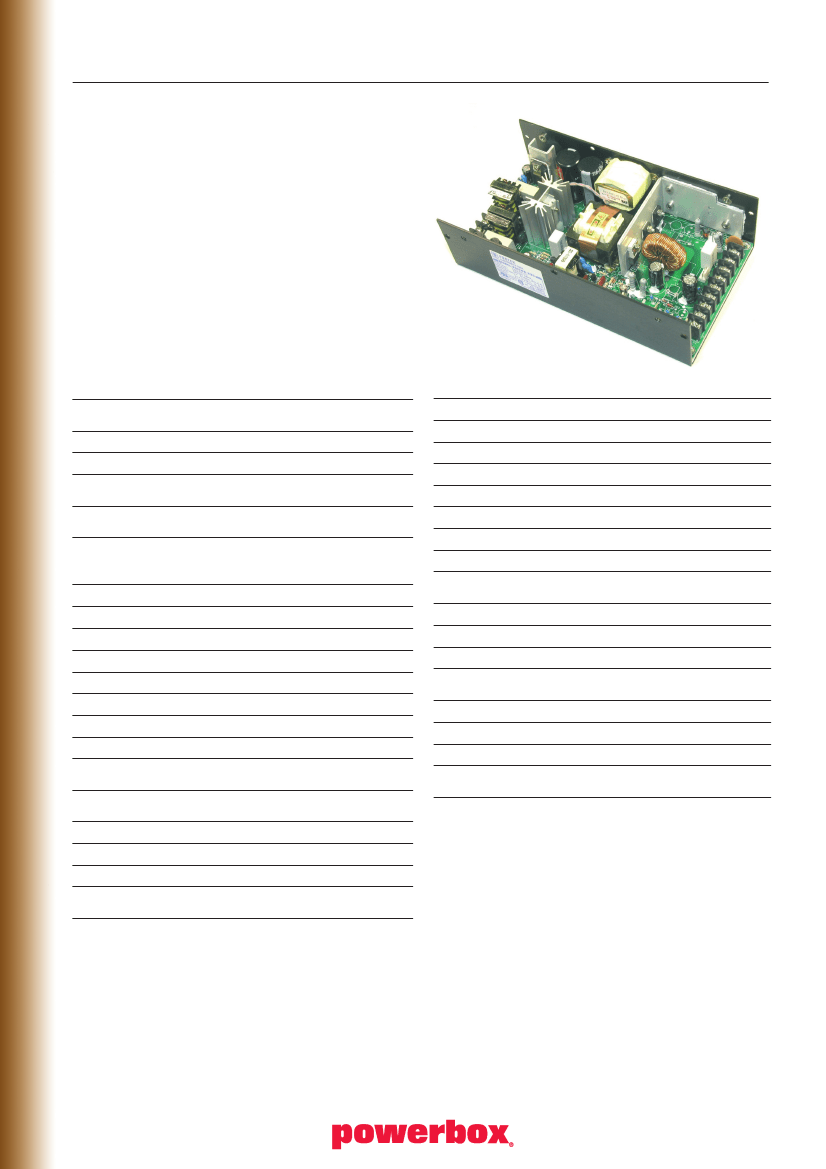

2 0 0 W AT T S S I N G L E & M U LT I P L E O U T P U T A C / D C M E D I C A L

Features

• Low safety ground leakage current.

• Autoranging input.

• Overvoltage protection.

• Overcurrent protection.

• Power fail detection (PFD) signal.

• Optional cover and fan assembly.

• 100% burn-in at full rated load.

• Short curcuit protected with auto-recvery

Specifications

INPUT

Input Voltage

Frequency

Input Current

Leakage current

Isolation

90-130/180-264Vac (Autoranging)

47Hz–67Hz

4.5A (rms) for 115Vac.

2.6A (rms) for 230Vac.

90µA max. @ 115Vac. 60Hz.

150µA max. @ 230Vac. 50Hz.

Input – Output: 4000VAC

Input – Ground: 1500VAC

Output – Ground: 500VAC

20A @ 115V, 40A @ 230V

OPERATING

MTBF

Efficiency

450,000 hrs @ 25°C

70% minimum.

ENVIRONMENTAL

Operating Temperature

Derating

Storage Temperature

Relative Humidity

Cooling

0°C to 70°C

Derate to 50% at 70°C

-40°C to 85°C

5%–95% non-condensing

25 CFM forced air, provided on “C” version, to be

provided for “B”version by user.

Inrush Current

OUTPUT

Output Voltage

Output Voltage Adjustment

Output Current

Ripple & Noise

Line Regulation

Load Regulation

Transient Response

Overvoltage Protection

Overcurrent Protection

Temperature Coefficient

Holdup Time

PFD Signal

See table

V1 ±10%

See table

2% peak to peak

±0.5% maximum at full load.

See table

Max. deviation 4% recovering to 1% within 500µs

after 25% load charge

Provided on V1 only. Set at 110%–132% of

nominal

All outputs protected for short circuit conditions

All outputs ±0.04% per °C

Typically 12mS at 110VAC

Power fail detection signal. TTL logic low upon

loss of input power.

STANDARDS AND APPROVALS

Safety standards

C-Tick

EMC standards

EMI standards

UL2601-1, CSA C22.2, TUV EN60601-1

AS/NZS CISPR11 Group 1, Class A

EN60601-1-2: 2001,EN61000-3-2, -3,

EN61000-4-2, -3, -4, -5, -6, -8, -11

EN55011 Class B, FCC Class B, VCCI Class B

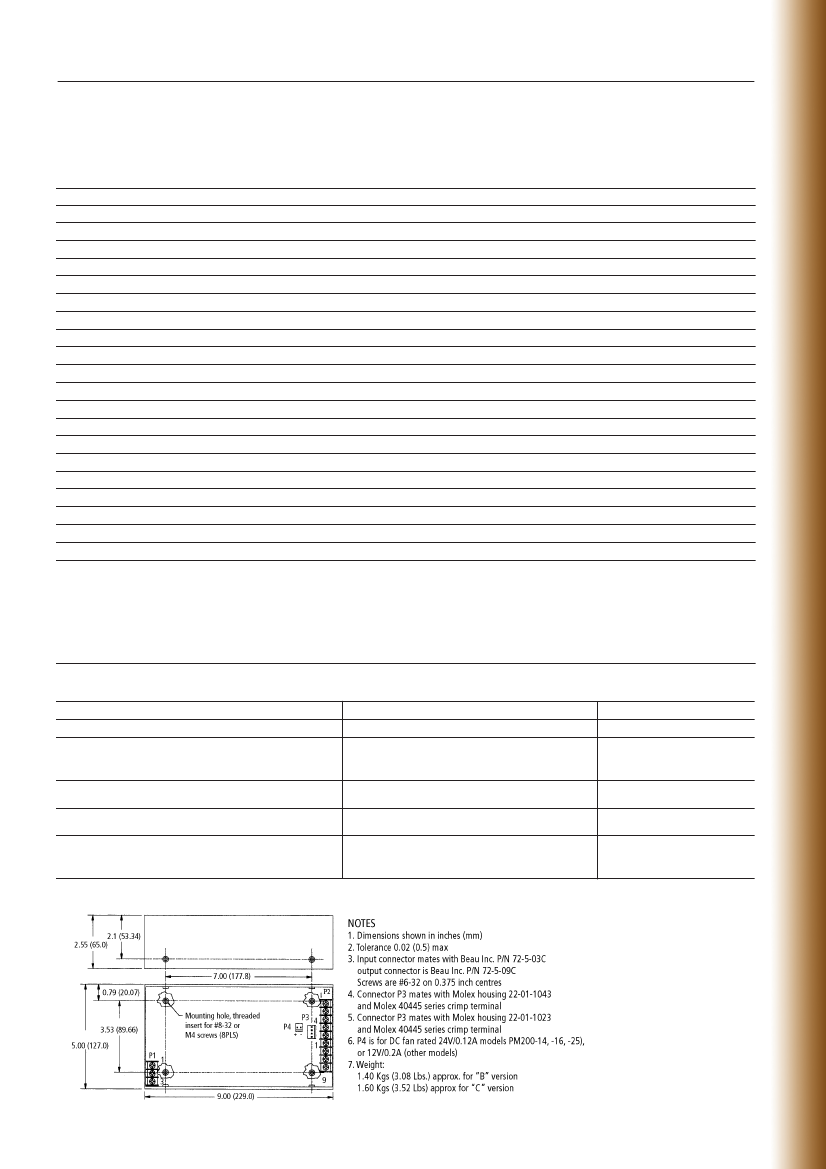

MECHANICAL

Dimensions

Weight

229x127x65mm

1.4Kgs for “B” version.

1.6Kgs for “C” version.
