PMP130-14 Overview

100 - 130 WATTS SINGLE OUTPUT AC/DC MEDICAL

Preview

Download Datasheet

View All

MEDICAL & MILITARY

PMP130 Series

1 0 0 - 1 3 0 W AT T S S I N G L E O U T P U T A C / D C M E D I C A L

Features

• In compliance with EN61000-3-2, EN61000-3-3

and EN61000-1-1-2.

• Thermal protection.

• Overvoltage protection.

• Overcurrent protection.

• 100% burn-in at full rated load.

Specifications

INPUT

Input Voltage

Frequency

Input Current

Leakage current

Isolation

90-264Vac

47Hz–67Hz

3.0A (rms) for 115Vac.

1.7A (rms) for 230Vac.

90µA max. @ 115Vac. 60Hz.

150µA max. @ 230Vac. 50Hz.

Input – Output: 4000VAC

Input – Ground: 1500VAC

Output – Ground: 500VAC

15A @ 115V, 30A @ 230V

OPERATING

MTBF

Efficiency

400,000 hrs @ 25°C

65-70% minimum.

ENVIRONMENTAL

Operating Temperature

Derating

Storage Temperature

Relative Humidity

0°C to 70°C

Derate to 50% at 60°C

-40°C to 85°C

5%–95% non-condensing

STANDARDS AND APPROVALS

Safety standards

C-Tick

UL2601-1, CSA C22.2, TUV EN60601-1

AS/NZS CISPR11 Group 1, Class A

EN60601-1-2: 2001,EN61000-3-2, -3,

EN61000-4-2, -3, -4, -5, -6, -8, -11

EN55011 Class B, FCC Class B, VCCI Class B

TBC

Inrush Current

OUTPUT

Output Voltage

Output Current

Ripple & Noise

Line Regulation

Load Regulation

Transient Response

Overvoltage Protection

Overcurrent Protection

Temperature Coefficient

Holdup Time

PFD Signal

(Optional)

See table

1% peak to peak

±0.5% maximum at full load.

See table

Max. deviation 4% recovering to 1% within

500µs after 25% load charge

Provided on V1 only. Set at 110%–132% of

nominal.

All outputs protected for short circuit conditions

All outputs ±0.04% per °C.

Typically 10ms at 110VAC.

Power fail detection signal. TTL logic low upon

loss of input power.

EMC standards

EMI standards

MEPS compliance

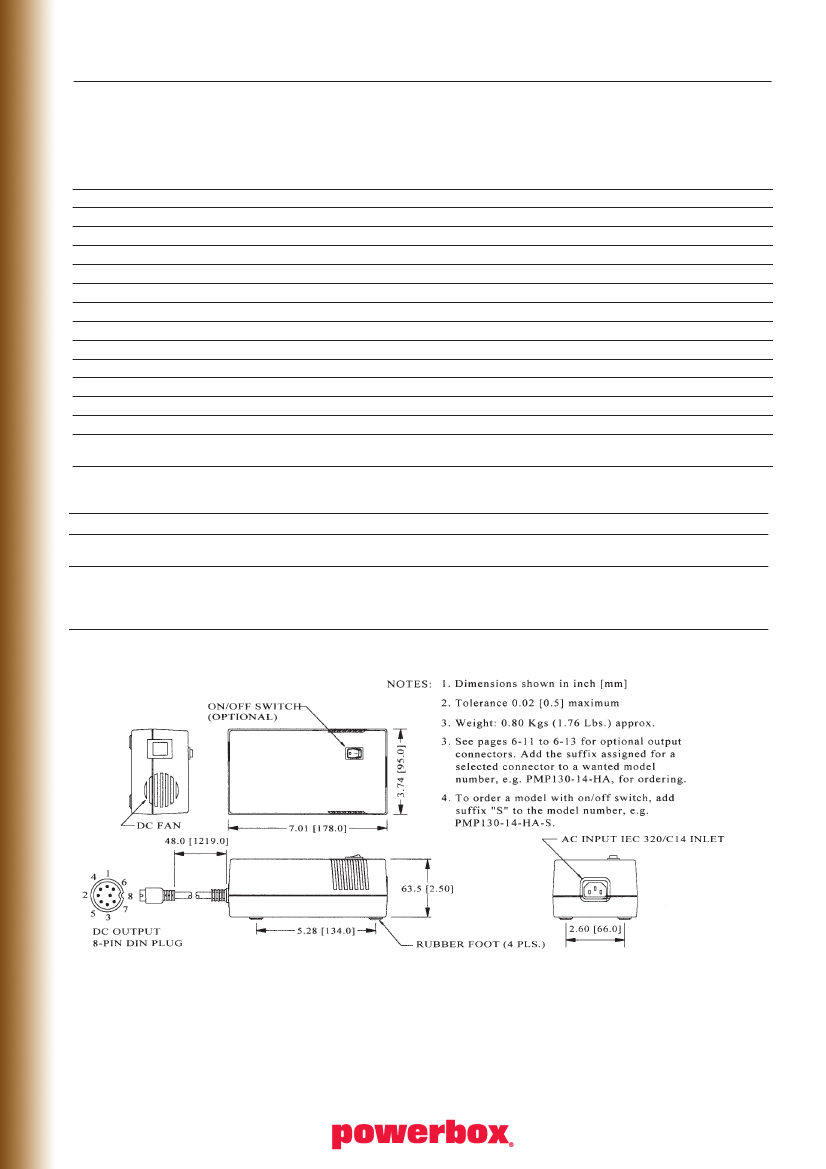

MECHANICAL

Dimensions

Weight

178x95x63.5mm

0.8kgs approx.

Your dependable power partner – www.powerbox.com.au

369
