MEDICAL & MILITARY

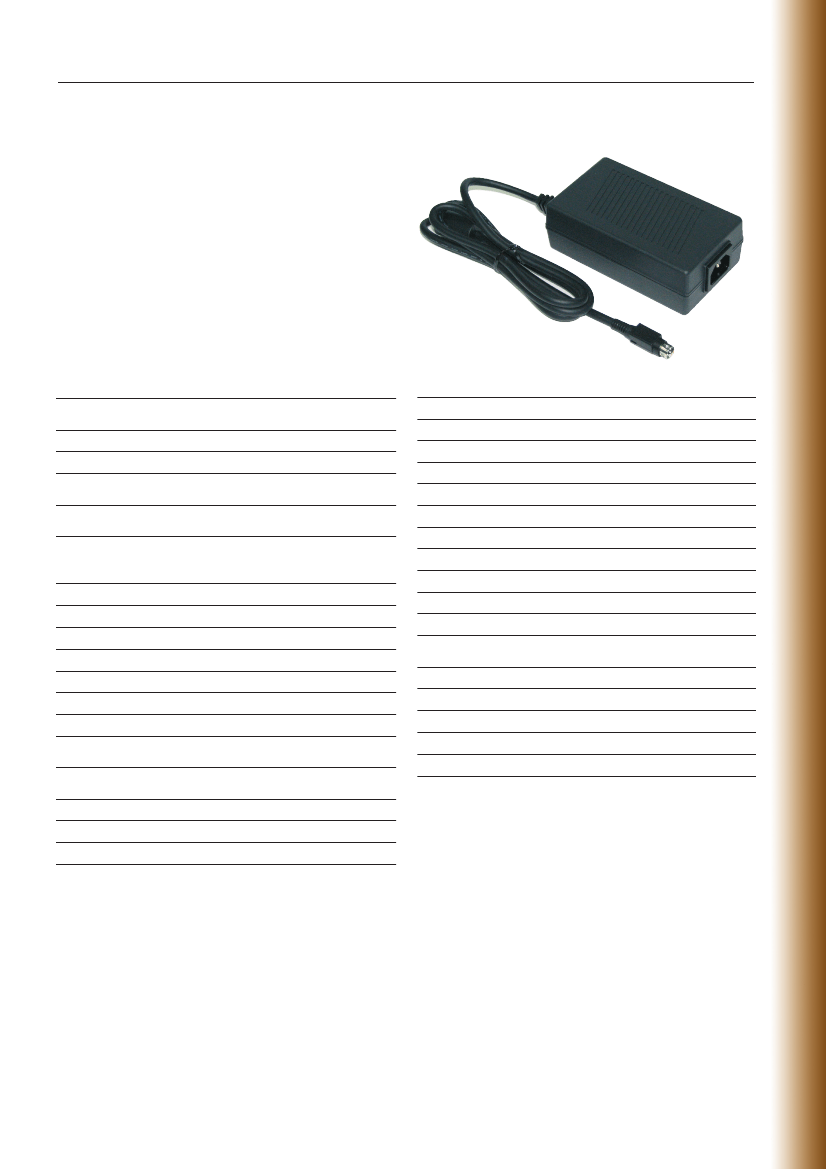

PMP90 Series
6 0 - 9 0 W AT T S S I N G L E O U T P U T A C / D C M E D I C A L - P R E L I M I N A R Y
Features
• Low safety ground leakage current.
• Overvoltage protection.
• Overcurrent protection.
• 100% burn-in at full rated load.
• Approved to IEC60950-1 and IEC60601-1.
Specifications
INPUT
Input Voltage
Frequency
Input Current
Leakage current
Isolation
90-264Vac
47Hz–67Hz
1.20A (rms) for 115Vac.
0.60A (rms) for 230Vac.
90µA max. @ 115Vac. 60Hz.
150µA max. @ 230Vac. 50Hz.
Input – Output: 4000VAC
Input – Ground: 1500VAC
Output – Ground: 500VAC
60A @ 115V, 120A @ 230V
OPERATING
MTBF
Efficiency
150,000 hrs @ 25°C
78-84% minimum.
ENVIRONMENTAL
Operating Temperature
Derating
Storage Temperature
Relative Humidity
0°C to 60°C
Derate to 50% at 60°C
-40°C to 85°C
5%–95% non-condensing
STANDARDS AND APPROVALS
Safety standards
C-Tick
UL2601-1, CSA C22.2, TUV EN60601-1
AS/NZS CISPR11 Group 1, Class A
EN60601-1-2: 2001,EN61000-3-2, -3,
EN61000-4-2, -3, -4, -5, -6, -8, -11
EN55011 Class B, FCC Class B, VCCI Class B
TBC
Inrush Current
OUTPUT
Output Voltage
Output Current
Ripple & Noise
Line Regulation
Load Regulation
Transient Response
Overvoltage Protection
Overcurrent Protection
Temperature Coefficient
Holdup Time
See table
See table
2% peak to peak
±0.5% maximum at full load.
See table
Max. deviation 4% recovering to 1% within 500µs
after 25% load charge
Provided on V1 only. Set at 110%–140% of
nominal.
All outputs protected for short circuit conditions
All outputs ±0.04% per °C.
Typically 15ms at 110VAC.
EMC standards
EMI standards
MEPS compliance

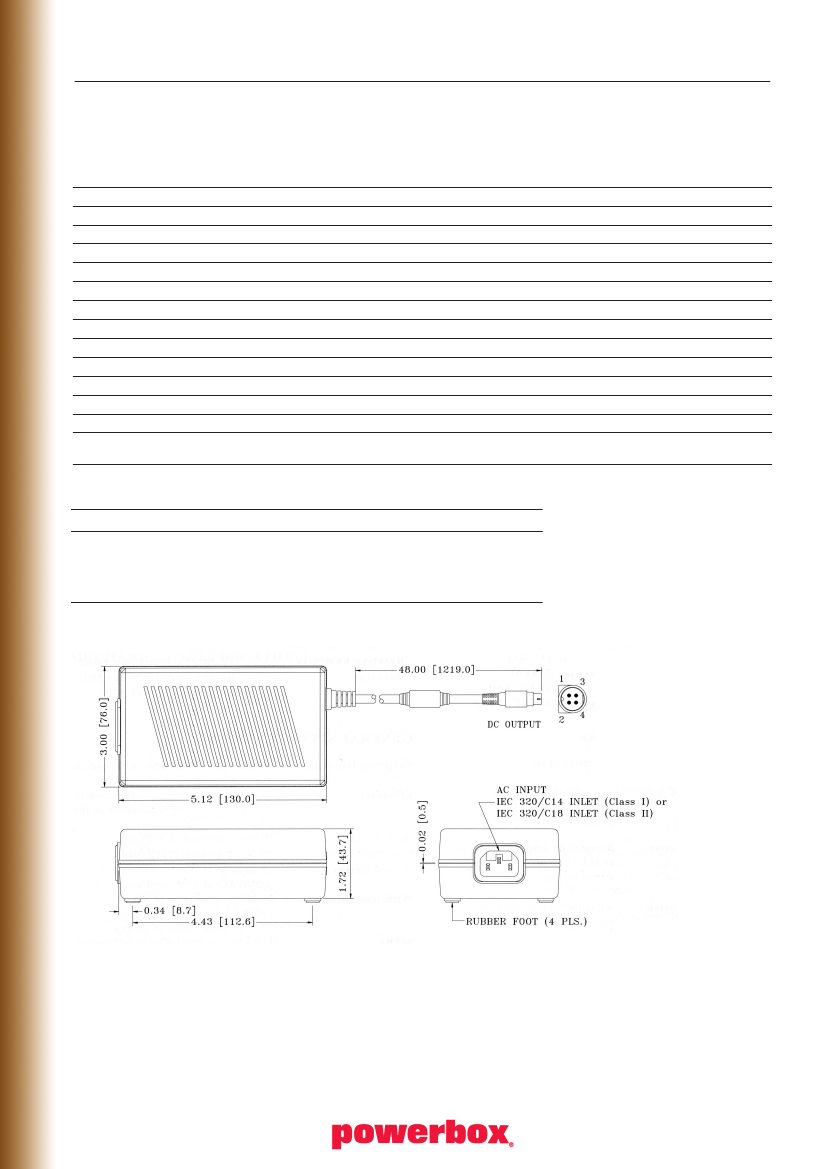

MECHANICAL
Dimensions
Weight
130x76x43.7mm
0.65kgs approx.
Your dependable power partner – www.powerbox.com.au
