PLCH12F9300A1: DescriptionRectangular Power Connector, 12 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

PLCH12F9300A1 Overview

Rectangular Power Connector, 12 Contact(s), Female, Press Fit Terminal

PLCH12F9300A1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Positronic Industries
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER/BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PLC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	PRESS FIT
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

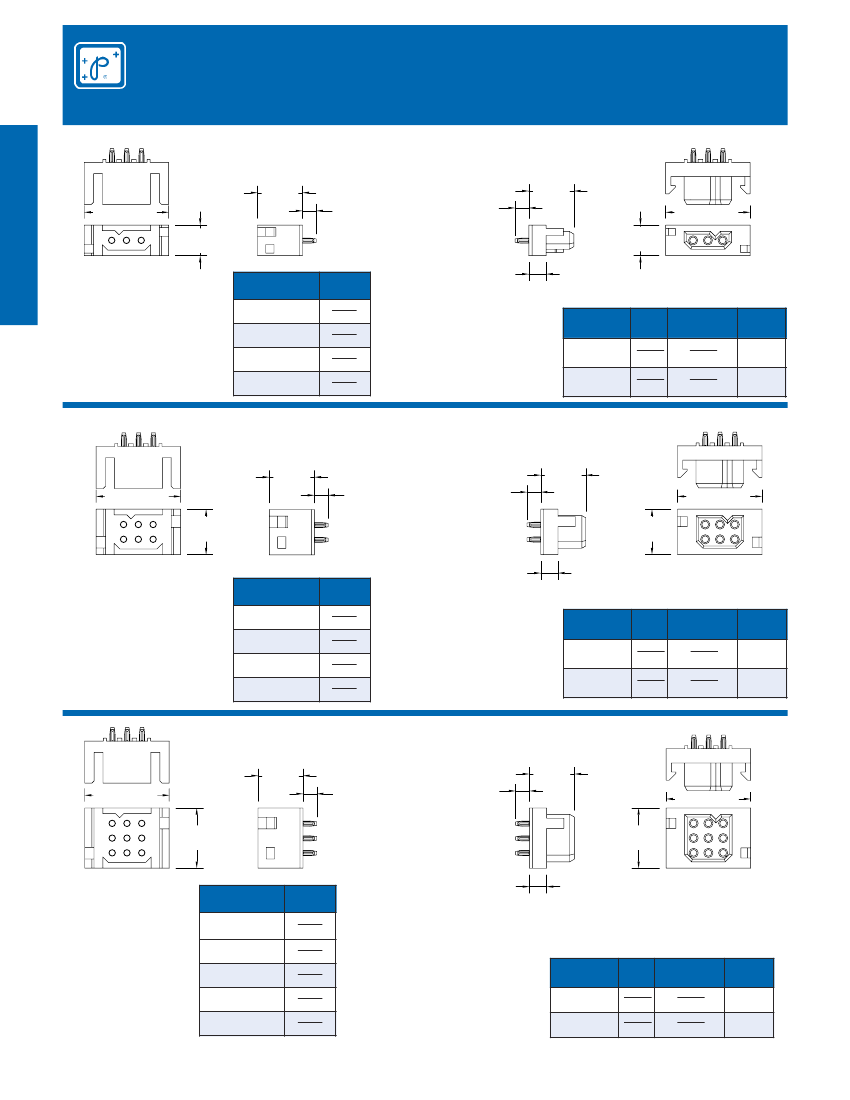

Positronic Industries, Inc.

www.connectpositronic.com

COMPLIANT TERMINATION

REPAIRABLE CONTACT

PRESS-FIT POWER CONNECTORS

P

ower

C

onnection

S

ystems

PLA COMPLIANT PRESS-FIT CONNECTORS

CODE 92, 93

FEMALE

MALE

PCS SERIES

13

0.600

[15.24]

A±0.020 [0.51]

0.408

[10.36]

L

0.600

[15.24]

A±0.020 [0.51]

0.408

[10.36]

0.230

[5.84]

Typical part number:

PLA03M93ST30A1

PLAH03M93ST30A1

**Asterisks determine

gender of connector,

M for male,

F for female and

contact code 92 or 93.

PART

NUMBER

PLA03**00A1

PLAH03**00A1

PLA04**00A1

PLAH04**00A1

PLA06**00A1

PLAH06**00A1

PLA08**00A1

PLAH08**00A1

A

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

2.112

[53.64]

Plating – Gold flash over nickel or

0.000030 [0.75µ] gold

over nickel on contacts.

For connection systems 1,4 and 6.

Typical part number:

PLA03F93ST30A1

PLAH03F93ST30A1

L

0.183

[4.65]

0.218

[5.54]

CONTACT

CODE

92

93

PCB

SCREW

THICKNESS CODE

0.093

[2.36]

0.125

[3.18]

ST2

ST3

PLB COMPLIANT PRESS-FIT CONNECTORS

CODE 92, 93

FEMALE

MALE

0.600

[15.24]

A±0.020 [0.51]

0.606

[15.39]

L

0.600

[15.24]

A±0.020 [0.51]

0.606

[15.39]

Typical part number:

PLB06M93ST30A1

PLBH06M93ST30A1

PART

NUMBER

PLB06**00A1

PLBH06**00A1

PLB08**00A1

PLBH08**00A1

PLB12**00A1

PLBH12**00A1

PLB16**00A1

PLBH16**00A1

0.230

[5.84]

A

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

2.112

[53.64]

Plating – Gold flash over nickel or

0.000030 [0.75µ] gold

over nickel on contacts.

For connection systems 1,4 and 6.

Typical part number:

PLB06F93ST30A1

PLBH06F93ST30A1

L

0.183

[4.65]

0.218

[5.54]

**Asterisks determine

gender of connector,

M for male,

F for female and

contact code 92 or 93.

CONTACT

CODE

92

93

PCB

SCREW

THICKNESS CODE

0.093

[2.36]

0.125

[3.18]

ST2

ST3

PLC COMPLIANT PRESS-FIT CONNECTORS

CODE 92, 93

MALE

A±0.020 [0.51]

0.600

[15.24]

L

0.600

[15.24]

FEMALE

A±0.020 [0.51]

0.802

[20.37]

0.802

[20.37]

Typical part number:

PLC09M93ST30A1

PLCH09M93ST30A1

PART

NUMBER

PLC09**00A1

PLCH09**00A1

PLC12**00A1

PLCH12**00A1

PLC18**00A1

PLCH18**00A1

PLC24**00A1

PLCH24**00A1

PLC30**00A1

PLCH30**00A1

A

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

2.112

[53.64]

2.506

[63.65]

0.230

[5.84]

See page 36

for Installation Tooling.

Typical part number:

PLC09F93ST30A1

PLCH09F93ST30A1

CONNECTORS ARE DESIGNED TO BE MOUNTED TO

THE PCB WITH SCREWS, SEE SCREW CODE.

**Asterisks determine

gender of connector,

M for male,

F for female and

contact code 92 or 93.

Plating – Gold flash over nickel or

0.000030 [0.75µ] gold over

nickel on contacts.

For connection systems 1,4 and 6.

CONTACT

CODE

92

93

L

0.183

[4.65]

0.218

[5.54]

PCB

SCREW

THICKNESS CODE

0.093

[2.36]

0.125

[3.18]

ST2

ST3

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.
