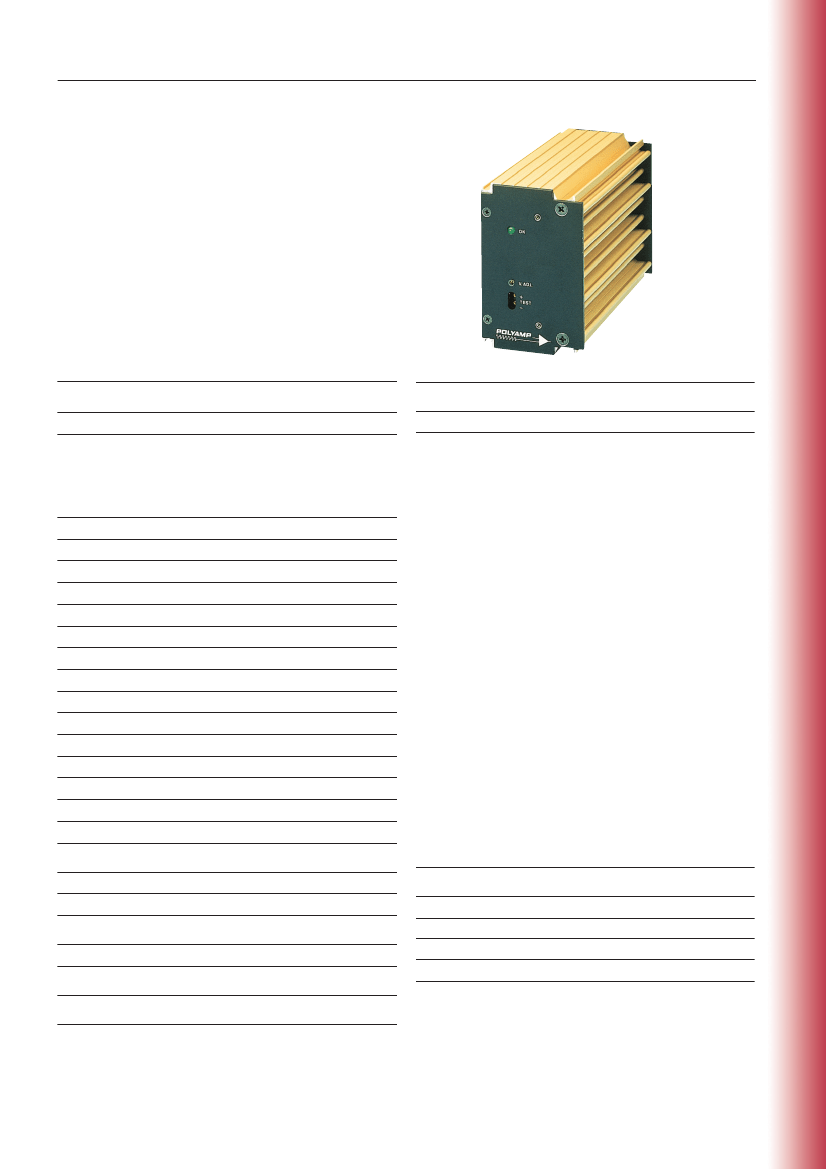

PSE100 Series
6 0 - 1 0 0
W AT T S
D C / D C
S I N G L E
O U T P U T
EURO CASSETTE
Features
•
•
•
•
•
•
Under voltage logic alarm.
Conformally coating, tropic.
Reverse input voltage protection.
High efficiency.
Fully encapsulated, meets IP30 standard.
Convectional cooled.
Specifications
INPUT
Voltage
Isolation
See table
Input – Output: 2kVdc (Input code A, B)
Input – Output: 2.5kVac / 4kVdc (Input code C/ D)
Input – Case: 2kVdc (Input code A, B)
Input – Case: 2.5kVac / 4kVdc (Input – code C/ D)
Output – Case: 2kVdc
Yes.
GENERAL
Cooling
Optional features
Convectional cooling.
-Overvoltage protection, option A.
The output
voltage is limited to 15% nominal output voltage. A
thyristor short- circuit the output.
-Undervoltage alarm with relay, option B.
The
logic alarm output is replaced with Relay with
selectable alarm logic NO or NC.
-Built in series diode, option C.
A series diode
on the output, when output is connected in parallel
with other power supplies to achieve redundancy.
Output power might be derated.
-Remote sense, option S.
The voltage sensing can
be put at the load to compensate for voltage drop.
This is standard feature on 5V output.
-Inrush current limit with NTC, option H.
Only for C
-input code. Reduce the inrush current during the
start up. The input voltage range will be affected.
- 2.5kVac isolation input/case, option E1.
On
A and B inputs. The emission level increase to level A.
- 2.5kVac isolation output/case, option E2.
The
emission level will increase to level A.
-Train input, option T.
Input voltage range
according to train Standard EN50155 and IEC 60751.
- Euro panel, option L 8TE for PSE 100, 10TE for 5V
output with extra cooler.
- Wall mounting panels, option N.
Wall
mounting panel with connector holder The female
connector has to be chosen.
- H15 screw type female, H15-S
- H15 fast-on 6.3mm female, H15-T
- Din rail TS35 clips, option Q.
Reverse voltage protection
OUTPUT
Voltage
Current
Source regulation
Load regulation
Output ripple (100kHz)
Voltage adjustment
Current limit protection
Under voltage logic alarm
Soft start
Start-up time
Hold-up time
Efficiency
See table.
See table.
0.2%.
0.2% (0-100% load)
10mV p-p (typical)
90% - 110%.
105%.
90% of nominal output.
Yes.
1s.
2-10ms
80-88%
ENVIRONMENTAL
Operating temperature
Temperature coefficient
Storage temperature
Conformal coating
-25°C to +70°C (100% load, O/P > 10V). -25°C to
+55°C (100% load, O/P < 10V).
0.02% / °C.
-40°C to 85°C.
Conformal coated to withstand non-condensing
tropical environment RH 95%
STANDARDS
Safety
EMI standards
C-Tick
IEC60950-1: 2001
EN55011/EN55022 class B, IEC/EN61000-6-2,
AS/NZS CISPR11: 2002 Group1 Class A
EN61000-6-2, EN/IEC61000-4-4, EN61000-4-5
MECHANICAL
Mechanical dimensions
Weight

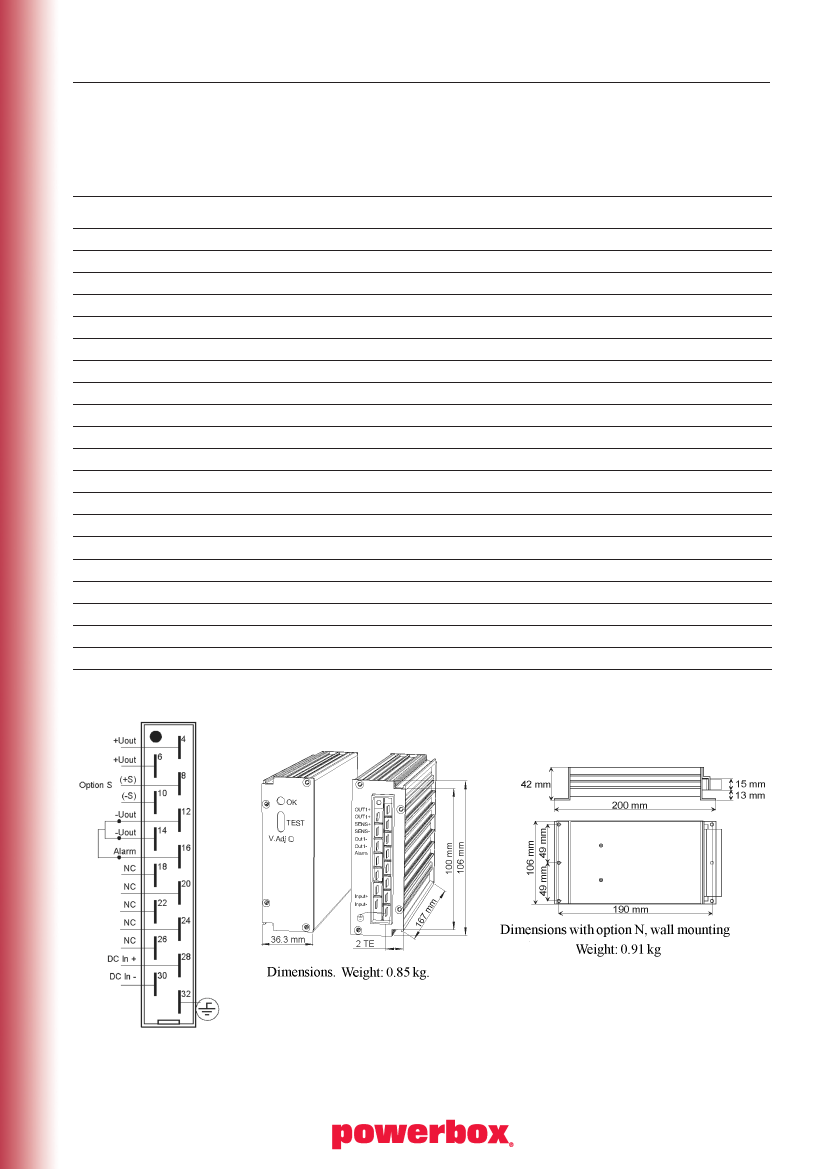

3U x 8TE x 167mm
0.85kg
EMC standards
