PUP 30-110

3 0 - 1 1 0

W AT T S

S I N G L E & M U LT I P L E O U T P U T A C / D C G E N E R A L

EXTERNAL

Features

•

Wide range of models

Adjustable output voltage

Single, dual, triple and quad output voltages

Universal input

Overcurrent protection

Overvoltage protection

UL, CSA, and CE approvals

MEPS compliance

Specifications

INPUT

Input voltage

Frequency

Input current

85–264Vac wide input

47Hz–63Hz

PUP30: 0.80A @ 115V, 0.5A @ 230V

PUP55: 1.5A @ 115V, 0.9A @ 230V

PUP110: 3.2A @ 115VAC, 1.8A @ 230VAC

Input – Output: 3000Vac

Input – Ground: 1500Vac

Output – Ground: 500Vac

15A @ 115V, 30A @ 230V

OPERATING

MTBF

Efficiency

Insulation resistance

PFD signal

100,000 hrs @ 25°C

65%–70%

10M from Output to Ground

Power fail detection optional on PUP110

ENVIRONMENTAL

Operating temperature

Derating

Storage temperature

Relative humidity

0°C to 50°C

Derate to 50% at 70°C

-40°C to 85°C

5%–95% non-condensing

Isolation

Inrush current

OUTPUT

Output voltage

Output voltage adjustment

Output current

Output power

Ripple & noise

Line regulation

Load regulation

Transient response

Overvoltage protection

Overcurrent protection

Temperature coefficient

Holdup time

See table

V1 only – see table, ±10% on multi outputs

See table

PUP30 @ 30W

PUP55 @ 55W

PUP110 @ 110W

1% peak to peak

±0.5% over input range

See table

Max. deviation 4% recovering to 1% within

500µs after 25% load charge

Provided on V1 only. Set at 110%–132% of

nominal

All outputs protected for short circuit conditions

All outputs ±0.04% per °C

Typically 10mS at 110VAC

STANDARDS AND APPROVALS

Office of energy

Safety

C-Tick

EMC standards

EMI standards

PUP30: N13637; PUP55: N13180

UL1950, CSA C22.2, EN60950

AS/NZS CISPR11 Group 1 Class A

EN61000-4-2, EN61000-4-3, -4, -5, -6, -8, -11

EN55022 level B, FCC level B, VCCI level B,

EN61000-3-2, EN61000-3-3

MECHANICAL

Input connector

Output connector

IEC320 socket

Various combinations of cord and plug available.

Consult our sales office

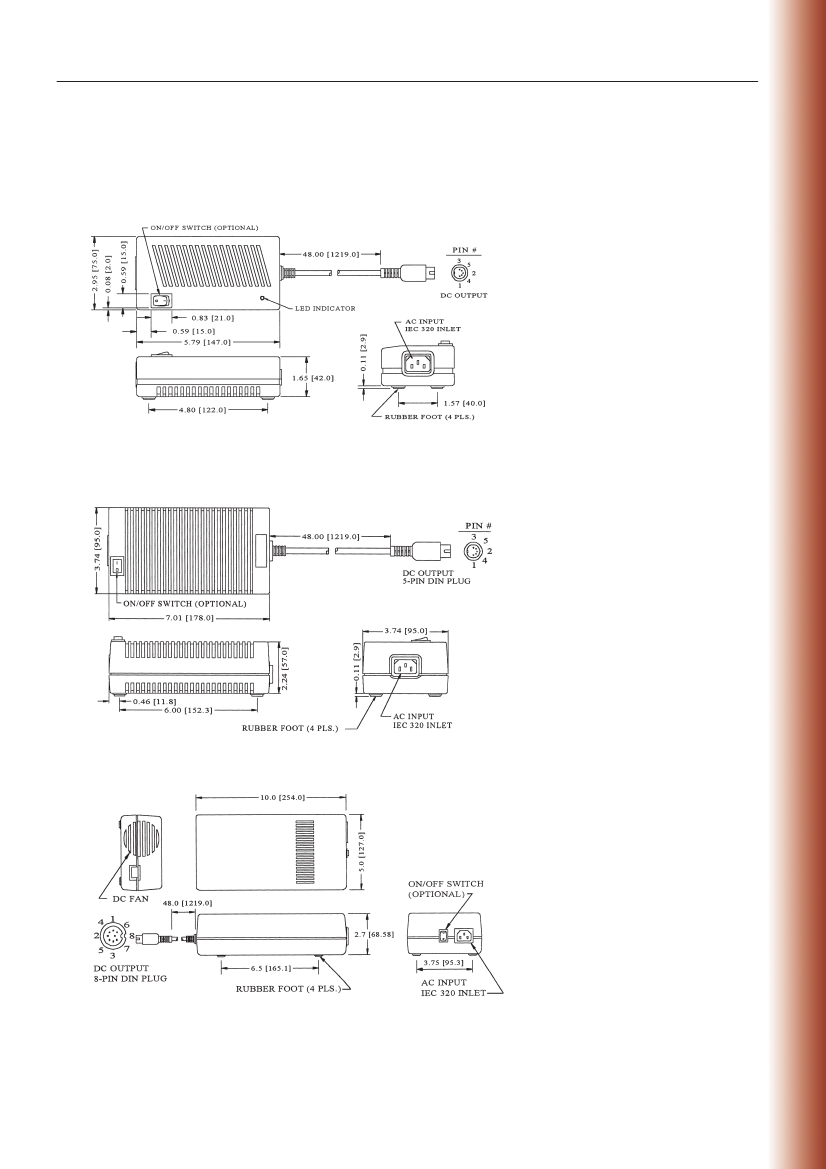

PUP30: 147x75x42mm

PUP55: 178x95x57mm

PUP110: 254x127x68mm

PUP30: 500g; PUP55: 700g; PUP110: 1.2kg

Dimensions

Weight

*For detailed data sheet and output Pin connections and connector type, call our

sales office

Your dependable power partner – www.powerbox.com.au
