5-556985-2 datasheet, PDF - EEWORLD Datasheet

5-556985-2: DescriptionPHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN,WIRE TERMINAL,WIRE TERMINAL; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

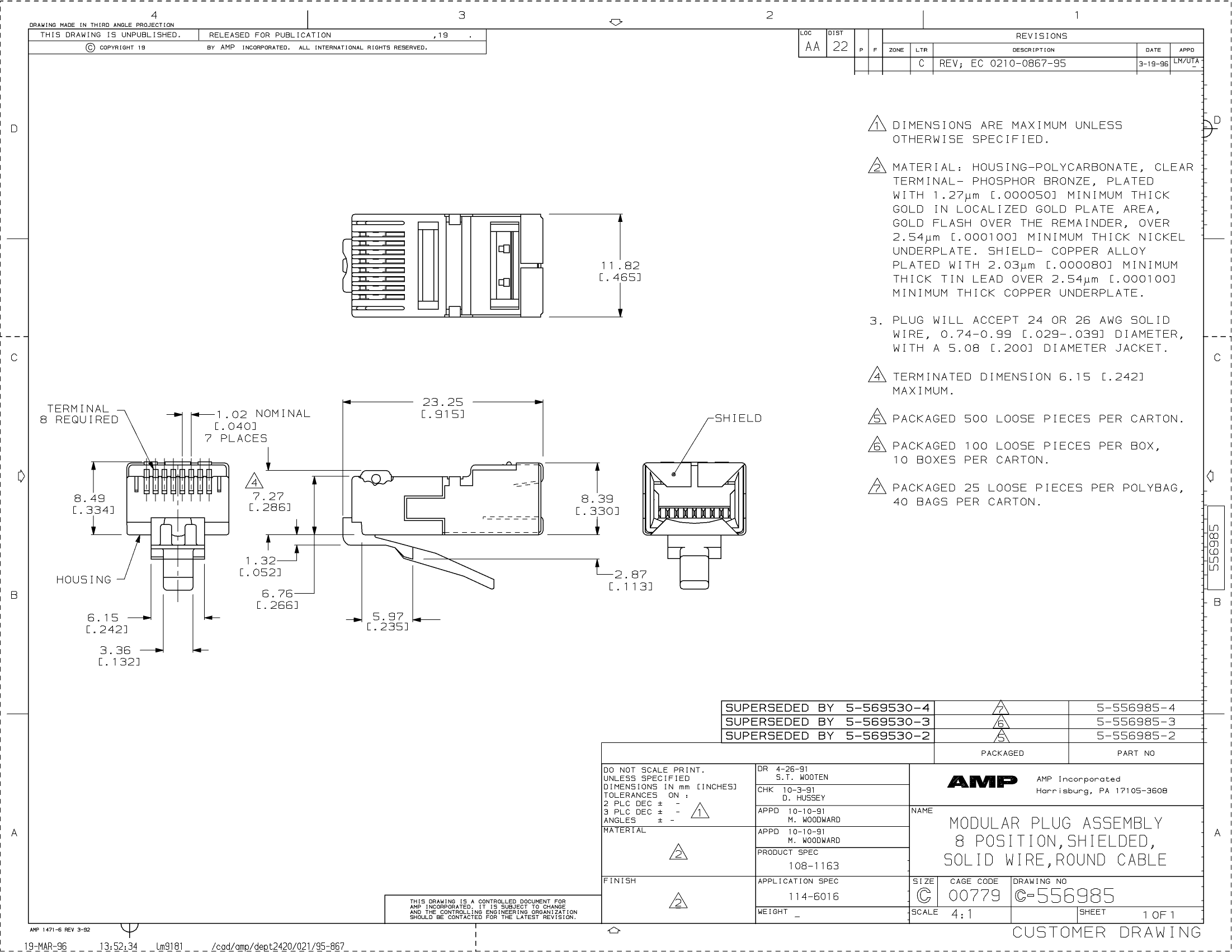

5-556985-2 Overview

PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN,WIRE TERMINAL,WIRE TERMINAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	500 PIECES PER BOX
body width	0.33 inch
subject depth	0.915 inch
Body/casing type	PLUG
Cable type	ROUND
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
Insulation resistance	500000000 Ω
insulator material	POLYCARBONATE
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Termination type	WIRE
Total number of contacts	8
Base Number Matches	1

	5-556985-2	5-556985-3
Description	PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN,WIRE TERMINAL,WIRE TERMINAL	PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN,WIRE TERMINAL,WIRE TERMINAL
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown
Other features	500 PIECES PER BOX	100 PIECES PER BOX
body width	0.33 inch	0.33 inch
subject depth	0.915 inch	0.915 inch
Body/casing type	PLUG	PLUG
Cable type	ROUND	ROUND
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	750 Cycles	750 Cycles
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	POLYCARBONATE	POLYCARBONATE
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Number of rows loaded	1	1
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-40 °C	-40 °C
Plating thickness	50u inch	50u inch
Rated current (signal)	1.5 A	1.5 A
Guideline	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	WIRE	WIRE
Total number of contacts	8	8
