B6106NLT: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size330KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B6106NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B6106NLT	-	-	View	Buy Now

B6106NLT Overview

Telecom Transformer, ROHS COMPLIANT

B6106NLT Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LENGTH AND HEIGHT DIMENSION INCLUDES TERMINALS ALSO
high	3.99 mm
length	8.38 mm
Manufacturer's serial number	B6106NL
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L8.38XB5.33XH3.99 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	5.33 mm
Base Number Matches	1

Preview

Download Datasheet

View All

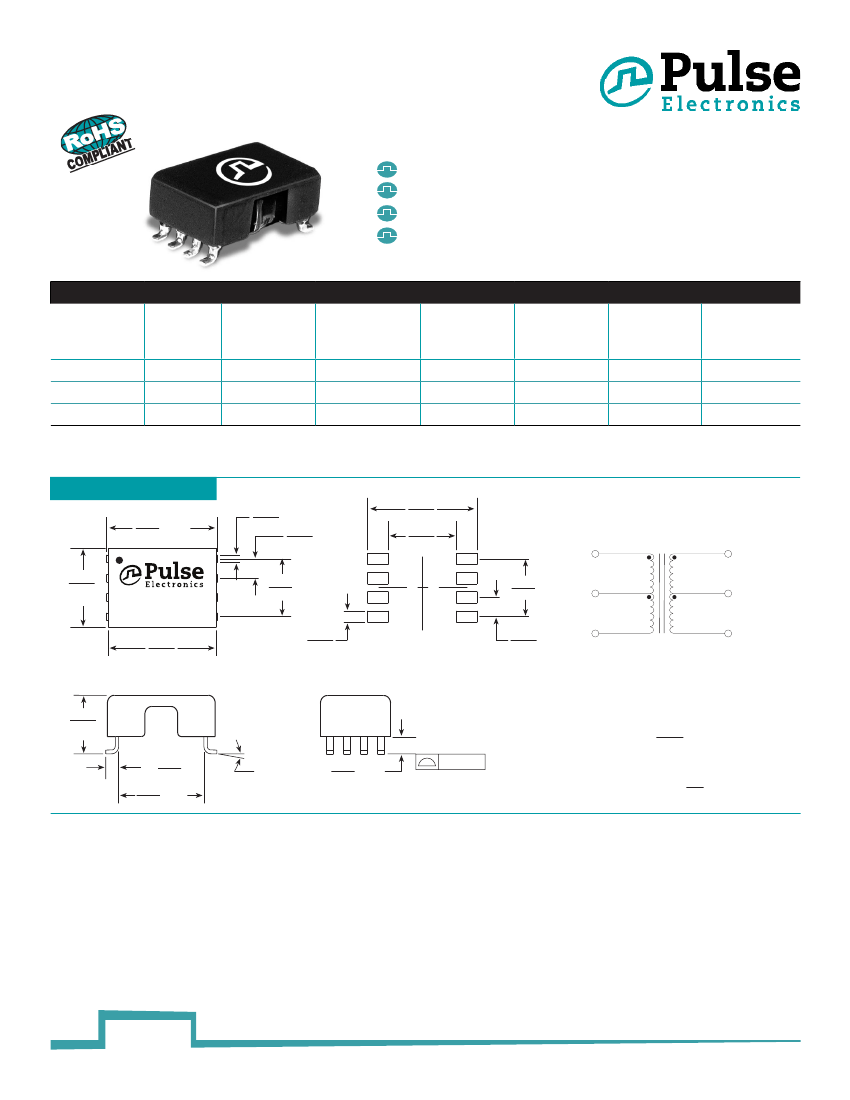

Home Phone Networking

Transformer

Matched to Coppegate’s HPNA3 chipset

Small form factor

For use in Gateways, Set-Top Boxes, and ONTs

Excellent return loss

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

Part

Number

B6104NL

B6105NL

B6106NL

Turns Ratio

(±2%)

(1-4):(5-8)

1:1

1.33:1

1.15:1

Leakage Inductance

Inductance

(@ 100kHz, 0.1Vrms)

(@ 100kHz, 0.1Vrms) (1-4) with (5-8) shorted

100μH MIN

177μH MIN

0.5μH MAX

DC Resistance

(1-4)

0.50Ω MAX

0.60Ω MAX

DC Resistance

(5-8)

0.50Ω MAX

0.40Ω MAX

Interwinding

Capacitance

(@ 100kHz, 0.1Vrms)

20pF MAX

15pF MAX

Isolation

Voltage

(Vrms)

1500

Notes:

Transformers are shipped in tubes, unless Tape & Reel packaging is specified by adding a “T” suffix to the part number (ex: B6104NLT).

Mechanical

B6104NL / B6105NL / B6106NL

.330

8,38

MAX

.020

0,51

.050

1,27

.350

8,89

.230

5,84

1

Schematic

5

.210

5,33

MAX

Date Code

Country of Origin

B6105NL

.150

3,81

.150

3,81

2

6

.315

8,00

.030

0,76

SUGGESTED PAD LAYOUT

.050

1,27

4

8

.157

3,99

MAX

8X

.038

0,96

8X 0 - 8°

.045 REF

1,14

.005/0,13

8 SURFACES

Weight

......................0.2 grams

Tape & Reel

...................95/reel

Tube

...........................300/tube

Inches

Dimensions:

mm

.249

REF

6,32

Unless otherwise specified,

all tolerances are

±

.010

0,25

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

1

pulseelectronics.com

B891.B (02/12)
