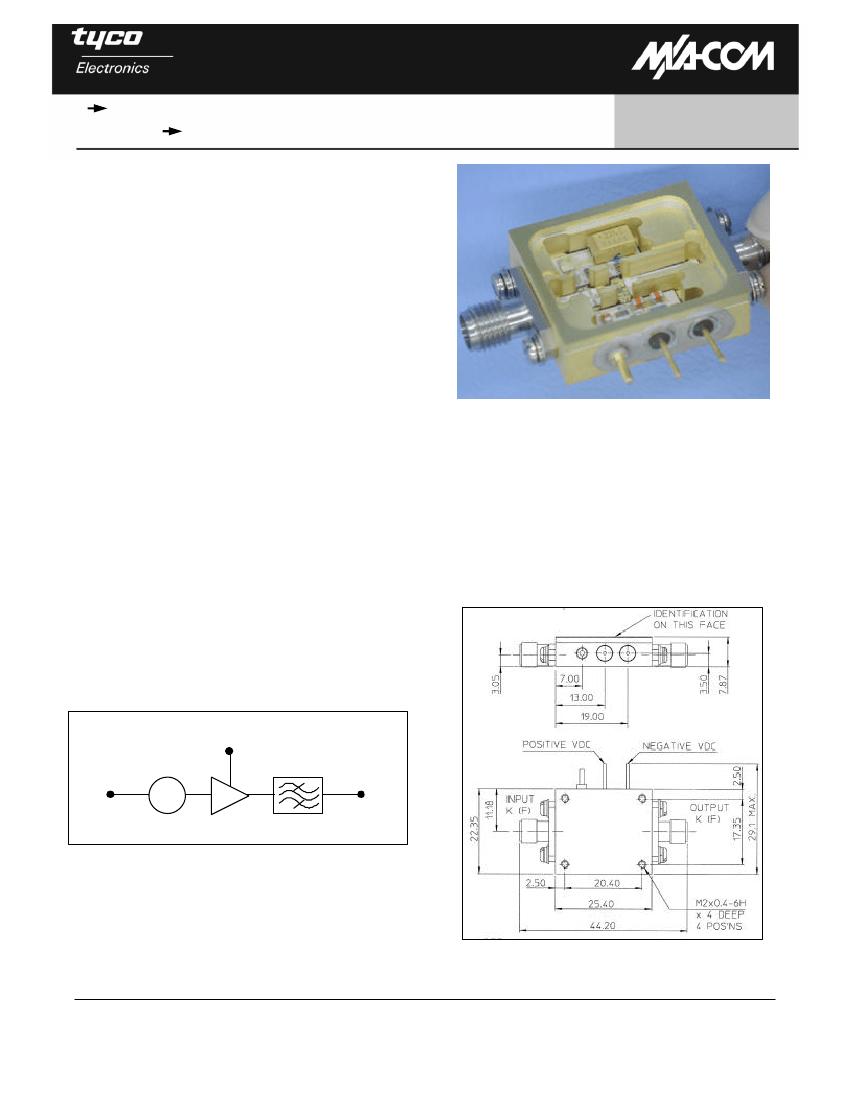

X Ka Band, Connectorised Tripler:
8 – 10 GHz 24 – 30 GHz
Features
•
•
•
•
•
•
•
High Reliability
Weight and space saving design
Field Replaceable K Connectors
Built-in Band Pass Filter
Built-in output amplifier
Built-in power supply protection
Space Qualified version available
MAAMML0019
V4
Description
The MAAMML0019 is a high reliability X
→
Ka band
tripler. This weight and space saving design has
been realised by utilising the latest advances in
housing materials. The unit consists of a tripler
followed by a Ka band amplifier and band pass filter
(BPF.) The amplifier restores output signal strength.
The BPF reduces out of band products.
Additionally, built-in circuitry ensures that power
supply sequencing can be any order, for both
power-up and power-down.
Alternative frequency ranges, gain, output powers
and supply rail configurations are available. The
MAAMML0019 is also available as a space qualified
version. Please contact the factory for details.
Mechanical
This device is supplied with field replaceable ‘K’
connectors. It is hermetically sealed, with a
gold-plated finish to MIL-G-45204.
Functional Block Diagram
DC Supply
RF Input
RF Output
X3
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
X Ka Band, Connectorised Tripler:
8 – 10 GHz 24 – 30 GHz
Specification at +25 °C
MAAMML0019
V4
(Applies over the frequency range @ +25 °C, output and input load impedance of 50 ohms.
Unless otherwise stated limits & conditions are indicated values.)
Parameter
Input Frequency
Output Frequency
Operating Temperature T
OP
Input power range
Conversion gain (nominal)
Passband flatness
Spurious
Harmonics
Input VSWR
Output VSWR
Value
8-10
24-30
+0
∼
+50
+13
∼
+18
+3
6
-65
-20
2.5:1
2:1
DC Supply Positive Rail
Supply Voltage
Current consumption
+7
350
DC Supply Negative Rail
Supply Voltage
Current consumption
-6.5
10
V
mA
V
mA
Units
GHz
GHz
°C
dBm
dB
dB pk-pk
dBc
dBc
Ratio
Ratio
2
