LF05A010L27QY: DescriptionSNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size191KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

LF05A010L27QY Overview

SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT

LF05A010L27QY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	STAINLESS LEVER
body width	6.48 mm
body height	10.52 mm
Body length or diameter	21.21 mm
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	250 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	LF
Installation features	PANEL MOUNT
Maximum operating force	0.1 N
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

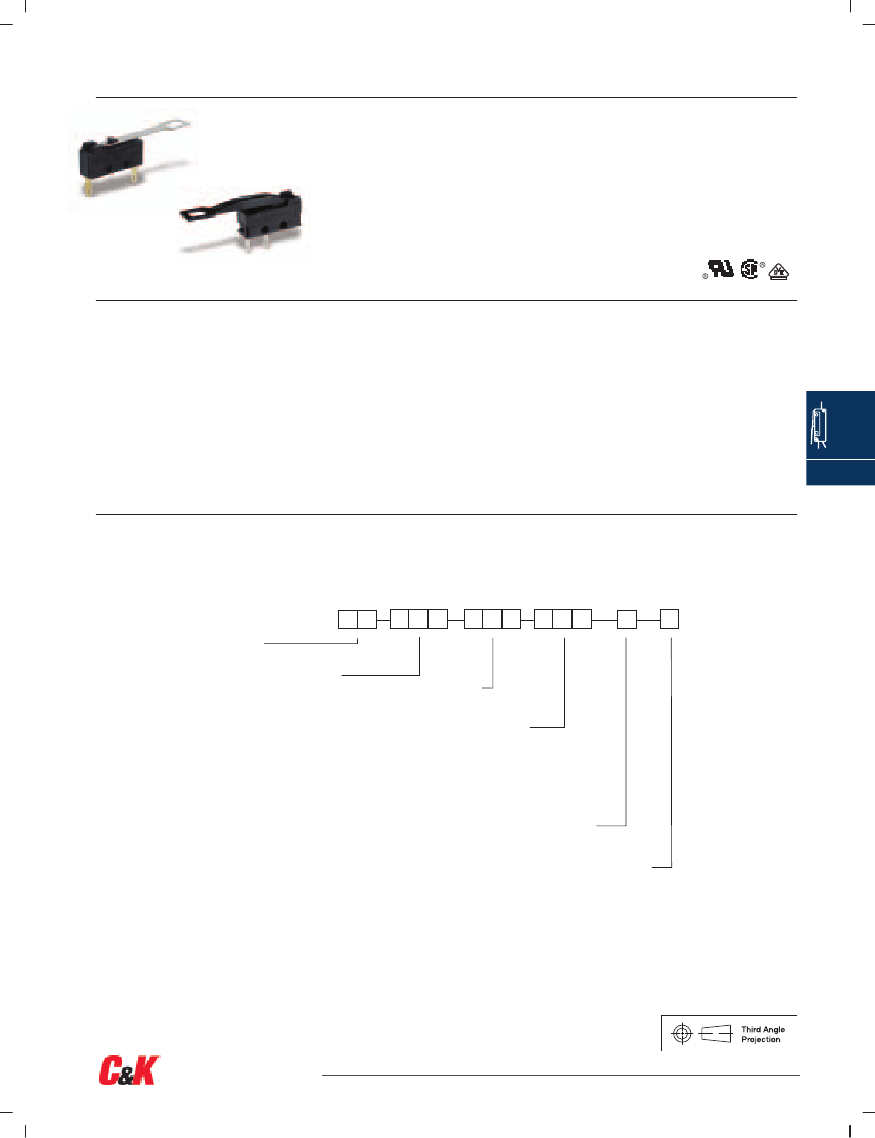

LF Series

Reset Switch

Features/Benefits

•

Low operating force

•

Long life

•

Compact design

•

High electrical ratings

Typical Applications

•

Pumps

•

Furnace controls

Specifications

CONTACT RATING: See chart on next page

ELECTRICAL LIFE: 100,000 cycles at 5 Amps @ 250

INSULATION RESISTANCE: 1,000 Meg Ohms Min.

DIELECTRIC STRENGTH: 1,000 V RMS min. @ sea

OPERATING TEMPERATURE: -40 C to 95 C

OPERATING FORCE: see chart on next page

MOUNTING: 2-56 screws, torque 2.3 in/ lbs max (not included)

Materials

SWITCH HOUSING: 6/6 nylon or PBT 94V0

ACTUATOR BUTTON: Thermoset 05A option only

SPRING: Stainless steel 05B option

MOVABLE CONTACT: Fine silver

STATIONARY CONTACT: Fine silver on copper alloy

LEVER: 05A option stainless steel

05B option PBT 94V0

J

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on page J-64 thru J-65. For additional options not shown in catalog, consult Customer Service Center.

L

Series

LF

Electrical Rating

05A

(see chart next page)

05B

(see chart next page)

F

0

5

0

Q

Y

Operating Force

080

0.53 oz / 15 grams max.

010

0.35 oz. / 10 grams max.

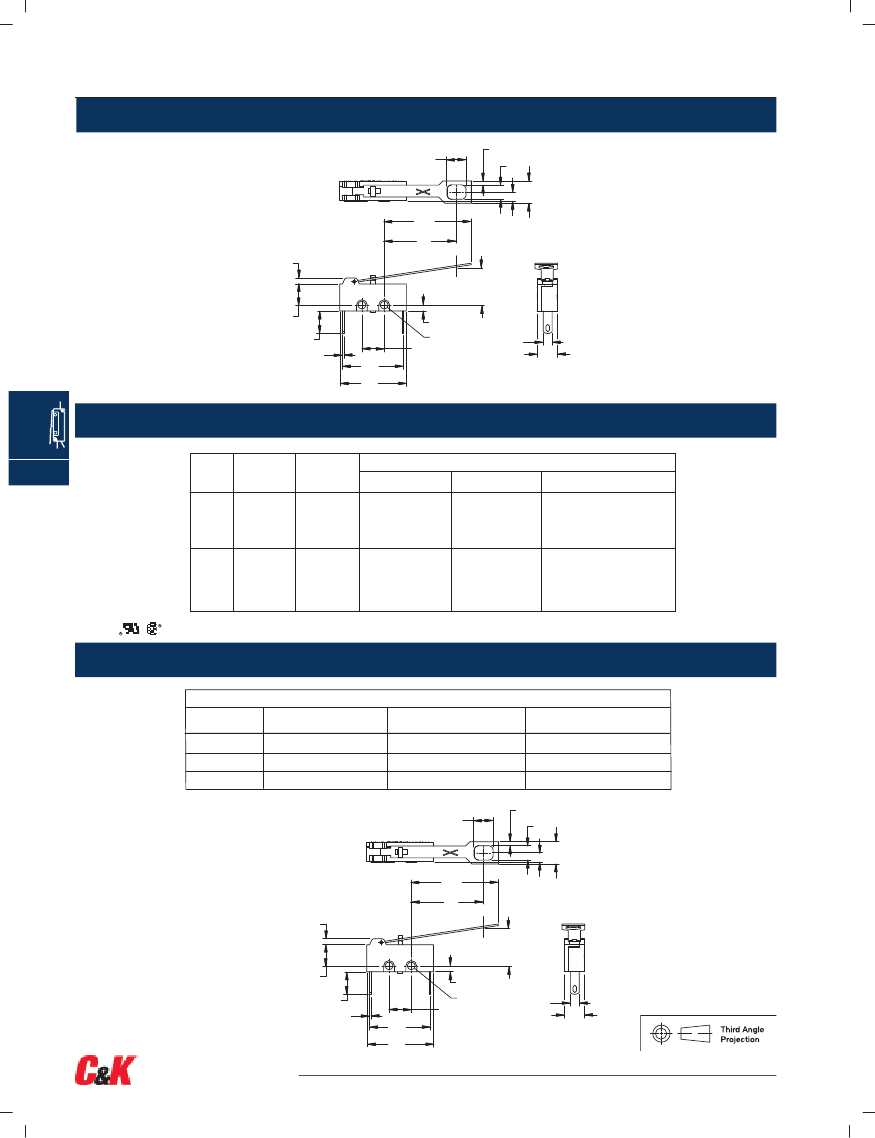

Actuator

L27

1.078 (27,39) Stainless lever

(option 05A only)

P27

1.078 (27,39) Plastic lever

(option 05B only)

P40

1.591 (40,41) Plastic lever

(option 05B only)

Terminations

Q

.110

quick connect

Circuitry

Y

N.O.

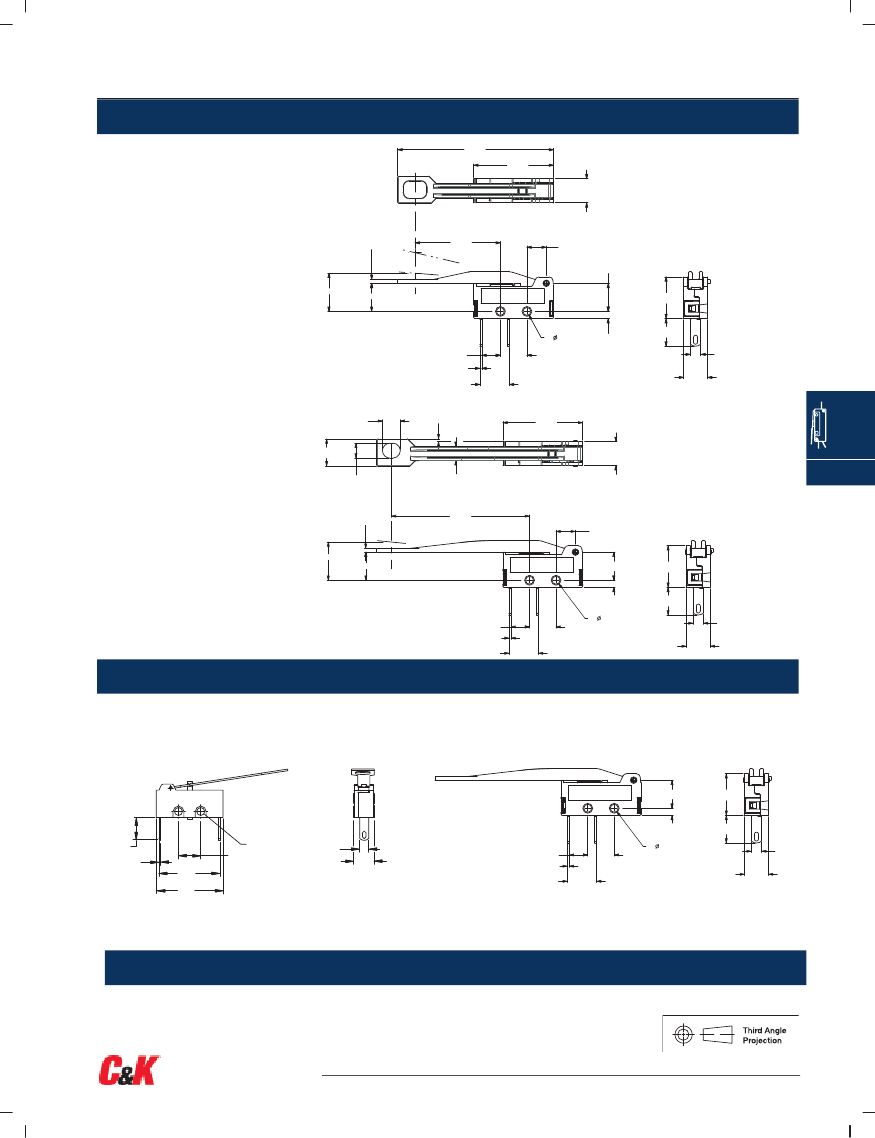

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

J–63

www.ck-components.com
