MTN4118-AHR-A - Segment Displays
SELECTOR GUIDE
Part Number
Dice
Surface Color / Epoxy Color
Pack Type
View Angle 2θ
1/2
MTN4118-AHR-A
Orange Red
Red / Red
1.80 in.
N/A
ELECTRICAL / OPTICAL CHARACTERISTICS AT T A=25°C
Parameter
Symbol
Emitting Color
Min.
Typ.
Max.
Units
Test Conditions
Forward Voltage
Reverse Current
Luminous Intensity
Peak Wavelength
Dominant Wavelength
Spectral Line Half-Width
VF
IR
IV
λpeak
λD
∆λ1/2
Orange Red
Orange Red
Orange Red
Orange Red
Orange Red
Orange Red
-
-
2.10
-
-
-
6.30
-
5.20
635
626
35
7.80
100
-
-
-
-
V
μA
mcd
nm
nm
nm
20mA
5V
10mA
20mA
20mA
20mA
ABSOLUTE MAXIMUM RATINGS AT TA=25°C
Parameter
Rating
Units
Forward Current ( IF )
Power Dissipation ( PD )
Reverse Voltage ( VR )
Operating Temperature ( T OPR )
Storage Temperature ( TSTG )
Lead Solder Temperature ( T SOL )
1. All Dimensions Are In Millimeters (inches).
2. Tolerance Is +-0.25(0.01") Unless Otherwise Noted.
3. Specifications Are Subject To Change Without Notice.
30
234
5
-25 ~ +85
-40 ~ +100
260 @ for 5 sec. max
mA
mW
V
°C
°C
Marktech Optoelectronics | 3 Northway Lane North | Latham, NY 12110 |
www.marktechopto.com
Page 1 of 3

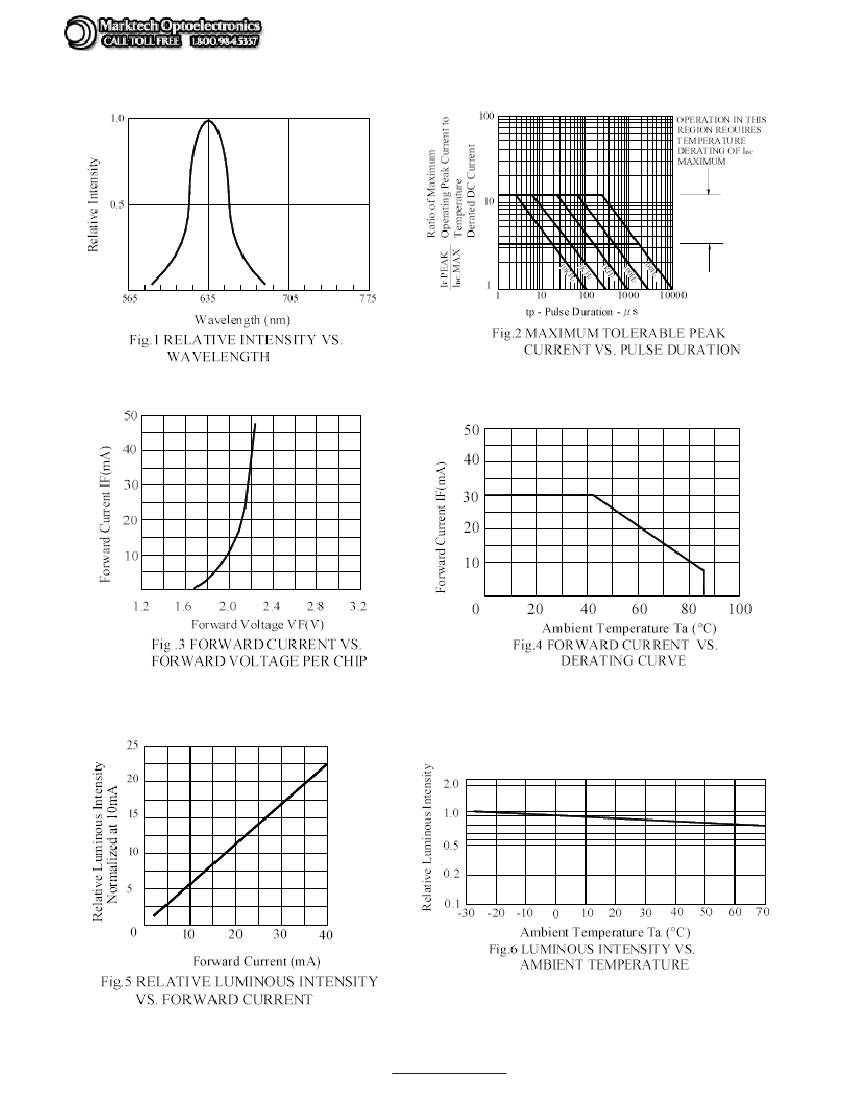

MTN4118-AHR-A - Segment Displays
Marktech Optoelectronics | 3 Northway Lane North | Latham, NY 12110 |
www.marktechopto.com
Page 2 of 3
MTN4118-AHR-A - Segment Displays
Marktech Optoelectronics | 3 Northway Lane North | Latham, NY 12110 |
www.marktechopto.com
Page 3 of 3
