HYM591000CLM-70 datasheet, PDF

Datasheet> All Categories > storage> storage> HYM591000CLM-70

HYM591000CLM-70: DescriptionFast Page DRAM Module, 1MX9, 70ns, CMOS, SIMM-30; Categorystorage storage; File Size298KB，14 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HYM591000CLM-70 Overview

Fast Page DRAM Module, 1MX9, 70ns, CMOS, SIMM-30

HYM591000CLM-70 Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	SIMM
package instruction	SIMM, SIM30
Contacts	30
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N30
memory density	9437184 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	30
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX9
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SIM30
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	20.447 mm
Maximum standby current	0.0018 A
Maximum slew rate	0.675 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	2.54 mm
Terminal location	SINGLE
Base Number Matches	1

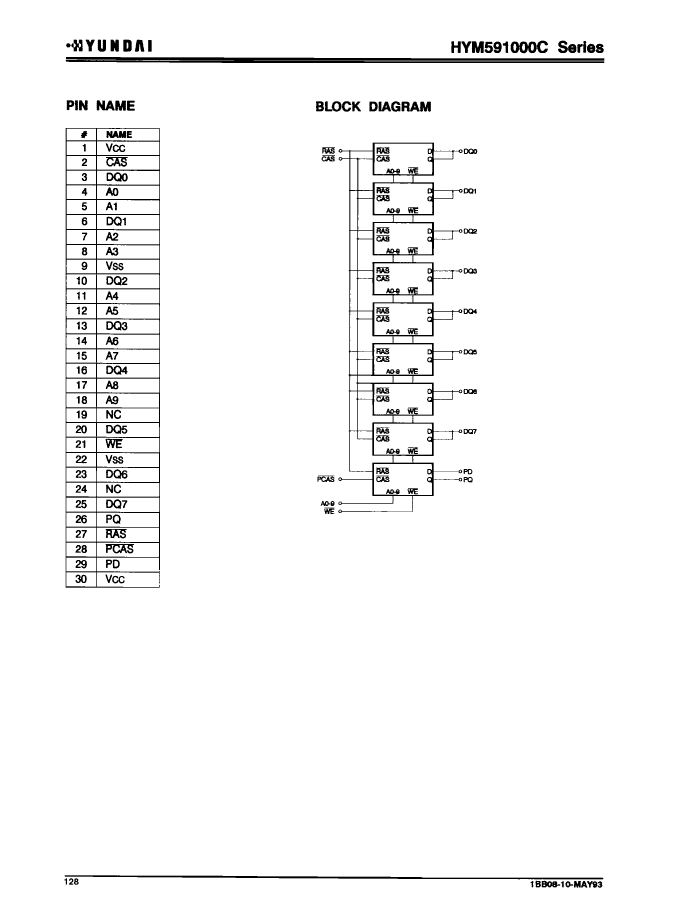

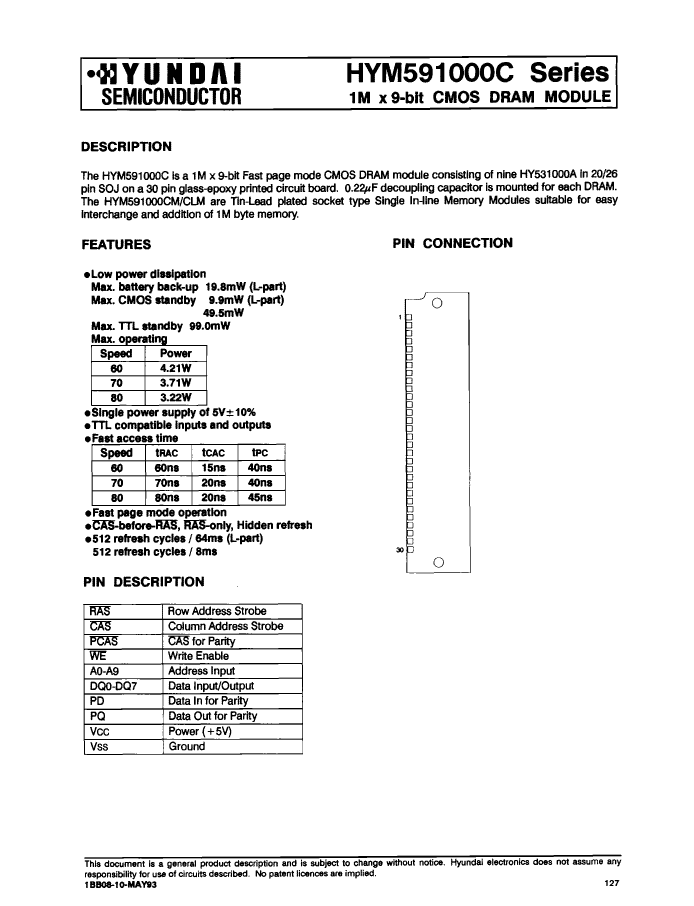

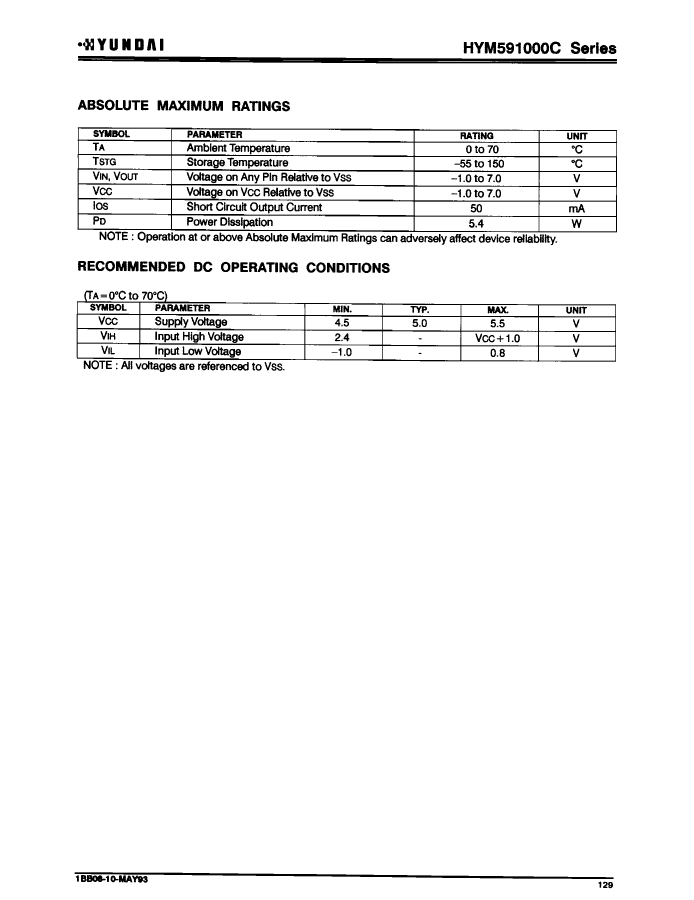

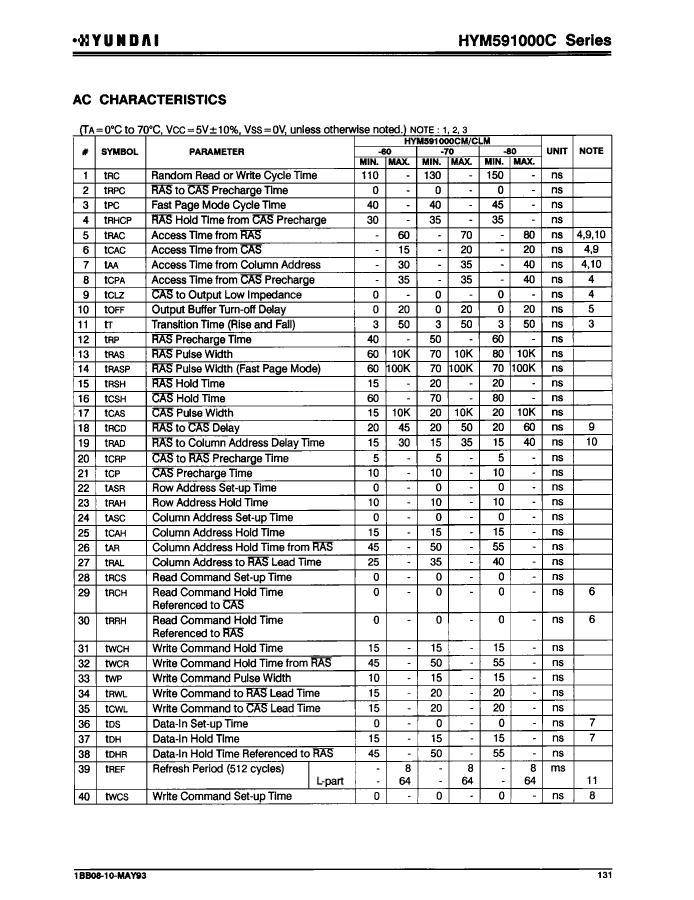

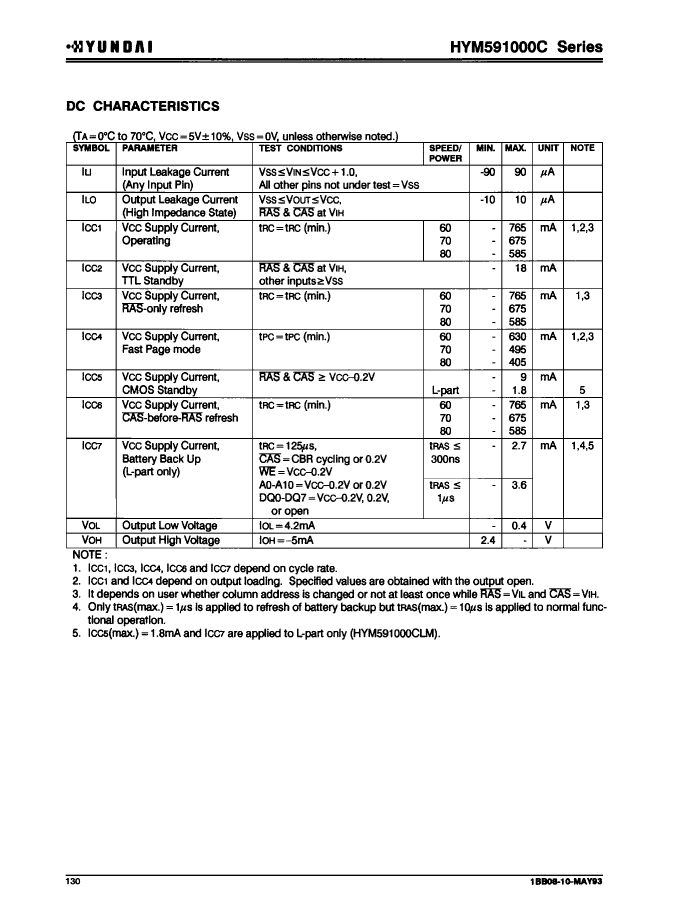

Preview

Download Datasheet

View All

HYM591000CLM-70 Related Products

	HYM591000CLM-70	HYM591000CLM-60	HYM591000CLM-80	HYM591000CM-70	HYM591000CM-60	HYM591000CM-80
Description	Fast Page DRAM Module, 1MX9, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 80ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 80ns, CMOS, SIMM-30
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
package instruction	SIMM, SIM30	SIMM, SIM30	SIMM, SIM30	SIMM, SIM30	SIMM, SIM30	SIMM, SIM30
Contacts	30	30	30	30	30	30
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	80 ns	70 ns	60 ns	80 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30
memory density	9437184 bit	9437184 bit	9437184 bit	9437184 bit	9437184 bit	9437184 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	30	30	30	30	30	30
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX9	1MX9	1MX9	1MX9	1MX9	1MX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SIM30	SIM30	SIM30	SIM30	SIM30	SIM30
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512	512	512
Maximum seat height	20.447 mm	20.447 mm	20.447 mm	20.447 mm	20.447 mm	20.447 mm
Maximum standby current	0.0018 A	0.0018 A	0.0018 A	0.009 A	0.009 A	0.009 A
Maximum slew rate	0.675 mA	0.765 mA	0.585 mA	0.675 mA	0.765 mA	0.585 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
