LPD5030-223MSC

Description
General Purpose Inductor, 22uH, 20%, 2 Element, Ferrite-Core, SMD, CHIP, 5050-30M
CategoryPassive components    inductor
File Size175KB,3 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Download Datasheet Parametric View All

LPD5030-223MSC Overview

General Purpose Inductor, 22uH, 20%, 2 Element, Ferrite-Core, SMD, CHIP, 5050-30M

LPD5030-223MSC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerCOILCRAFT
package instruction2020
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes2020
structureRectangular
core materialFERRITE
DC Resistance0.452 Ω
Nominal inductance(L)22 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Number of functions2
Number of terminals4
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package height2.9 mm
Package length4.8 mm
Package formSMT
Package width4.8 mm
method of packingTR, Embossed Plastic, 7 Inch
Maximum rated current0.99 A
self resonant frequency17 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal locationDUAL IN-LINE
Terminal shapeONE SURFACE
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1
Document 757-1

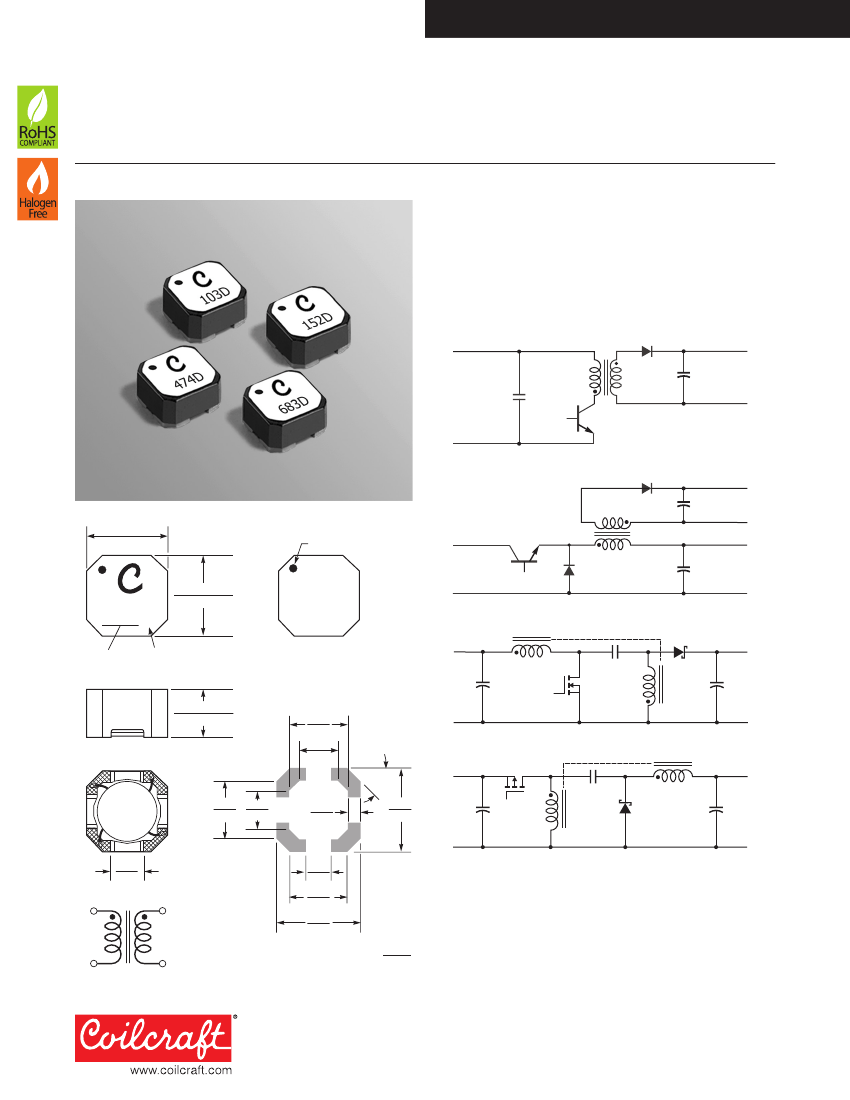

Coupled Inductors

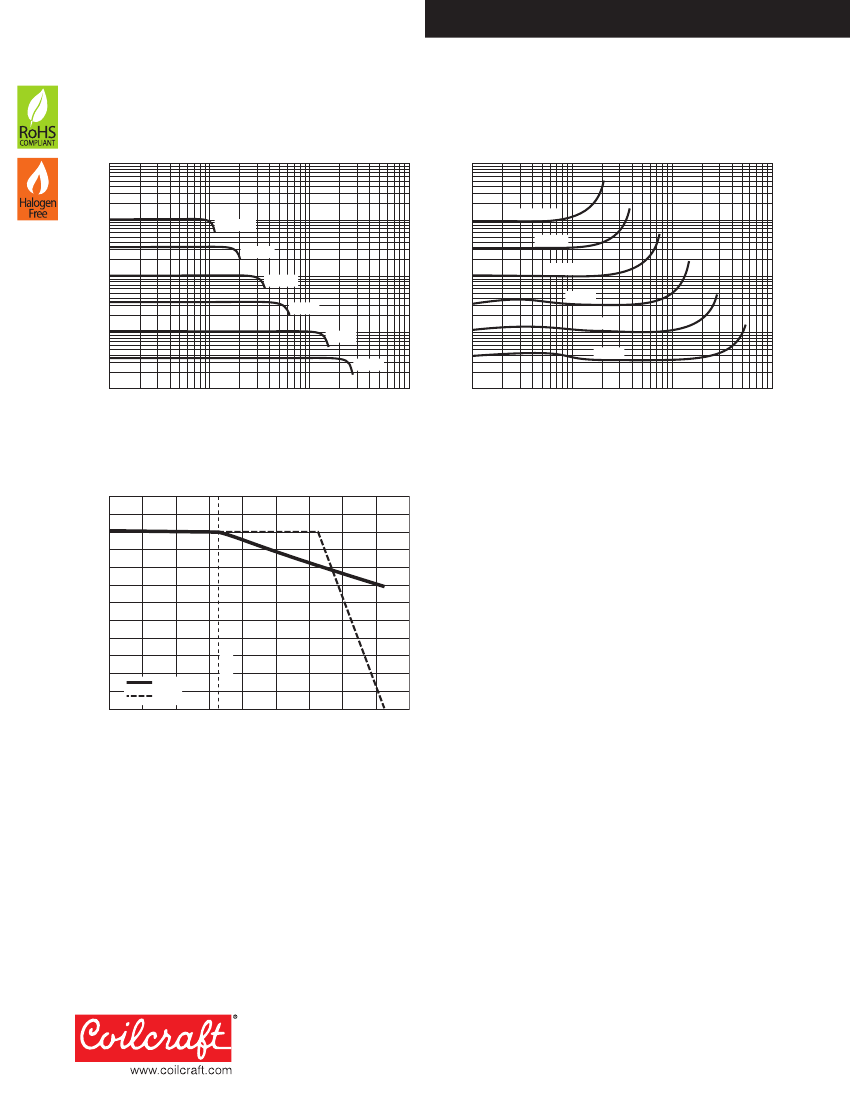

LPD5030
For Flyback, SEPIC, Zeta
and other Applications
The LPD5030 coupled miniature shielded inductors are
only 3 mm high and 5 mm square. They are ideal for
use in a variety of circuits including flyback, multi-output
buck and SEPIC.
These inductors provide high inductance, high efficiency
and excellent current handling in a rugged, low cost part.
They can also be used as two single inductors connected
in series or parallel or as a common mode choke.
+
D
+
L1
V
IN
C
SW
L2
C
V
OUT
Typical Flyback Converter
+
C
V
OUT
AUX
L2
0.189 ±0.003
4,80 ±0,076
1
4
D
Dot indicates pin 1
+
V
IN
SW
D
+
L1
C
V
OUT
2
XXX X
Dash
number
0.189 ±0.003
4,80 ±0,076
3
Typical Buck Converter with auxiliary output
+
L1
C1
Q
D
Internal
code
+
C
V
OUT
0.114 ±0.004
2,90 ±0,10
Recommended
Land Pattern
0.138
3,50
0.090
2,30
45°
typ
V
IN
C
L2
Typical SEPIC schematic
+
Q
V
IN
+
C1
L2
D
C
V
OUT
0.134 0.090
3,40 2,30
0.030
0,75
0.197
5,00
C
L1
0.060
1,52
1
L1
2
L2
3
4
0.060
1,50
0.134
3,40
0.197
5,00
Typical Zeta schematic
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 757-1
Revised 06/21/13
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
