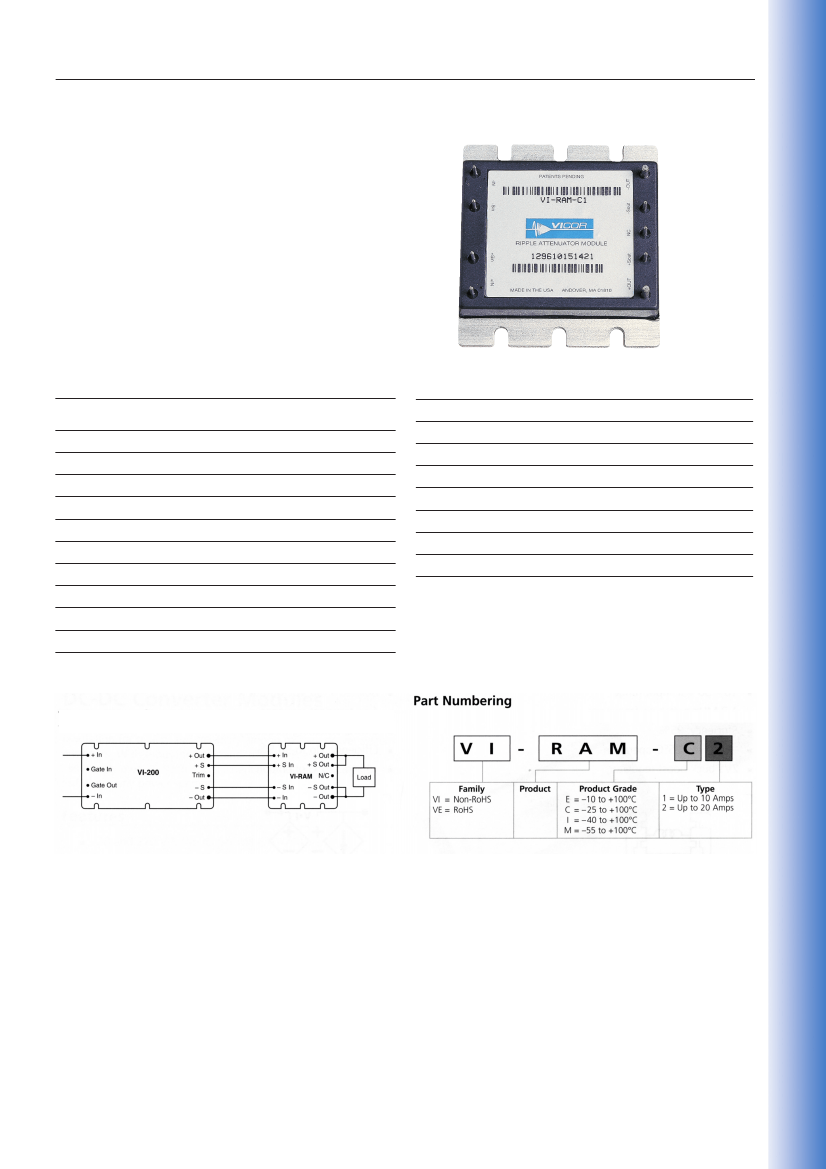

VI RAM Ripple Attenuator Module
F I LT E R
O U T P U T
AT T E N U AT O R
M O D U L E
MODULES
Features
•
•
•
•
•
Reduces output ripple to <3mV pk-pk
Compatible with any VI-200/VI-J00 based
product: 5 to 50VDC output
Full attenuation up to 20 amps
No adjustments required
Converter sense, trim, overvoltage and
-overcurrent retained
Specifications
INPUT
Input voltage range
OUTPUT
Output voltages
Ripple & noise
Output current max.
OPERATING
Efficiency
93%–99%
5–50VDC
VI-2: 3mV pk-pk VI-J: 10mV pk-pk
20A
5–50VDC
PRODUCT GRADE
Product Grade
E-Grade
C-Grade
I-Grade
M-Grade
Baseplate Operating Temperature
-10°C to +100°C
-25°C to +100°C
-40°C to +100°C
-55°C to +100°C
STANDARDS AND APPROVALS
C-Tick
AS/NZS CISPR11 Group 1 Class A
Converter sense, trim, overvoltage and current limit retained.
MECHANICAL
PCB mounting package
58x61x13mm
Typical Configuration
Not for design use; see data sheet.
Your dependable power partner – www.powerbox.com.au
245
