VI-2T2-IX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> VI-2T2-IX

VI-2T2-IX: Description1-OUTPUT 75 W DC-DC REG PWR SUPPLY MODULE; Categoryaccessories; File Size520KB，2 Pages; ManufacturerPowerbox; Websitehttps://www.powerbox.com

Download Datasheet View All

VI-2T2-IX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VI-2T2-IX	-	-	View	Buy Now

VI-2T2-IX Overview

1-OUTPUT 75 W DC-DC REG PWR SUPPLY MODULE

Preview

Download Datasheet

View All

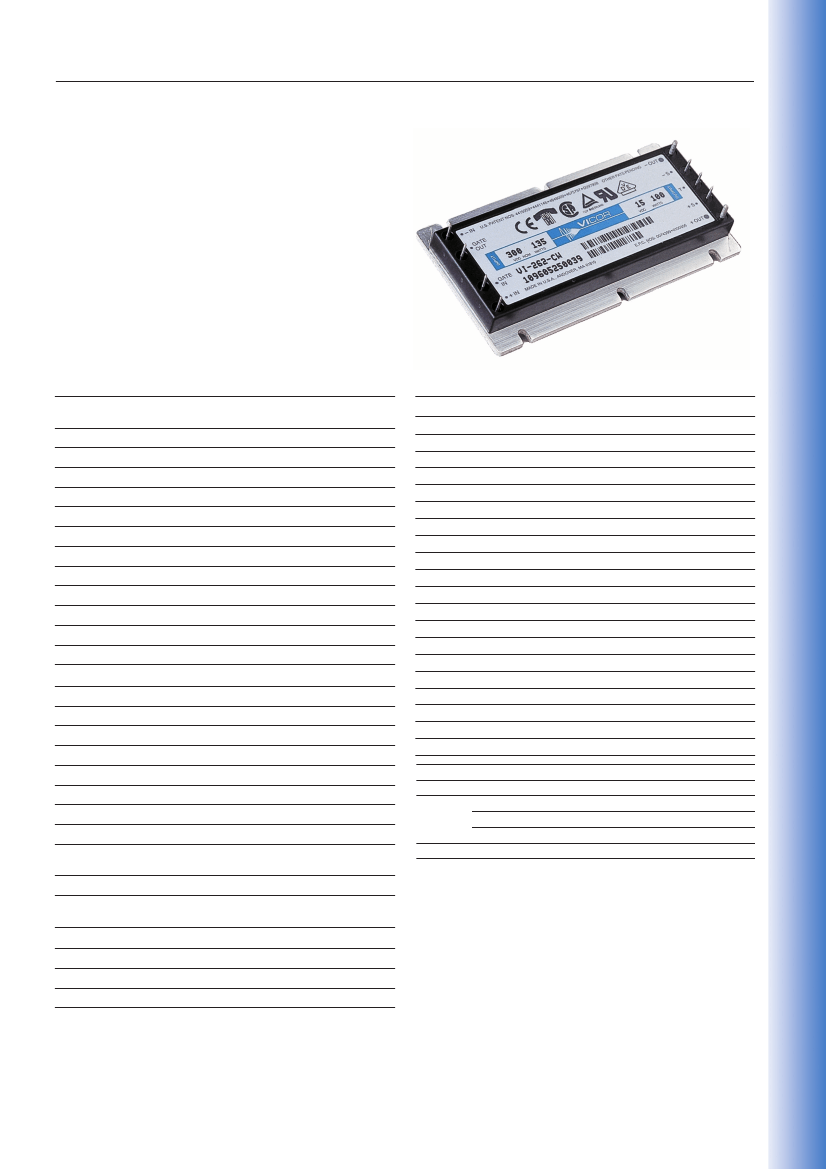

VI 200

5 0 - 2 0 0 W

P C B

M O U N T I N G

C O M P O N E N T S

MODULES

Features

•

Inputs: 10 to 400VDC

Output, 1 to 95VDC

UL, CSA, TÜV, VDE, BABT, CF

80–90% efficiency (typical)

ZCS power architecture

Low noise FM control

Booster versions available for expanded power

Specifications

INPUT

Input voltage

OUTPUT

PRODUCT GRADE

Output voltage

Output power

Set point accuracy

Low–high trim voltage

Output ripple pk-pk

Load regulation

Line regulation

OVP set point

Current limit setting

E, C, I, M

See table

0.5%

50%–110%

0.05%

115%–135%

105%–125%

See table

Selection Table

A = INPUT VOLTAGE

B = OUTPUT VOLTAGE

Nominal

Range Notes

0= 12V

10–20V (1)

Z = 2V

2 = 15V

1= 24V

21–32V (6)

Y = 3.3V

N = 18.5V

W= 24V

18–36V (4)

0 = 5V

3 = 24V

2= 36V

21–56V (3)

X = 5.2V

L = 28V

3= 48V

42–60V (6)

W = 5.5V

J = 36V

N= 48V

36–76V (6)

V = 5.8V

K = 40V

4= 72V

55–100V (6)

T = 6.5V

4 = 48V

T= 110V

66–160V (4)

R = 7.5V

H = 52V

5= 150V

100–200V (5)

M = 10V

F = 72V

6= 300V

200–400V (6)

1 = 12V

D = 85V

7= 150/300V 100–375V (2)

P = 13.8V

B = 95V

C = PRODUCT GRADE D = OUTPUT POWER/CURRENT

V out

≥

V out <5V

E= -10°C to +85°C

Y= 50W

Y= 10A

C= -25°C to +85°C

X= 75W

X = 15A

I= -40°C to +85°C

W= 100W

W = 20A

M= -55°C to +85°C

V= 150W

V = 30A

U= 200W

U = 40A

NOTES:

(2)

(3)

(4)

(5)

(6)

NOTES: Maximum Output for —

(1)

5V Outputs

75W 75W* 100W 150W 150W 200W

>5V Outputs

75W 100W 100W 150W 200W 200W

<5V Outputs

15A 20A 20A 30A 40A 40A

*100W @ 5V (20A), 300V input only.

Remote sense Compensation0.5V

OPERATING

MTBF

Efficiency

Isolation input – output

Baseplate operating temp.

Shutdown temperature

Thermal shutdown

ENVIRONMENTAL

Cooling

External cooling often required, consult sales

office

UL1950, CSA C22.2 No. 950, TÜV IEC950,

EN60950, VDE 0805

AS/NZS CISPR11 Group 1 Class A

>1,000,000 hrs

80%–90%

3750V rms

85°C

95°C

Yes, C, I, M grades

STANDARDS AND APPROVALS

Safety

C-Tick

MECHANICAL

Dimensions

PCB mounting

117x61x12.7mm

Yes

Selection Table Guide

VI - 2 [a] [b] - [c] [d]

VI - B [a] [b] - [c] [d] Booster

Note: For RoHS version replace VI with VE.

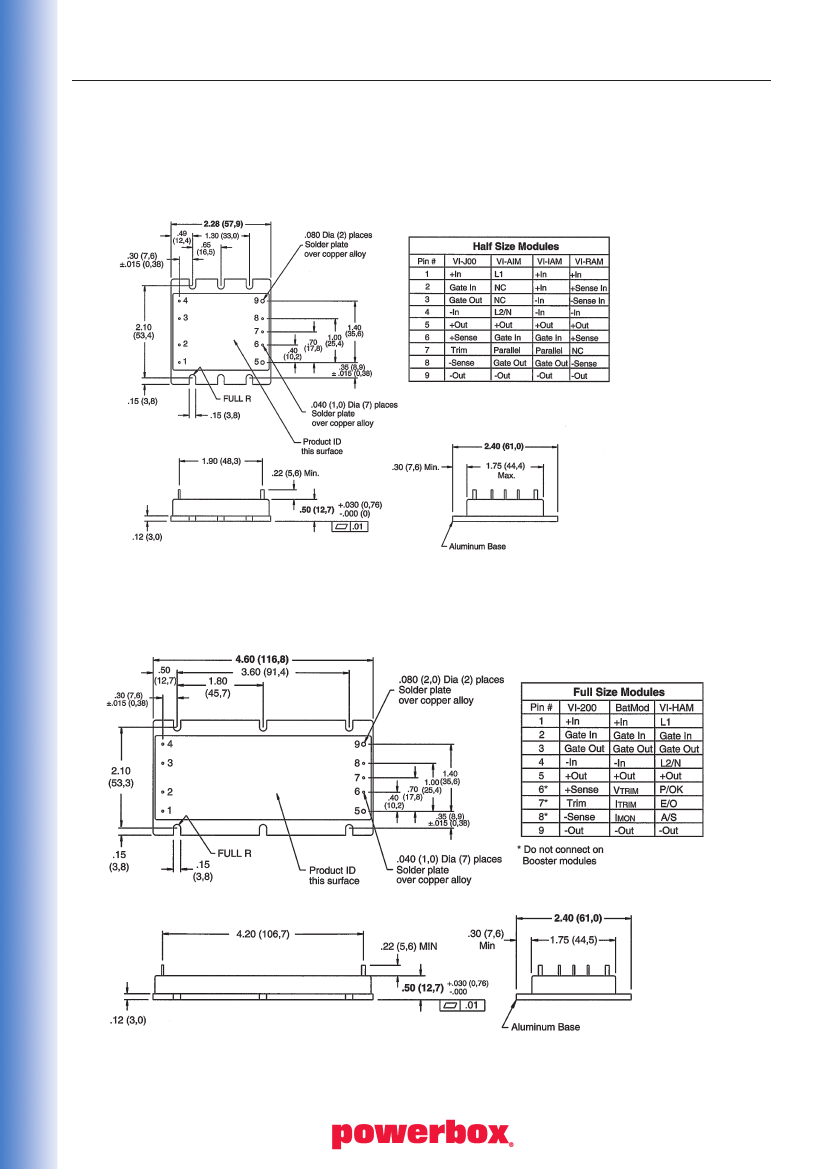

Mechanical Drawings See page 230

Your dependable power partner – www.powerbox.com.au

229
