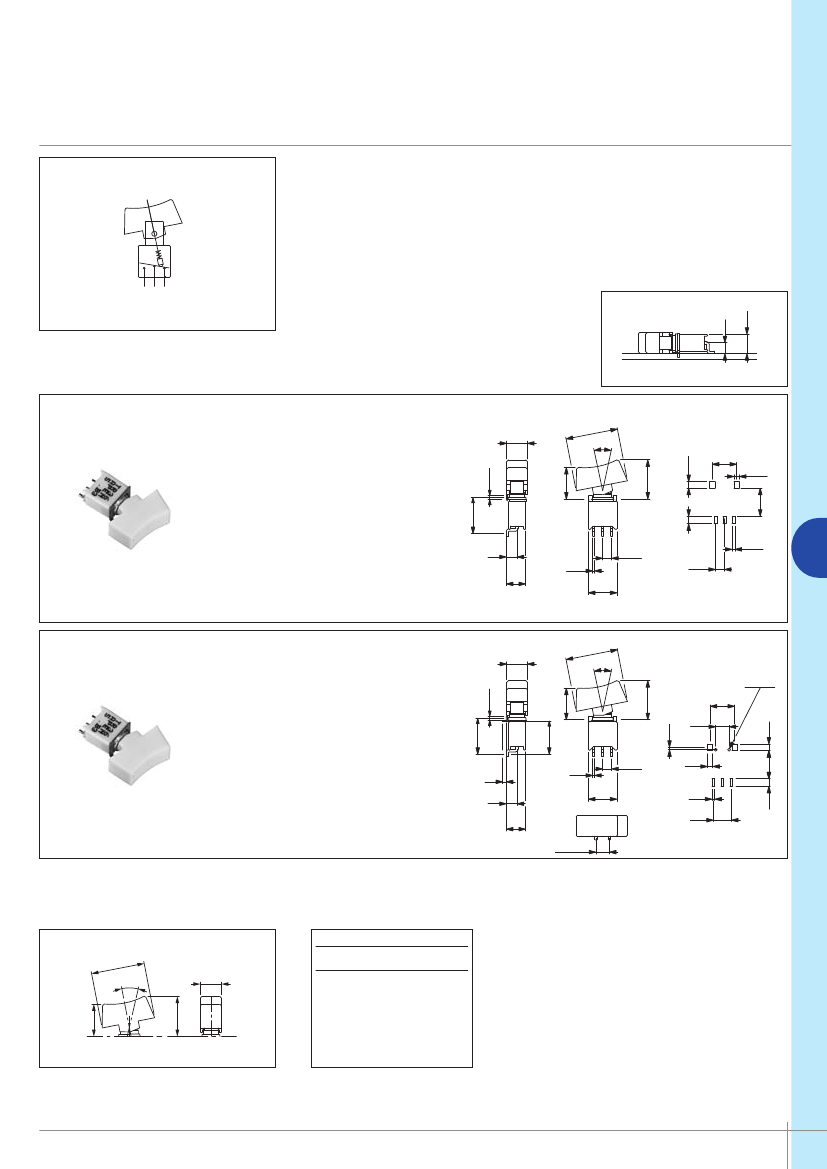

SMT TR series
Surface mount tiny washable rocker switches
Distinctive features and specifications
❑
Entirely designed for surface mount
❑
Tape and reel packaging
❑
Reflow solderable
•
High temperature plastic materials
• Tin plated ground plate
• Terminal coating : tin alloy over nickel plating
• Terminals turned to the outside, preventing the shadow effect in infrared soldering
and permitting visual inspection of solder joints
• Distance between case and circuit : 0,55 mm (.021)
• End stackable with 10,16 mm (.40) pitch
•
Available with positioning pins to ensure switch orientation during the reflow
process and increasing switch mechanical resistance
❑
Protected against electrostatic discharges (ESD) up to 10 KV
❑
Washable
ELECTRICALSPECIFICATIONS
PACKAGING
Construction withstands cleaning processes, including hot water under pressure

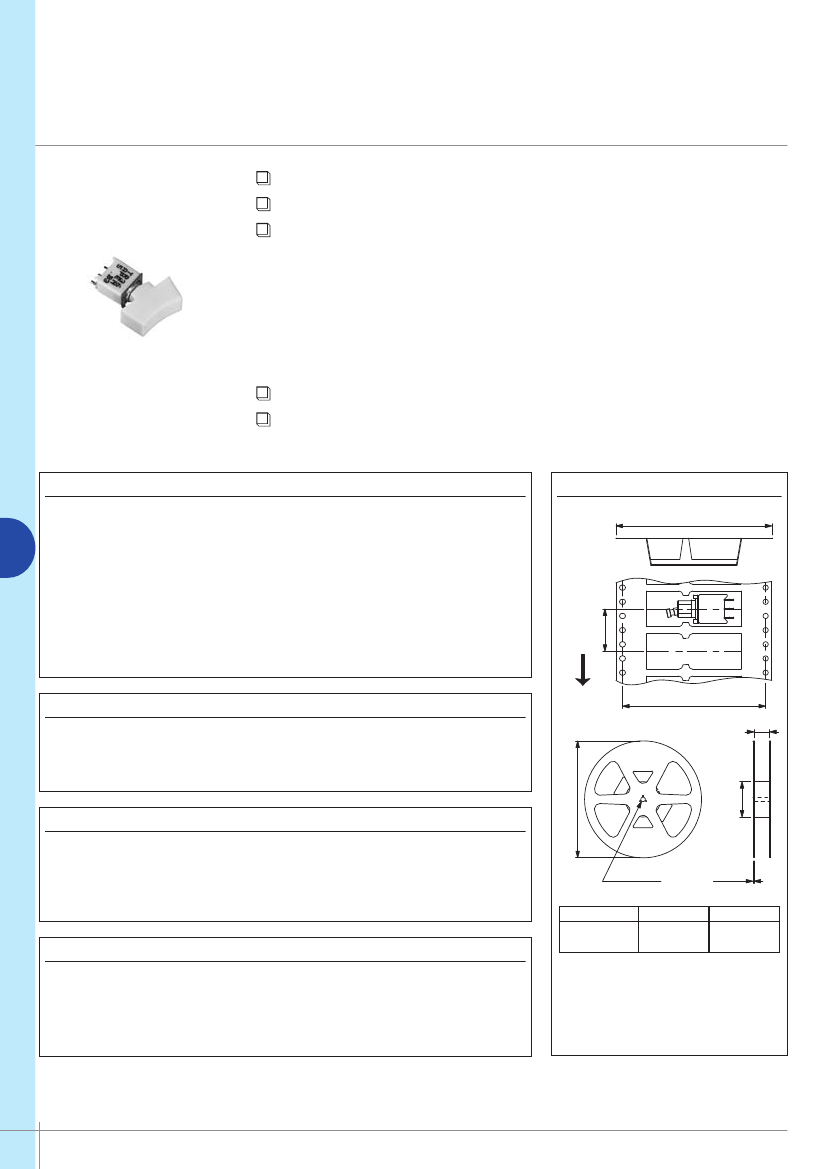

Unrolling direction
D
• Max. current/voltage rating with resistive load :
0,4VA 20V max. AC or DC
• Minimum load : 10mA 50mV or 10µA 5VDC
• Initial contact resistance : 20 mΩ max
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 1.000 Vrms. 50 Hz min. between terminals and frame
500 Vrms. 50 Hz min. between terminals
• Electrical life at full load :
- 2 position switches : 60.000 cycles
- 3 position switches : 30.000 cycles
• Static resistance : 10 KV (Schaffner equipment)
GENERALSPECIFICATIONS
44.00±0.30
(1.732±.011)
12.00
(.472)
40.40±0.10
(1.590±.003)
Ø360.00 Maxi
(14.173 DIA MAX)
MATERIALS
• Case : high temperature plastic material UL94-V0
• Actuator : high temperature plastic rocker
• Ground plate and positioning pins : steel, tin plated
• Contacts : brass, gold plated
• Terminals : brass, with pure tin plating over nickel barrier
SOLDERINGANDCLEANING
Ø13.00±0.25
(.511 DIA±.009)
3.00
(.118)
Tape width
Reel
(dimension A)
24.00 (.944)
24.40+2.00/0.00
(.960+.078/.000)
44.00 (1.732)
44.40+2.00/0.00
(1.748+.078/.000)
• Reflow soldering : infrared, vapor phase or infrared convection
• Washable per IEA-RS448-2 :
- water + detergent - preferred
- solvents
• Further information on reflow soldering : see end of catalogue.
Dimensions
: First dimensions are in mm while inches are shown as bracketed numbers.
Standard packaging unit
: 700 pieces
Tape meeting international standard IEC -
Publication 286-3 (EIA481A)
Start leader : 400 mm min.
D-2
www.apem.com
Ø100.00 mini
(3.937 DIA MIN)
• Operating temperature : -40°C to +85°C
• Moisture resistance : 21days per IEC 512-6 test 11c
• Vibration resistance : 10-500 Hz / 10 g per IEC 512-4 test 6d
• Shock resistance : 50 g per IEC 512-4 test 6c
A
