UDN2588A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> UDN2588A

UDN2588A: DescriptionBuffer/Inverter Based Peripheral Driver, 0.5A, PDIP20, PLASTIC, DIP-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size275KB，12 Pages; ManufacturerSANKEN; Websitehttp://www.sanken-ele.co.jp/en/

Download Datasheet Parametric Compare View All

UDN2588A Overview

Buffer/Inverter Based Peripheral Driver, 0.5A, PDIP20, PLASTIC, DIP-20

UDN2588A Parametric

Parameter Name	Attribute value
Maker	SANKEN
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Built-in protection	TRANSIENT
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T20
length	25.908 mm
Nominal negative supply voltage	-40 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Output current flow direction	SOURCE
Nominal output peak current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.334 mm
Nominal supply voltage	5 V
surface mount	NO
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Disconnect time	5 µs
connection time	5 µs
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

2580, 2585,

AND

2588

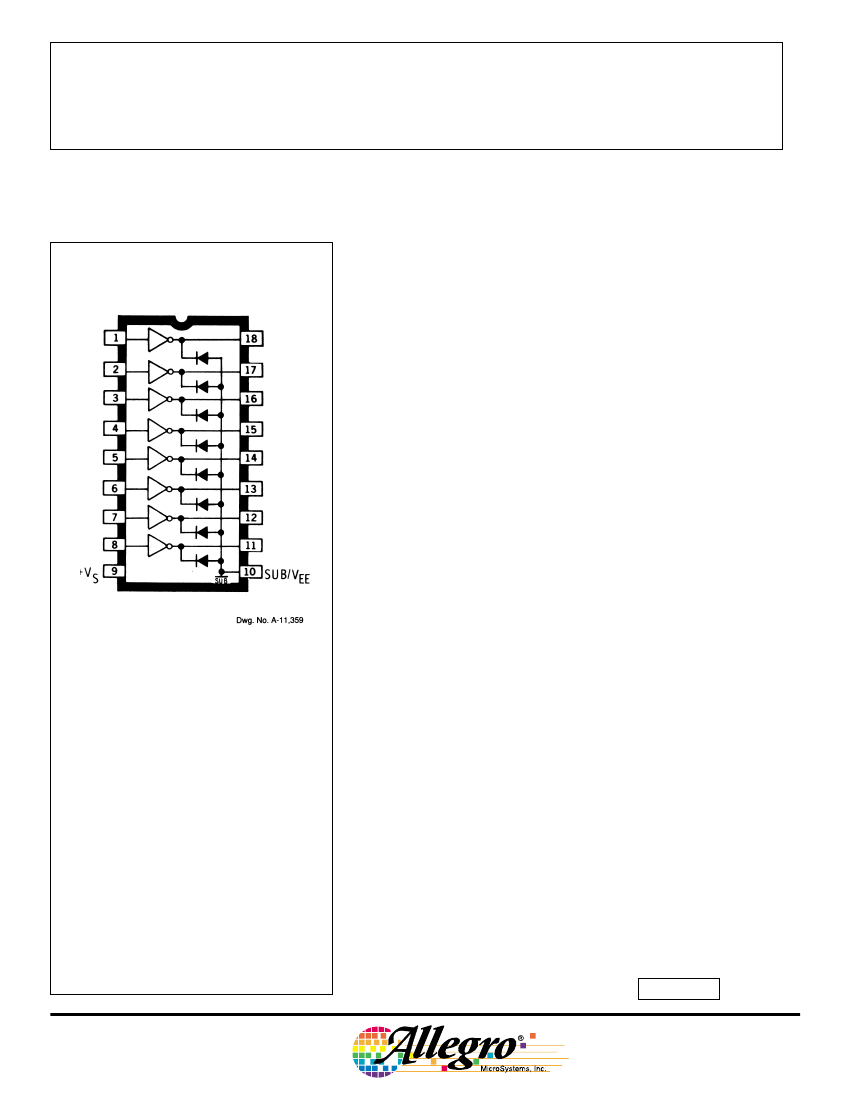

8-CHANNEL SOURCE DRIVERS

UDN2580A and UDN2585A

This versatile family of integrated circuits will work with many combina-

tions of logic- and load-voltage levels, meeting interface requirements beyond

the capabilities of standard logic buffers. Series UDN2580A and A2580SLW

source drivers can drive incandescent, LED, or vacuum fluorescent displays.

Internal transient-suppression diodes permit the drivers to be used with

inductive loads such as relays, solenoids, dc and stepping motors, and mag-

netic print hammers.

The Types UDN2580A and A2580SLW are high-current source drivers

used to switch the ground ends of loads that are directly connected to a -50 V

supply. Typical loads are telephone relays, PIN diodes, and LEDs.

The UDN2585A and A2585SLW are drivers designed for applications

requiring low output saturation voltages. Typical loads are low-voltage LEDs

and incandescent displays. The eight non-Darlington, 25 V outputs will

simultaneously sustain continuous load currents of -120 mA at ambient

temperatures to +70°C.

The UDN2588A and A2588SLW have separate logic and driver supply

lines. Their eight drivers can serve as an interface between positive logic

(TTL, CMOS, PMOS) or negative logic (NMOS) and either negative or split-

load supplies to -80 V.

These drivers are packaged in plastic DlPs (suffix A) or surface-mount-

able wide-body SOlCs (suffix LW), and are rated for operation over the

temperature range of -20°C to +85°C.

Data Sheet

29316C†

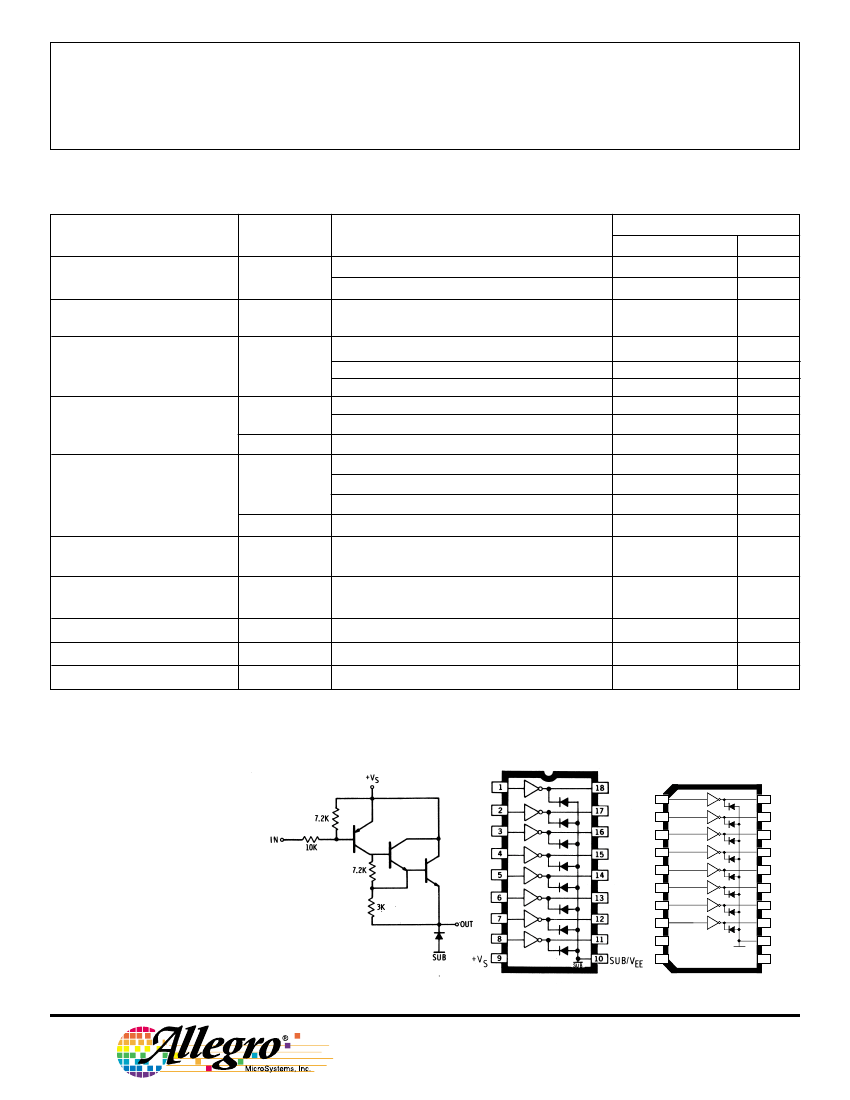

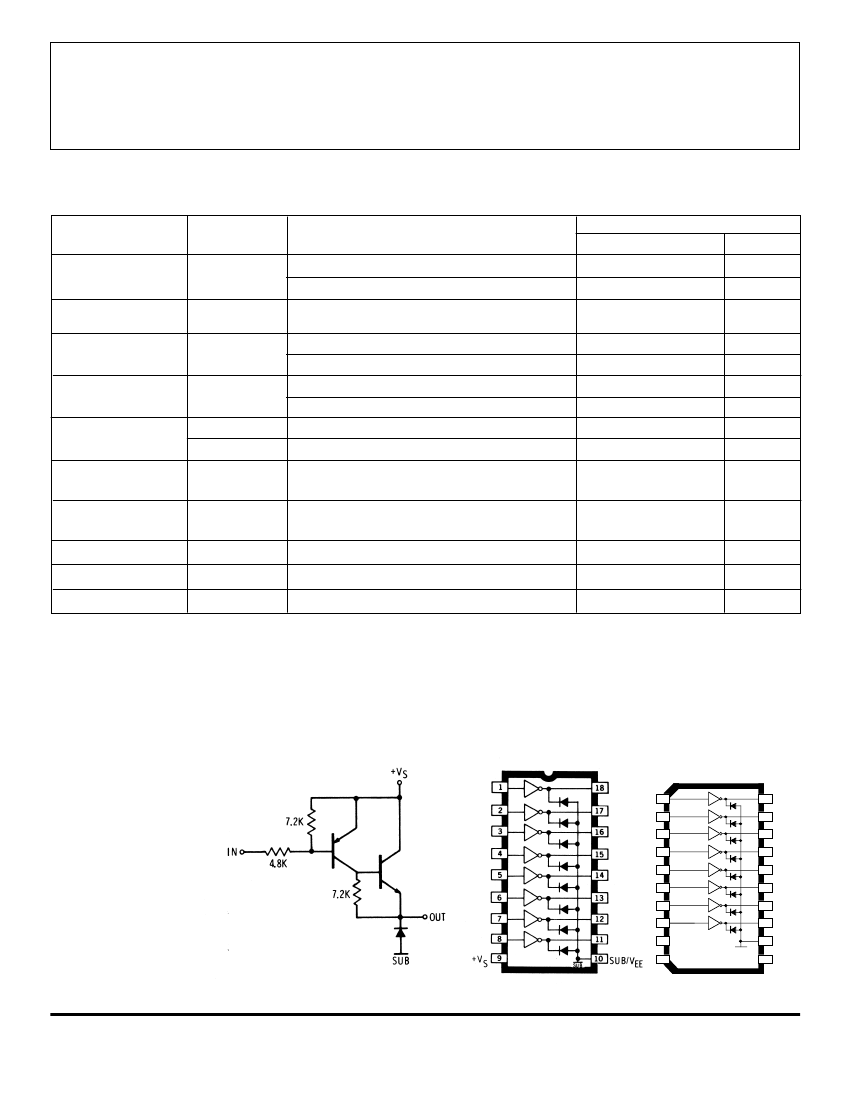

ABSOLUTE MAXIMUM RATINGS

See next page.

FEATURES

TTL, CMOS, PMOS, NMOS Compatible

High Output-Current Rating

Internal Transient Suppression

Efficient Input /Output Structure

Through-Hole and Surface-Mount Packages

The UDN2580A and A2580SLW are last-time

buy. Orders accepted until April 15, 2002.

The UDN2588A and A2588SLW are

not for new design.

Always order by complete part number, e.g.,

UDN2580A

UDN2588A Related Products

	UDN2588A	A2585SLWTR	A2585SLW	A2588SLW	A2580SLW	A2580SLWTR	UDN2585A	UDN2580A	A2588SLWTR
Description	Buffer/Inverter Based Peripheral Driver, 0.5A, PDIP20, PLASTIC, DIP-20	Buffer/Inverter Based Peripheral Driver, 0.25A, PDSO20, SOIC-20	Power Bipolar Transistor, SOIC-20	Buffer/Inverter Based Peripheral Driver, 0.5A, PDSO20, SOIC-20	Buffer/Inverter Based Peripheral Driver, 0.5A, PDSO20, SOIC-20	Buffer/Inverter Based Peripheral Driver, 0.5A, PDSO20, SOIC-20	Power Bipolar Transistor, PLASTIC, DIP-18	Buffer/Inverter Based Peripheral Driver, 0.5A, PDIP18, PLASTIC, DIP-18	Buffer/Inverter Based Peripheral Driver, 0.5A, PDSO20, SOIC-20
Parts packaging code	DIP	SOIC	SOIC	SOIC	SOIC	SOIC	DIP	DIP	SOIC
package instruction	DIP,	SOP,	,	SOP,	SOP,	SOP,	,	DIP,	SOP,
Contacts	20	20	20	20	20	20	18	18	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maker	SANKEN	-	-	SANKEN	SANKEN	SANKEN	SANKEN	SANKEN	SANKEN
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	EAR99
Built-in protection	TRANSIENT	TRANSIENT	-	TRANSIENT	TRANSIENT	TRANSIENT	-	TRANSIENT	TRANSIENT
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	-	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	-	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T20	R-PDSO-G20	-	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	-	R-PDIP-T18	R-PDSO-G20
length	25.908 mm	12.8 mm	-	12.8 mm	12.8 mm	12.8 mm	-	22.86 mm	12.8 mm
Nominal negative supply voltage	-40 V	-20 V	-	-40 V	-45 V	-45 V	-	-45 V	-40 V
Number of functions	1	1	-	1	1	1	-	1	1
Number of terminals	20	20	-	20	20	20	-	18	20
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-	-20 °C	-20 °C	-20 °C	-	-20 °C	-20 °C
Output current flow direction	SOURCE	SOURCE	-	SOURCE	SOURCE	SOURCE	-	SOURCE	SOURCE
Nominal output peak current	0.5 A	0.25 A	-	0.5 A	0.5 A	0.5 A	-	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	-	SOP	SOP	SOP	-	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	IN-LINE	SMALL OUTLINE
Maximum seat height	5.334 mm	2.65 mm	-	2.65 mm	2.65 mm	2.65 mm	-	5.334 mm	2.65 mm
surface mount	NO	YES	-	YES	YES	YES	-	NO	YES
Temperature level	OTHER	OTHER	-	OTHER	OTHER	OTHER	-	OTHER	OTHER
Terminal form	THROUGH-HOLE	GULL WING	-	GULL WING	GULL WING	GULL WING	-	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	-	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	-	DUAL	DUAL
Disconnect time	5 µs	5 µs	-	5 µs	5 µs	5 µs	-	5 µs	5 µs
connection time	5 µs	5 µs	-	5 µs	5 µs	5 µs	-	5 µs	5 µs
width	7.62 mm	7.5 mm	-	7.5 mm	7.5 mm	7.5 mm	-	7.62 mm	7.5 mm
