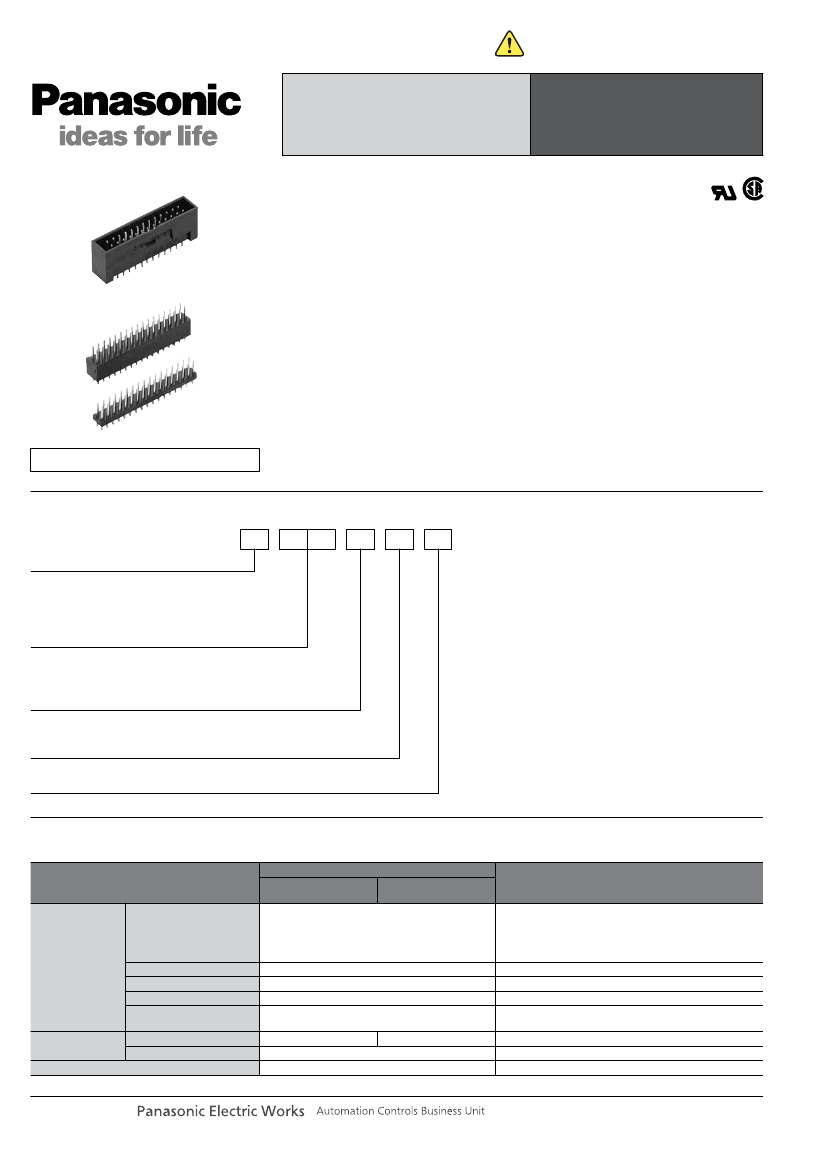

AXL(2)
FOR PC BOARD TO PC BOARD
FOR PC BOARD TO WIRE
FOR PC BOARD TO FLAT CABLE
Discontinued as of September 30, 2010
LOW-PROFILE
HEADERS (AXL2)
APPLICATIONS
• Communication equipment
• Measuring equipment
• Factory automation equipment
FEATURES
1. Simple lock mechanism provided.
A simple lock mechanism is used for Box
type. It can be used where there is light
vibration or shock. Also, the socket is a
one-touch insertion and removal type.
2. Incorrect insertion prevention
mechanism is provided.
With the box type, prevention against
incorrect insertion is provided.
3. Variety of combination possible.
Box types can be used with MIL type
sockets and Open types can be
combined with BB (AXB) sockets.
Box type
Open type
Compliance with RoHS Directive
ORDERING INFORMATION
AXL
2: Low-profile headers (Header)
<No. of contacts (2 digits)>
10: 10 contacts 14: 14 contacts
20: 20 contacts 26: 26 contacts
34: 34 contacts 40: 40 contacts
60: 60 contacts 64: 64 contacts
<Header shape>
2: Box type
8: Open type, height: 2.54 mm
9: Open type, height: 7.4 mm
<Type>
0: Straight
1: Angle
<Surface treatment (Contact portion/Terminal portion)>
1: Au plating/Sn plating
16: 16 contacts
30: 30 contacts
50: 50 contacts
2
1
Connectors for industrial equipment
SPECIFICATIONS
1. Characteristics
Item
Specifications
Box type, Open type
Open type
(height: 7.4mm)
(height: 2.54mm)
2A
When the header is connected to our wire-press
socket, the rated current varies depending on the
wire used as shown below.
(AWG#22/#24: 3 A, AWG#26: 2 A, AWG#28: 1 A)
250V AC
1,000V AC for 1 min.
Min. 1,000MΩ
Max. 20mΩ
Min. 19.6N {2kgf}
500 times
–55°C to +105°C
Min. 9.81N {1kgf}
Condition
Rated current
Electrical
characteristics
Rated voltage
Breakdown voltage
Insulation resistance
Contact resistance
Detection current: 1mA
at 500V DC
MIL type socket or BB socket are mated, measured based
on the HP4338B measurement method of JIS C 5402
By pulling post until coming off
However, life of the simple lock is 10 times.
Mechanical
characteristics
Ambient temperature
Post holding force
Insertion and removal life
panasonic-electric-works.net/ac
Discontinued as of September 30, 2010
AXL(2)

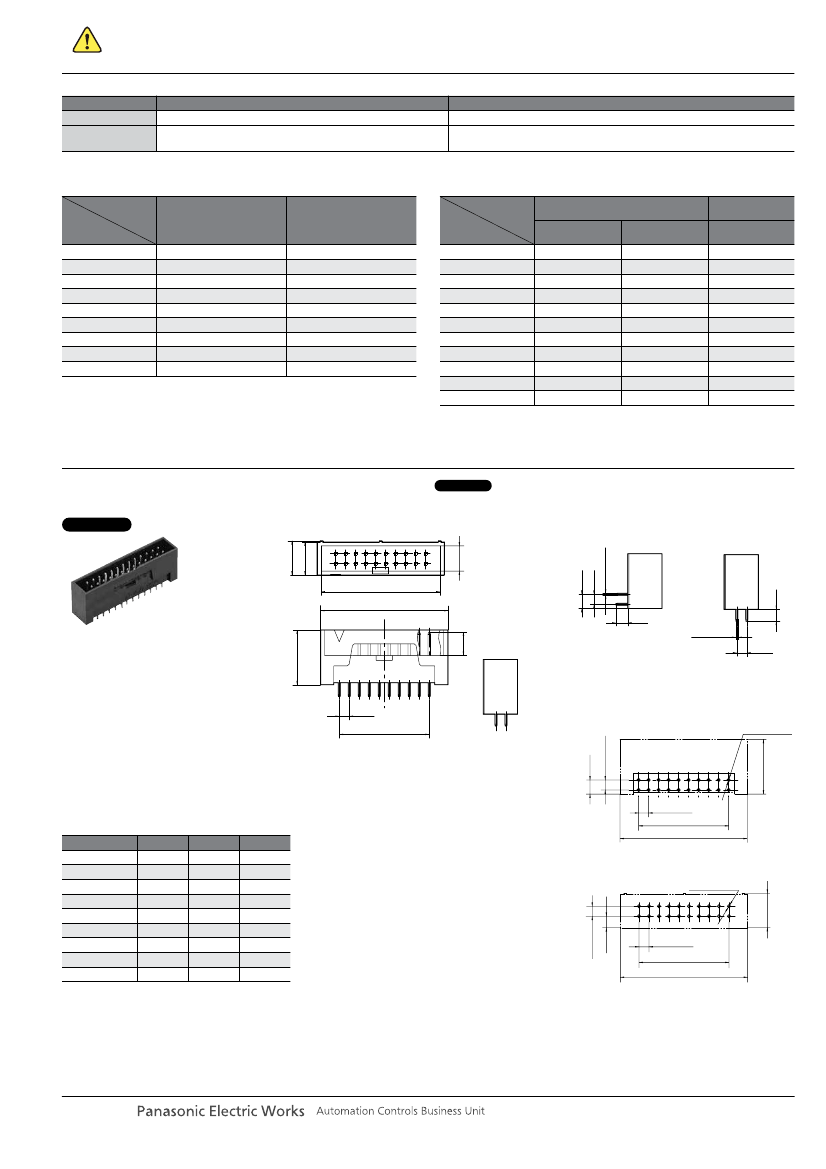

2. Materials and surface treatment
Part name
Molded parts
Post
Material
Glass reinforced PBT (UL94V-0)
Copper alloy
Surface treatment
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Sn plating on surface
PRODUCT TYPES
1. Box type
Terminal
shape
No. of
contact
10
14
16
20
26
30
34
40
50
Angle
AXL210211
AXL214211
AXL216211
AXL220211
AXL226211
AXL230211
AXL234211
AXL240211
AXL250211
Straight
AXL210201
AXL214201
AXL216201
AXL220201
AXL226201
AXL230201
AXL234201
AXL240201
AXL250201
2. Open type
Terminal
shape
No. of
contact
10
14
16
20
26
30
34
40
50
60
64
Angle
AXL210911
AXL214911
AXL216911
AXL220911
AXL226911
AXL230911
AXL234911
AXL240911
AXL250911
—
—
Height 7.4mm
Straight
AXL210901
AXL214901
AXL216901
AXL220901
AXL226901
AXL230901
AXL234901
AXL240901
AXL250901
—
—
Height 2.54mm
Straight
AXL210801
AXL214801
AXL216801
AXL220801
AXL226801
AXL230801
AXL234801
AXL240801
AXL250801
AXL260801
AXL264801
Notes) 1. Try packaging: Outer carton 200 pcs.
2. For available foreign standard product, refer to “STANDARDS CHART” on
the end of catalog.
Special order
- With polarity slot
- With polarity incorrect insertion prevention projection
Notes) 1. Try packaging: Outer carton 200 pcs.
2. For available foreign standard product, refer to “STANDARDS CHART” on
the end of catalog.
DIMENSIONS
(Unit: mm)
• Box type
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://panasonic-electric-works.net/ac
Terminal dimensions
Angle terminal
3.59
2.54
0.5±0.05
6.35
8.7
8.4
Straight terminal
C
A
3.0
0.5±0.05
6.0
13.9
2.54
Recommended PC board pattern
(BOTTOM VIEW)
2.54
B
Angle terminal
0.8+0.05 dia.
2.54±0.05
3.0
3.59
2.54±0.05
Dimension table (mm)
No. of contacts
10
14
16
20
26
30
34
40
50
A
19.6
24.7
27.3
32.3
40.0
45.0
50.1
57.7
70.4
B
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
C
17.53
22.61
25.15
30.23
37.85
42.93
48.01
55.63
68.33
B
(A)
Straight terminal
0.8+0.05 dia.
(8.7)
2.54±0.05
2.93
2.54±0.05
B±0.1
(A)
panasonic-electric-works.net/ac
(13.9)
General tolerance:
±0.3
Connectors for industrial equipment
AXL(2)

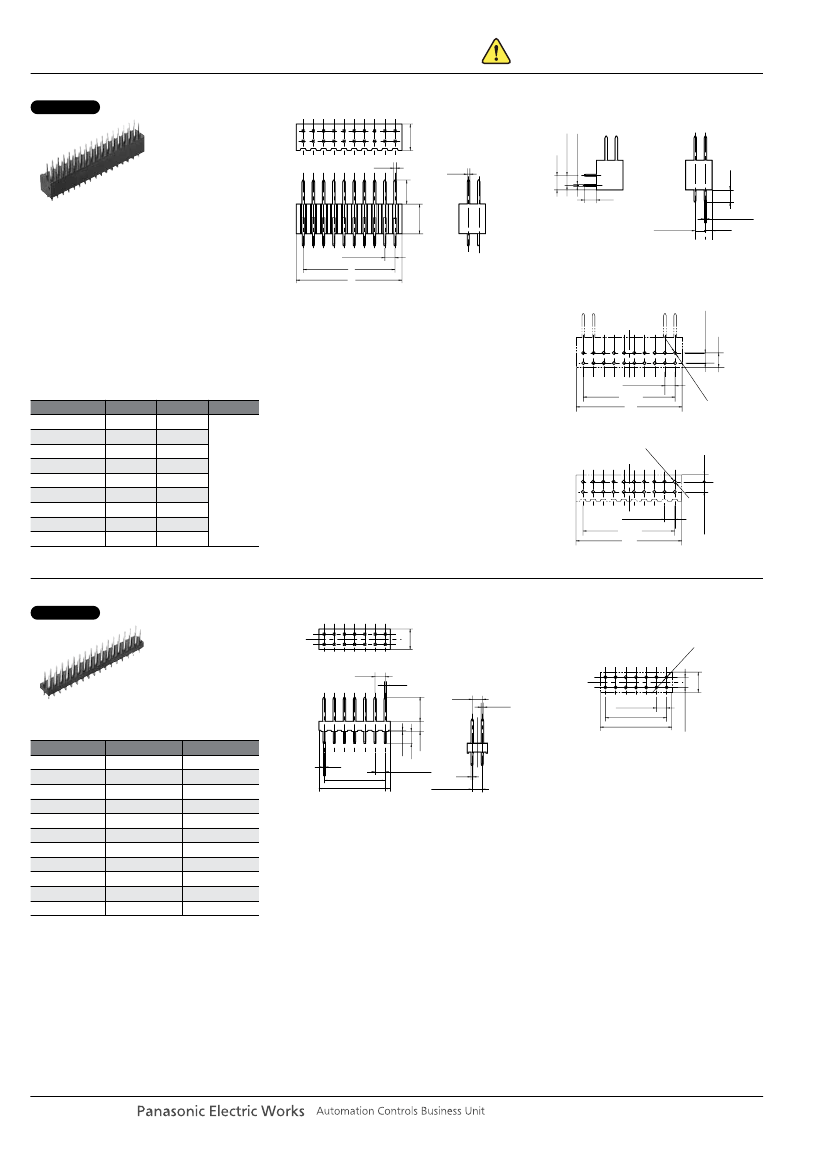

• Open type (Height: 7.4mm)
CAD Data
6.6
Discontinued as of September 30, 2010
Terminal dimensions
Angle terminal
3.59
2.54±0.15
0.5±0.05
Straight terminal
0.64
C
3.0
0.5±0.05
1.73
7.4
2.54±0.15
2.54±0.15
B
A
Recommended PC board pattern
(BOTTOM VIEW)
Angle terminal
2.54±0.05
General tolerance:
±0.3
Dimension table (mm)
No. of contacts
10
14
16
20
26
30
34
40
50
A
13.6
18.6
21.2
26.3
33.9
39.0
44.0
51.7
64.4
B
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
C
2.54±0.05
B±0.1
(A)
Straight terminal
1.73
0 1
6.0
2.54±0.05
0.
8
+0.
2.54±0.05
B±0.1
(A)
• Open type (Height: 2.54mm)
CAD Data
5.08
Recommended PC board pattern
(Bottom view)
di
a.
0.64
2.54
6.0
0.64
2.54±0.05
B±0.1
(A)
No. of contacts
10
14
16
20
26
30
34
40
50
60
64
A
12.7
17.78
20.32
25.4
33.02
38.1
43.18
50.8
63.5
76.2
81.28
B
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
78.74
Connectors for industrial equipment
0.5
B
A
2.54±0.15
0.3
3.0
2.54
Dimension table (mm)
0.5
2.54±0.15
General tolerance:
±0.3
panasonic-electric-works.net/ac
2.54±0.05 (5.08)
2.54
3.59
3.0
0.64
0.8
.1
+00
.
dia
0.
8
.1
+0 0
di
a.
Discontinued as of September 30, 2010
AXL(2)
2. Open type
Angle terminal
Angle terminal
CABLE NO. AND TERMINAL CORRELATION DRAWING
When this low-profile header is fixed with
MIL type socket, the header terminal
positions and the corresponding cable
numbers are shown in the drawing below.
Triangle mark
n
n-1
3 1
2
n-1
1
1. Box type
n
2
Triangle mark
1
3
n-1
n
n-1
Straight terminal
2
1
Triangle mark
n
n-1
Straight terminal
2
2
4
1 23 4
Cable No.
Cable
n
1
n
NOTES
1. Regarding socket insertion and
removal
The low profile type header does not
have a lever mechanism for removal of
the header. The socket should be
grasped with the hand for insertion and
removal. In case that MIL type or wire-
press socket are inserted to box type
header with 50 contacts, there will be a
little difficulty in insertion.
This is because the polarity guide is a
little higher for the protection of reverse
insertion.
Please refer to the following illustration
for smooth inserting.
Socket
Polarity guide
Header
3. Regarding handling of terminals
Care should be taken in the handling of
the terminals because repeated bending
can lead to damage.
4. Regarding the environment for use
Header selection can be made from the
table right for use under external
mechanical vibration or shock, or for use
where there is dust or other adverse
environment.
Vibration: approx. 9.8m/s
2
{1G}/10 to 150Hz
Shock: approx. 49m/s
2
{5G}
Use
environ-
ment
Header
type
Box
Low-
type
profile
header Open
type
Long
lever
MIL
header Short
lever
Vibration, shock
Dust
Occasion
ally
Good
Not good
Good
Good
Normally
Not good
Not good
Good
Not good
Good
Not good
Good
Good
5. Vibration and shock
When Low-profile headers are used
together with MIL type sockets or BB
sockets, there is a possibility of socket
removal if they are used where always
shock or vibration is applied. So care for
lock mechanism or no shock application
ahould be taken.
For other details, please verify with
the product specification sheets.
2. Regarding soldering
Soldering should be carried out under the
conditions given below.
260°C: Within 10 seconds
300°C: Within 5 seconds
350°C: Within 3 seconds
panasonic-electric-works.net/ac
Connectors for industrial equipment
