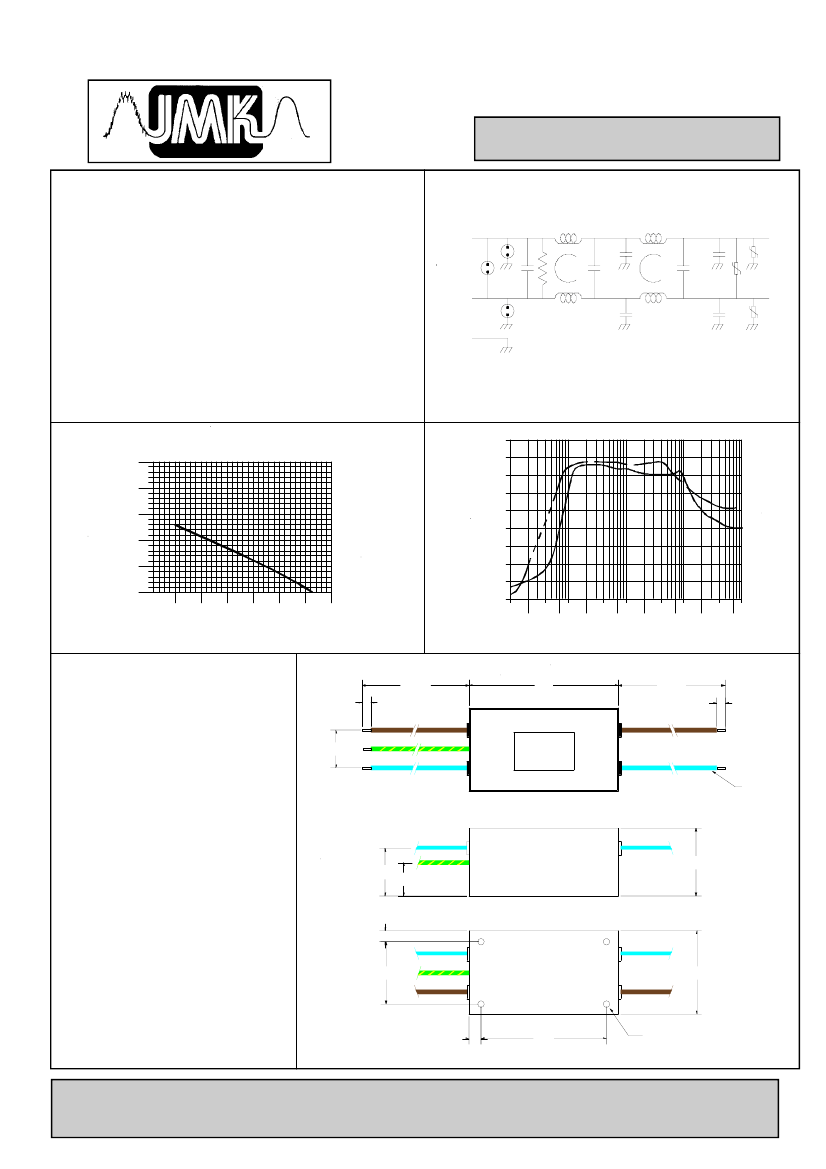

FF-1503-18
Operating Voltage = _______________ 125 Vac
Operating Current (Max) = __________ 18 AMP A/C
Frequency = _____________________ 60 HZ
Temp range (Storage) = ____________ -40 to 125
o
C
Temp range (Oper.) @ 18.0 AMP= ___ -40 to 85
o
C *
Note: (cooling air may be required)
Dielectric Withstand volt (Ph—Case) = 1500 Vac
Dielectric Withstand volt (Ph—Ph) = __ 1500 Vdc
Leakage current @ 125 V~, 60 HZ = __ 0.3 MA max.
Discharge Voltage after 1.0 sec = ____ 43 V max.
Weight = _______________________ 1300 gr / 2.9 lb.
Order p/n: FF-1503-18
BRN
BRN
LINE
BLU
LOAD
BLU
GRN/YEL
OPERATING CURRENT VS AMBIENT TEMPERATURE
90
90
80
INSERTION LOSS (db)
70
60
50
40
30
20
10
DM
CM
OPERATING TEMP (DEG C)
80
70
60
50
40
12.0
13.0
14.0
15.0
16.0
17.0
18.0
0
.01
.02
.04
.07
.1
.2
.4
.7
1
2
4
7
10
20
40
100
70
CURRENT (AMPS)
FREQUENCY (MEGAHERTZ)
This filter is designed to operate
with forced air cooling.
The curve above shows the
operating temperature versus
current in “still air”.
With a 26 cfm fan supplying cooling
the operating temperature is
85
o
C.
With a 34 cfm fan supplying cooling
the operating temperature is
90
o
C.
6.0 - 7.0
0.23 - 0.30
BROWN
1.25
5.00
6.0 - 7.0
0.23 - 0.30
BROWN
LOAD
BLUE
LINE
LINE
GRN / Y
BLUE
LOAD
AWG #14
5 PLCS
2.25
1.60
1.12
0.350
2.050
2.75
0.39
4.220
10-32 INSERT
4 PLCS
USA
EUR
JMK Inc 15 Caldwell Dr. Amherst, NH 03031
JMK Inc Glasgow G13 1DN Scotland UK
PH: 603 886-4100
FX: 603 886-4115
email: info@jmkfilters.com
PH: 44-(0) 7785310729 FX: 44-(0) 141-589-1884
