PS-74DS-HAA: DescriptionBoard Connector, 74 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

PS-74DS-HAA Overview

Board Connector, 74 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PS-74DS-HAA Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATING LENGTH=0.318 INCHES
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	PS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	74
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

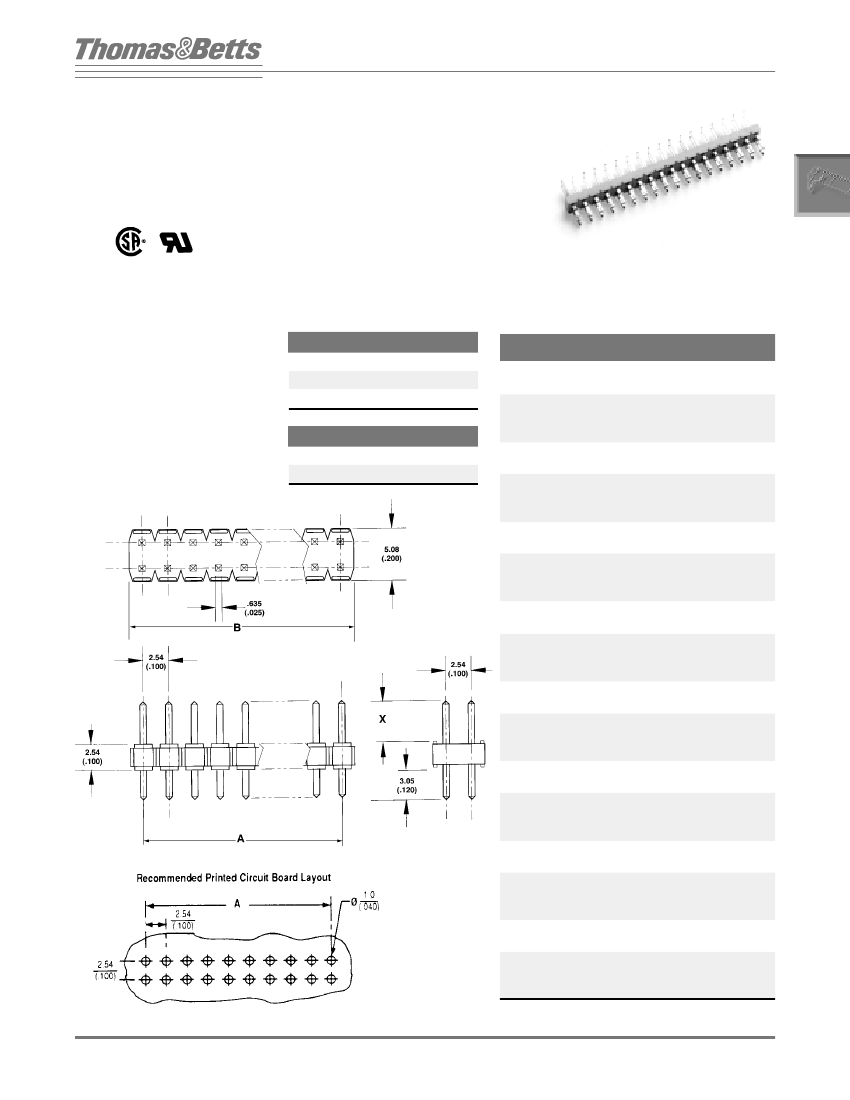

IDC Systems

Headers

DUAL ROW

PIN STRIP HEADERS

STRAIGHT

.100" x .100" CENTERS

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass reinforced thermo-

plastic, rated 94V-0

OLOR

Black

XYGEN

NDEX

ONTACT

ATERIAL

Copper alloy, gold or tin/lead

plating over nickel

Ordering Information

INTERFACE PLATING

10 µ" gold over nickel

30µ" gold over nickel

NUMBER OF CATALOG NO.

POSITIONS SPECIFY W, & X

PS-02DS-WXA

PS-04DS-WXA

PS-06DS-WXA

PS-08DS-WXA

PS-10DS-WXA

PS-12DS-WXA

PS-14DS-WXA

PS-16DS-WXA

PS-18DS-WXA

PS-20DS-WXA

PS-22DS-WXA

PS-24DS-WXA

PS-26DS-WXA

PS-28DS-WXA

PS-30DS-WXA

PS-32DS-WXA

PS-34DS-WXA

PS-36DS-WXA

PS-38DS-WXA

PS-40DS-WXA

PS-42DS-WXA

PS-44DS-WXA

PS-46DS-WXA

PS-48DS-WXA

PS-50DS-WXA

PS-52DS-WXA

PS-54DS-WXA

PS-56DS-WXA

PS-58DS-WXA

PS-60DS-WXA

PS-62DS-WXA

PS-64DS-WXA

PS-66DS-WXA

PS-68DS-WXA

PS-70DS-WXA

PS-72DS-WXA

PS-74DS-WXA

PS-76DS-WXA

PS-78DS-WXA

PS-80DS-WXA

eg. PS-80DS-TBA

2.54 (1.00)

7.62 (.300)

12.70 (.500)

17.78 (.700)

22.86 (.900)

27.94 (1.100)

33.02 (1.300)

38.10 (1.500)

43.18 (1.700)

48.26 (1.900)

53.34 (2.100)

58.42 (2.300)

63.50 (2.500)

68.58 (2.700)

73.66 (2.900)

78.74 (3.100)

83.82 (3.300)

88.90 (3.500)

93.98 (3.700)

99.06 (3.900)

5.08 (.200)

10.16 (.400)

15.24 (600)

20.32 (.800)

25.40 (1.000)

30.48 (1.200)

35.56 (1.400)

40.64 (1.600)

45.72 (1.800)

50.80 (2.000)

55.88 (2.200)

60.96 (2.400)

66.04 (2.600)

71.12 (2.800)

76.20 i3.000)

81.28 (3.200)

86.36 (3.400)

91.44 (3.600)

96.52 (3.800)

101.60 (4.000)

LECTRICAL

ROPERTIES

URRENT

ATING

3 Amps/pin

NSULATION

ESISTANCE

1 x 10

Ohms

IELECTRIC

TRENGTH

1000 VAC

T 100µ" tin/lead over nickel

MATING LENGTH

8.1 (.318)

5.8 (.230)

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C to 125˚C

104.14 (4.100) 106.68 (4.200)

109.22 (4.300) 111.76 (4.400)

114.30 (4.500) 116.84 (4.600)

119.38 (4.700) 121.92 (4.800)

124.46 (4.900) 127.00 (5.000)

129.54 (5.100) 132.08 (5.200)

134.62 (5.300) 137.16 (5.400)

139.70 (5.500) 142.24 (5.600)

144.78 (5.700) 147.32 (5.800)

149.86 (5.900) 152.40 (6.000)

154.94 (6.100) 157.48 (6.200)

160.02 (6.300) 162.56 (6.400)

165.10 (6.500) 167.64 (6.600)

170.18 (6.700) 172.72 (6.800)

175.26 (6.900) 177.80 (7.000)

180.34 (7.100) 182.88 (7.200)

185.42 (7.300) 187.96 (7.400)

190 50 (7.500) 193.04 (7.600)

195.58 (7.700) 198.12 (7.800)

200.66 (7.900) 203.20 (8.000)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
