1704755107 datasheet, PDF - EEWORLD Datasheet

1704755107: DescriptionBoard Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,; CategoryThe connector The connector; File Size320KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

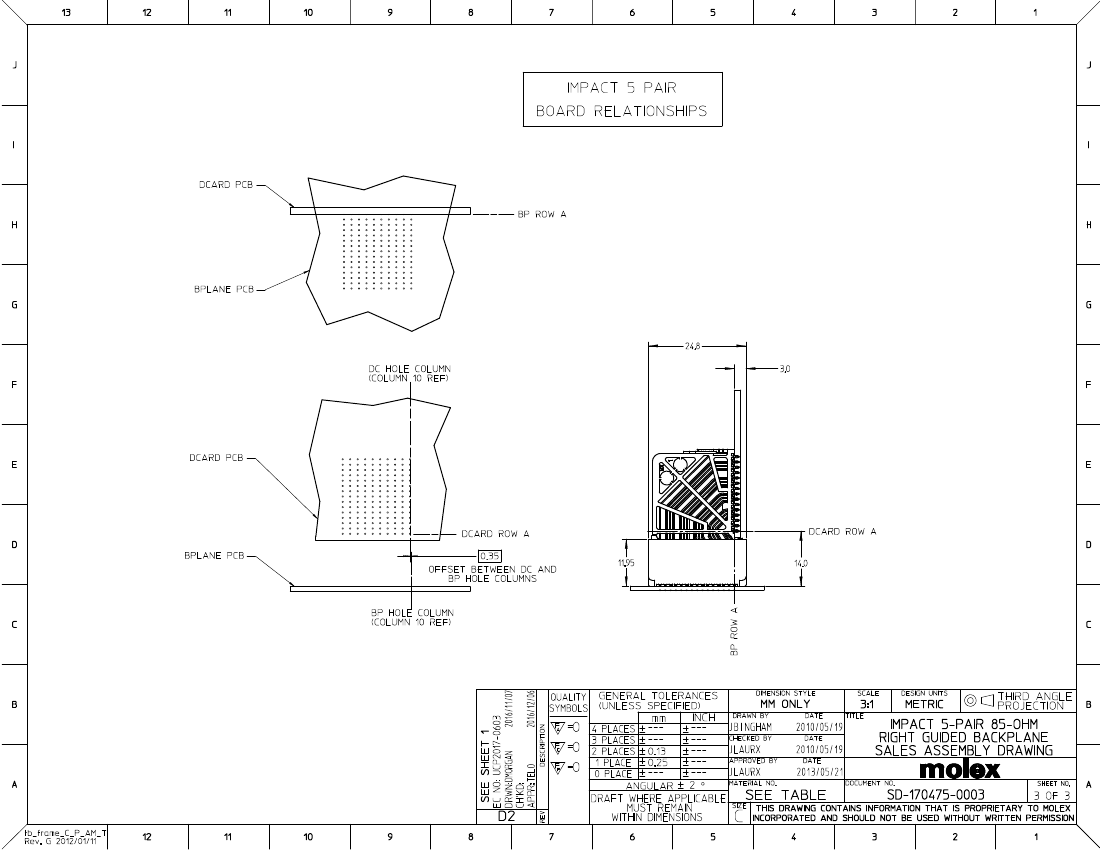

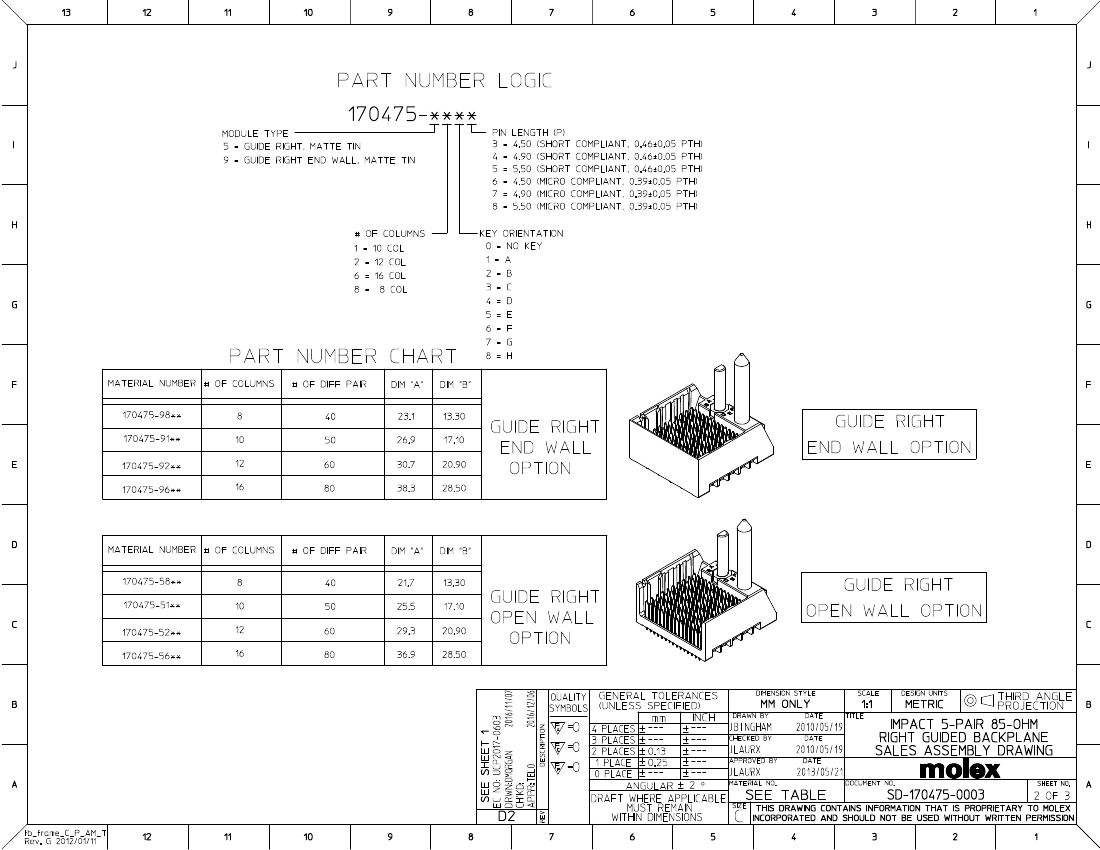

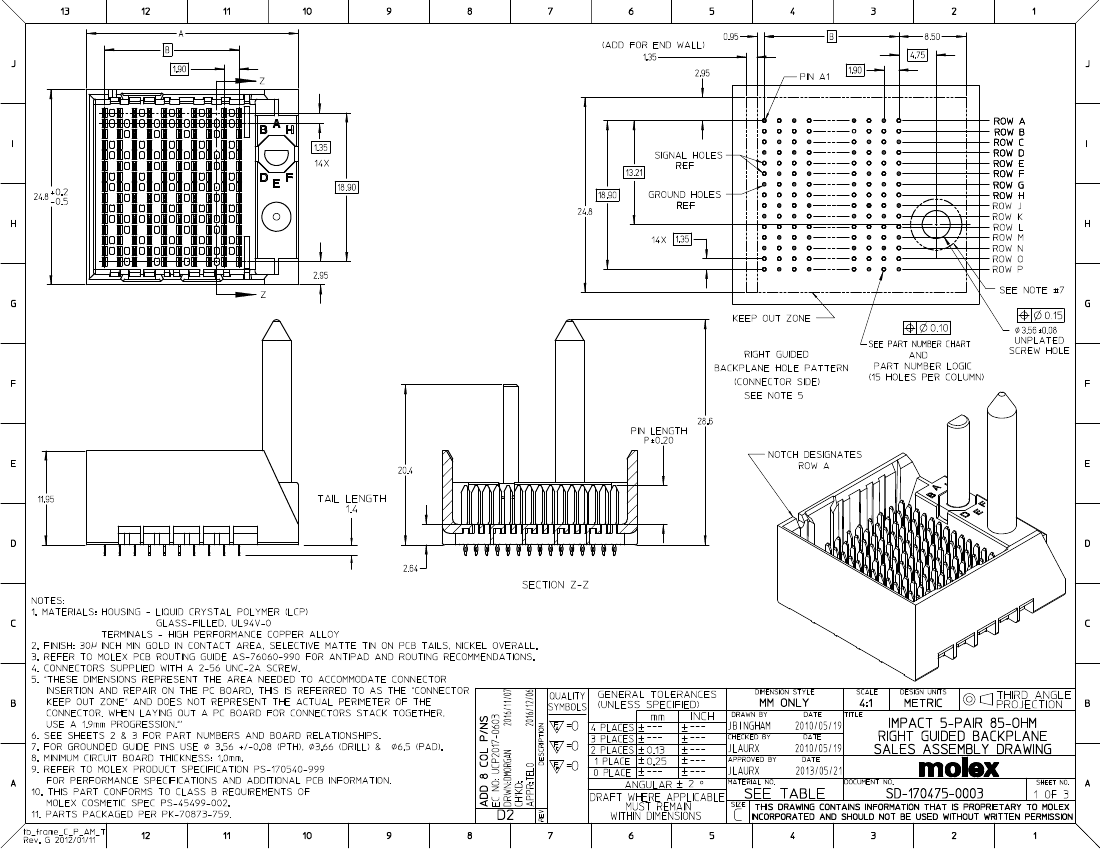

1704755107 Overview

Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Dielectric withstand voltage	250VAC V
Durability	200 Cycles
maximum insertion force	.3892 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
Manufacturer's serial number	170475
Plug contact pitch	0.075 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	15
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.055 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	150
Evacuation force-minimum value	.0834 N
Base Number Matches	1

	1704755107	1704755607
Description	Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,	Board Connector, 240 Contact(s), 15 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator,
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	TIN
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	10 mΩ	10 mΩ
Dielectric withstand voltage	250VAC V	250VAC V
Durability	200 Cycles	200 Cycles
maximum insertion force	.3892 N	.3892 N
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY
insulator material	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	170475	170475
Plug contact pitch	0.075 inch	0.075 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	15	15
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Plating thickness	30u inch	30u inch
Rated current (signal)	0.75 A	0.75 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.055 inch	0.055 inch
Terminal pitch	1.905 mm	1.905 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	150	240
Evacuation force-minimum value	.0834 N	.0834 N
