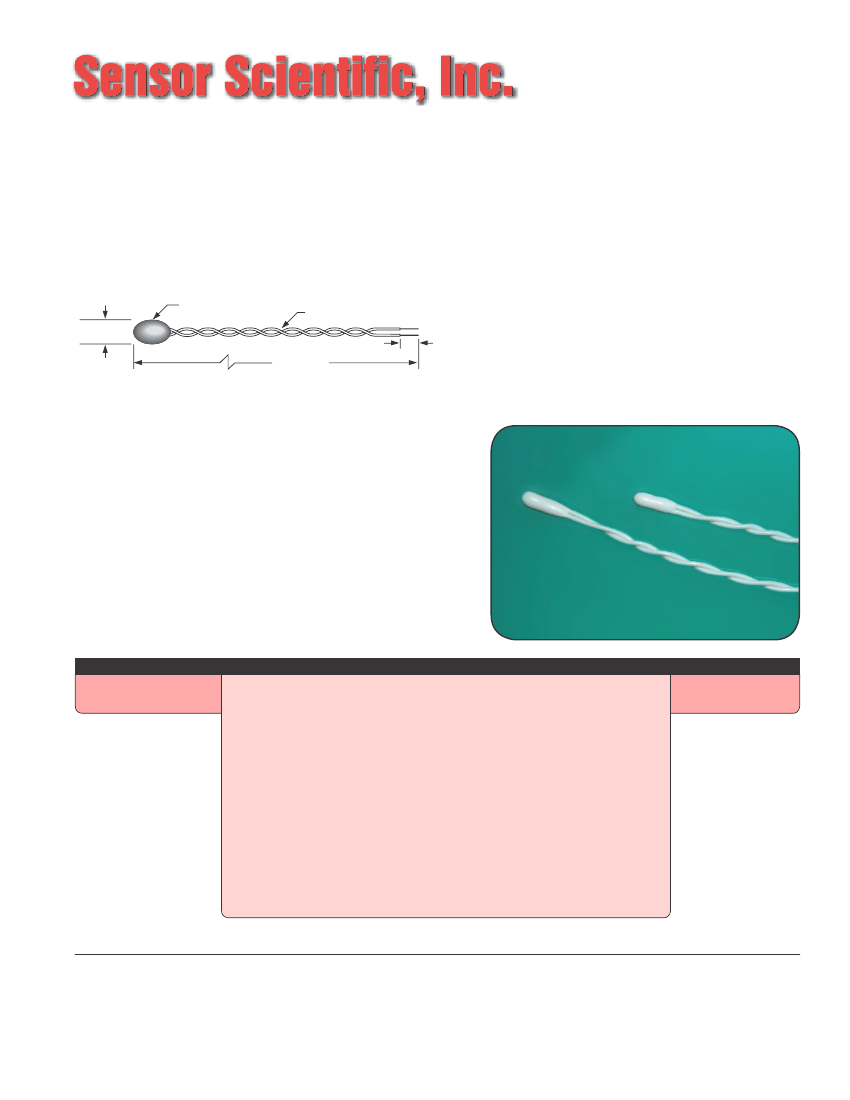

KWM Series Interchangeable
Wafer Thermistors with
Kynar-Insulated Leads
EPOXY COAT
.090 MAX.
(2.3mm)
28AWG (.0126", 0.32mm diameter)
KYNAR-INSULATED LEADS
.25 NOM.
(6.3mm)
STRIP
FEATURES:
• TOUGH KYNAR (PVDF) LEAD INSULATION
• SILVER-PLATED COPPER CONDUCTOR RESISTS OXIDATION
• HIGH ACCURACY
• HIGH STABILITY
• INTERCHANGEABLE FROM 0 DEG C TO 70 DEG C
OPTIONS:
• LONGER OR SHORTER LEAD LENGTHS
• TERMINATION TYPE
• NON-STANDARD TOLERANCES
• VALUE ADDED CUSTOM PROBE ASSEMBLIES
SPECIFICATIONS:
3.5 ±.25
(89 ±6.3mm)
• THERMAL TIME CONSTANT: 10 SECONDS TYP IN STILL AIR
.
• DISSIPATION CONSTANT: 1.5 mW/°C
• MAXIMUM OPERATING TEMPERATURE: 125°C (INTERCHANGEABILITY
MAY DEGRADE IF USED ABOVE 70 DEG. C.)
• INTERCHANGEABILITY RANGE: 0 TO 70 DEG. C.
Sensor Scientific KWM Series interchangeable wafer thermistors
combine a high-accuracy thermistor with a tough insulated
lead. The Kynar lead insulation offers many of the advantages of
Teflon insulation with a lower cost. Interchangeability eliminates
the burden of individual calibration. Units are available in
resistance values from 2k ohms to 100k ohms @ 25°C. The
available resistance vs. temperature curves (SSi curves C,
D, E & Y) are industry-standard. If a standard unit does not
meet your needs, customized tolerances, resistance values,
temperature ranges, and termination options are available.
Design assistance is also available.
Part Number
Resistance
@ 25 Deg C
ohms
2000
2252
3000
4000
5000
10000
10000
30000
30000
50000
100000
±0.2 Deg
tolerance
KWM202C
KWM222C
KWM302C
KWM402C
KWM502C
KWM103C
KWM103Y
KWM303D
KWM303E
KWM503D
KWM104D
±0.5 Deg
tolerance
KWN202C
KWN222C
KWN302C
KWN402C
KWN502C
KWN103C
KWN103Y
KWN303D
KWN303E
KWN503D
KWN104D
— Dissipation Constant: 1.5 mW/°C Typ. in still air —
— Time Constant: 10 sec. Typ. in still air —
±1.0 Deg C
tolerance
KWP202C
KWP222C
KWP302C
KWP402C
KWP502C
KWP103C
KWP103Y
KWP303D
KWP303E
KWP503D
KWP104D
R. vs. Temp.
Curve
C
C
C
C
C
C
Y
D
E
D
D
“The information contained herein is believed to be accurate. The user, however, should verify the suitability of a particular procuct for a specific application. Senor Scientific,
Inc. does not warrant the accuracy of this information, and disclaims any liability with respect to its use.”
Call us toll-free at 800-524-1610 (in the US) — or check us out on the web at www.sensorsci.com
Sensor Scientific, Inc.
• 6 Kings Bridge Road - Fairfield, New Jersey 07004 • Phone: (973) 227-7790 • Fax: (973) 227-8063
eMail: sales@sensorsci.com • web: www.sensorsci.com
