AG33201618030: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size488KB，2 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

AG33201618030 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

AG33201618030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
ESR	68 mΩ
length	30 mm
Manufacturer's serial number	AG
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	1400 mA
series	AG
Base Number Matches	1

Preview

Download Datasheet

View All

125 °C

Axial terminals

AG

Low mounting height

High CV product

Long life 2000 h @ 125 °C

1.

Low temperature –55°C

Features

•

RoHS compliant

REACH compliant

Different case sizes, voltages

and capacitance combinations are

available on request.

Also in small lots.

All contacts welded

High temp 125°C

Long useful life

Applications

•

Automotive

Inverter/drives

Laser

Industrial

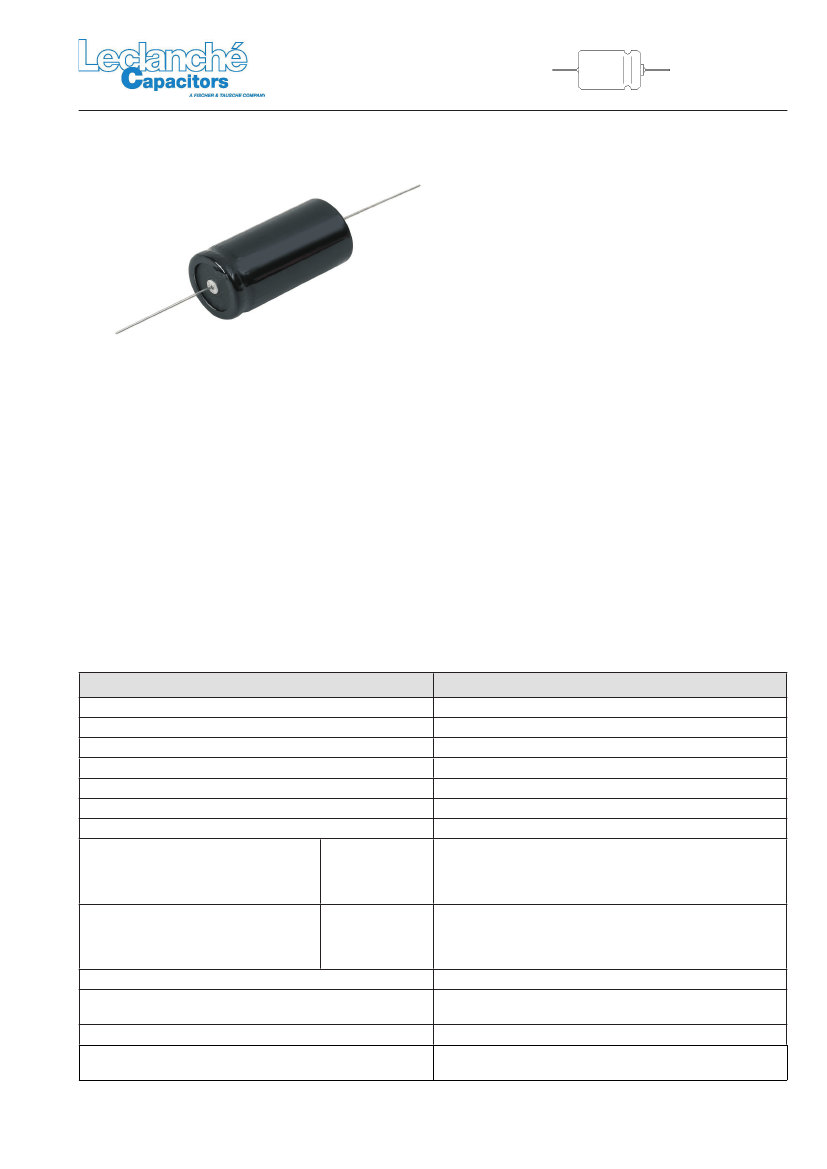

General specifications

Items

Rated capacitance range C

R

Capacitance tolerance

Rated voltage range U

R

Surge voltage U

S

Max. reverse voltage

Category temperature range

Leakage current I

L

after 5 min @ U

R

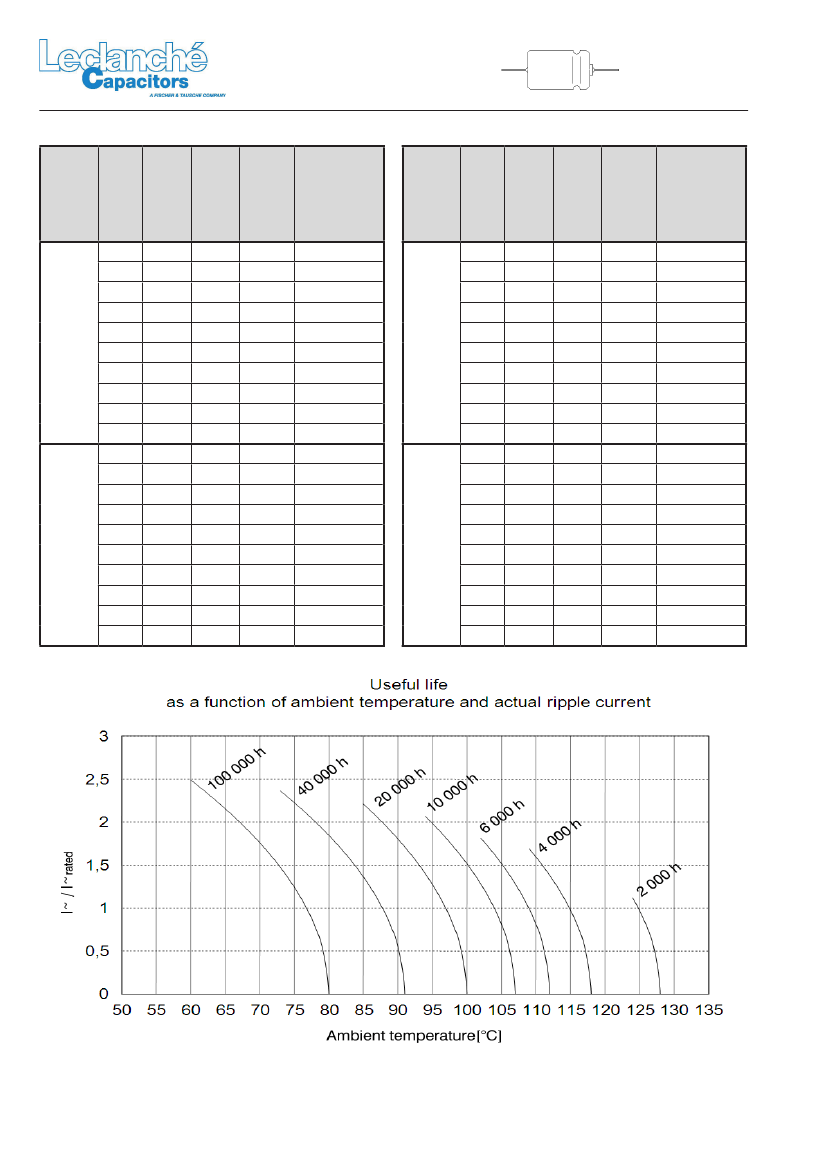

Useful life

2000 h @ 125 °C

; U

R

; I

R~

1000 h @ 125 °C

, U

R

Characteristics

150… 82.000 µF

± 20%

16 … 63 V

U

S

= 1,15 U

R

2V

- 55°C ... + 125 °C

≤ 0,004 * C

R

[µF] * U

R

[V] + 6 µA [µA]

Requirements

Δ C/C ≤ 30 % of initial value

ESR ≤ 300 % of specified limit

I

L

≤ specified limit

Requirements

Δ C/C ≤ 20

% of initial value

ESR ≤ 130 % of specified limit

I

L

≤ specified limit

55/125/56

D ≤ 25 mm: ≥ 1000 V AC

D > 25 mm: ≥ 2500 V AC

IEC 60384-4

Up to 25 mm Ø : 0,8 mm ;

more than 25 mm Ø : 1,0 mm

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch

capinfo@Lcap.ch

17

Endurance test

Climatic category IEC 60068

Voltage proof of the external insulation

Sectional specification

Ø leads

Leclanché Capacitors

1400 Yverdon, Switzerland
