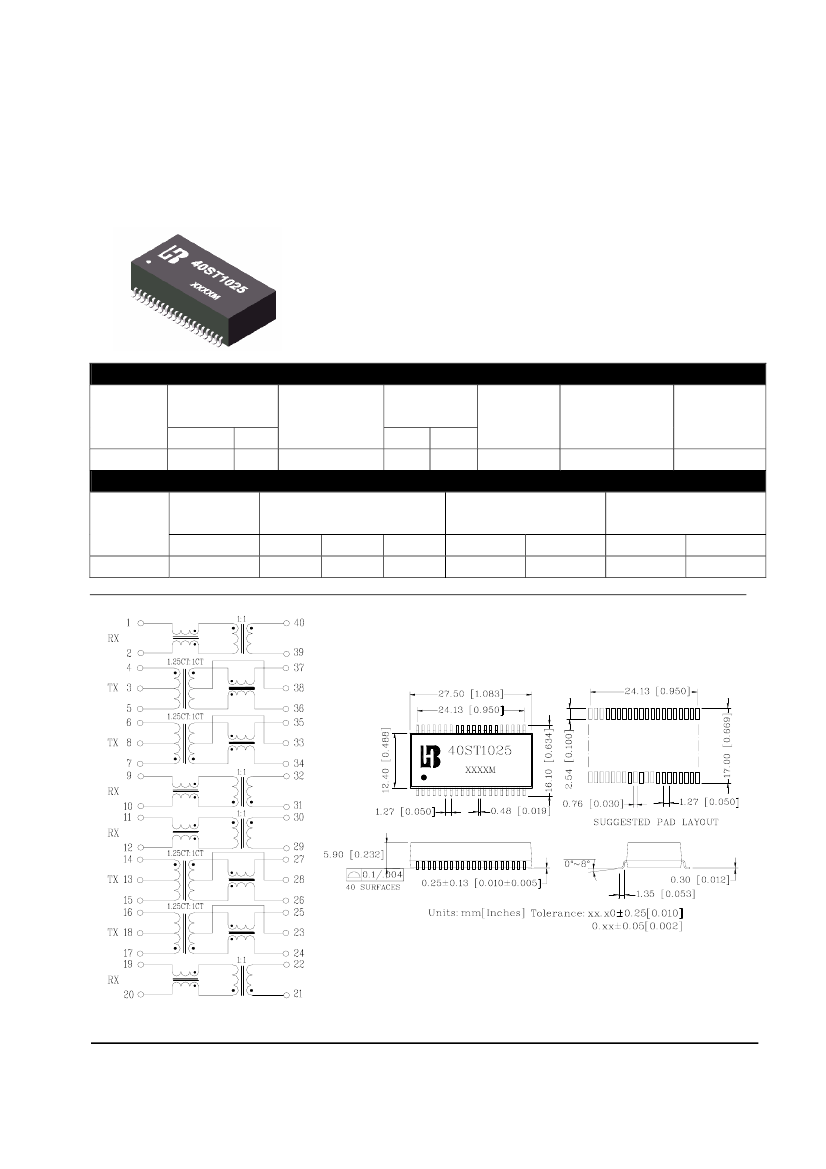

40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TARNSFORER

Page : 1/1

P/N: 40ST1025 DATA SHEET

Feature

IEEE 802.3 Ethernet compatible .

Surface mountable.

Design for multiport repeater and Ethernet switching Hub

application.

Customer designs available for specific application.

Operating temperature range : 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

40ST1025

Turns Ratio

(±5%)

1.25CT:1CT

1:1

OCL(μH Min)

@100KHz/0.1Vrms

8mA DC/Bias

350

0.6

L.L

(μH Max)

0.5

Cw/w

(pF Max)

HI-POT

(Vrms)

1500

Rise Time

(nS Typ)

2.5

Continue

Part

Number

40ST1025

Insertion Loss

(dB Max)

0.3–100MHz

-1.15

Return Loss

(dB Min)

0.3-30MHz 30-60MHz 60-80MHz

-16

-12

-10

Cross talk

(dB Min)

0.3-60MHz

-45

60-100MHz

-35

DCMR

(dB Min)

1-60MHz

-40

60-100 MHz

-30

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A0(02/07)
