AZ770-1A-12DEG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ770-1A-12DEG

AZ770-1A-12DEG: DescriptionElectromechanical Relay, SPST, Latched, 15.6VDC (Coil), 5A (Contact), 30VDC (Contact), Random, AC/DC Output,; CategoryMechanical and electronic products relay; File Size111KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric View All

AZ770-1A-12DEG Overview

Electromechanical Relay, SPST, Latched, 15.6VDC (Coil), 5A (Contact), 30VDC (Contact), Random, AC/DC Output,

AZ770-1A-12DEG Parametric

Parameter Name	Attribute value
Maker	AZETTLER
Reach Compliance Code	compliant
body width	10.35 mm
body height	12.55 mm
Body length or diameter	17.85 mm
Coil operating voltage (DC)	9 V
Coil resistance	320 Ω
Maximum coil voltage (DC)	15.6 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1250VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated power R load	150W@30VDC
Contact (DC) maximum rated R load	5A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	5
operating hours	8 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	17.85mm x 10.35mm x 12.55mm
Guideline	UL; VDE
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
release time	4 ms
seal	EPOXY
Terminal length	0.0036 inch
Termination type	SOLDER
weight	4.6 g
Base Number Matches	1

Preview

Download Datasheet

View All

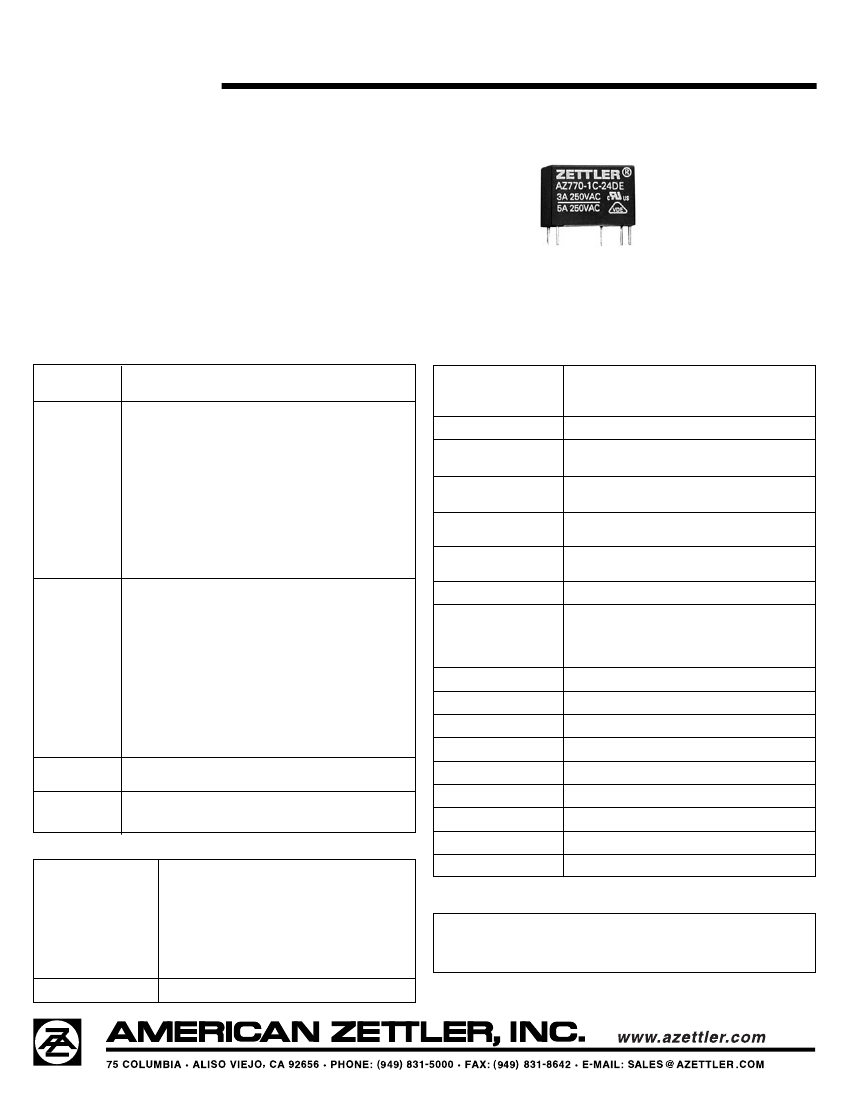

AZ770

SPDT SUBMINIATURE

POWER RELAY

FEATURES

Small footprint

5 kV dielectric strength, 10 kV surge

Class B insulation standard

8 mm creepage and clearance

Epoxy sealed version available

5 Amp switching

High temperature 105 C and high current 10A version

avilable ( UL Pending )

•

UL, CUR file E44211, VDE 40006815

CONTACTS

Arrangement

Ratings

SPST (1 Form A)

SPDT (1 Form C)

Resistive load:

Max. switched power: 150 W (SPST-NO) standard

1250 VA (SPST-NO) standard

90 W (SPDT)

750 VA (SPDT)

Max. switched current: 5 A AC SPST-NO standard

5 A DC SPST-NO standard

3 A AC/DC SPST-NO sensitive

3 A AC/DC SPDT

Max. switched voltage: 150* VDC or 380 VAC

Note: If switching voltage is greater than 30 VDC, special

precautions must be taken. Please contact the factory.

•

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 5 A 240 VAC Res.

8 ms at nominal coil voltage

4 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms between open contacts

Surge Voltage

Coil to contact

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

10,000V (at 1.2x50 µ s)

1000 megohms min. at 20°C

500 VDC 50% RH

Greater than 5% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 90°C (194°F), standard

-40°C (-40°F) to 105°C (221°F), sensitive

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

10 g operating, 100 g damage

P.B.T. polyester

Tinned copper alloy, P. C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

4.6 grams

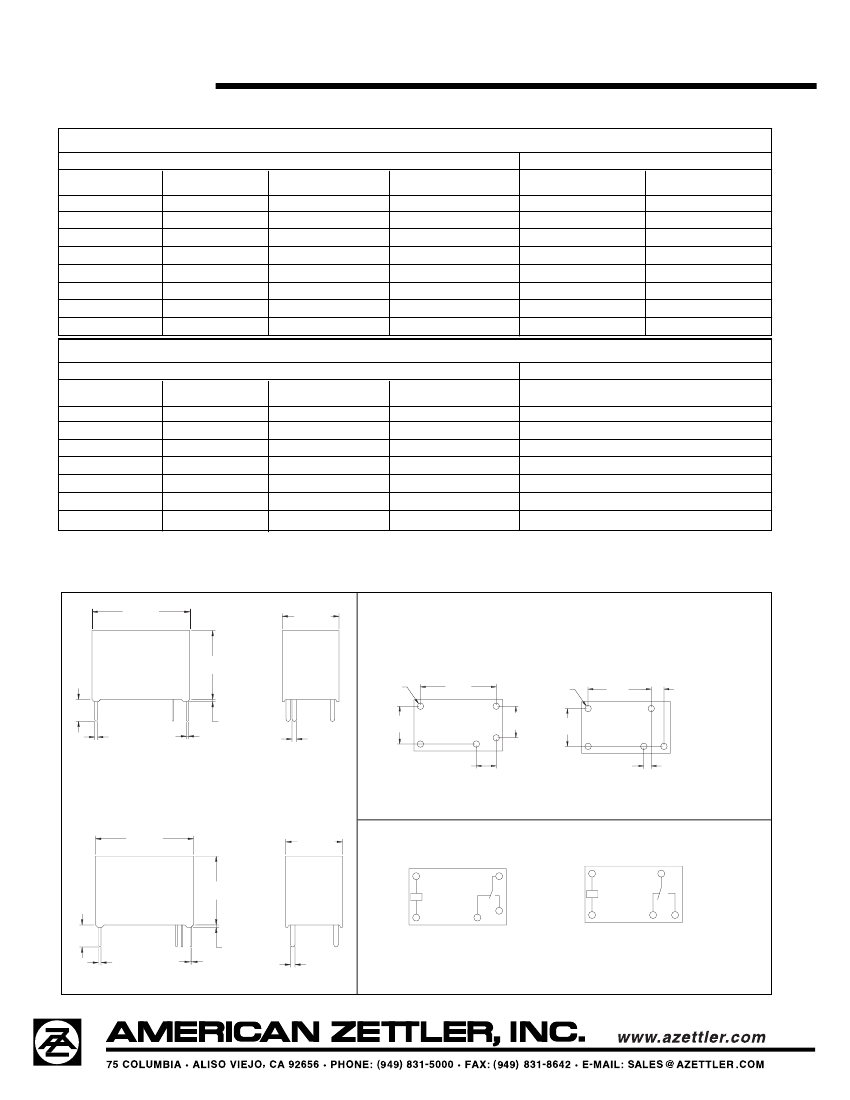

Rated Load

UL, CUR

Form A (N.O.)

5 A at 250 VAC, Res., 100k cycles

5 A at 30 VDC, Res., 100k cycles

1/8 HP, 125 / 250 VAC, 100k cycles

3 A at 250 VAC, 0.4 PF., 100k cycles

C300 Pilot Duty, 125 / 250 VAC, 100k cycles

TV-2, 120 VAC

Form C

3 A at 250 VAC, Res. 100k cycles

3 A at 30 VDC, Res, 100k cycles

Form A and Form C

5 A at 250 VAC, 100k cycles

Silver nickel, gold plating available

Silver tin oxide ( VDE ‘T’ version only )

<100 milliohms initially

(24 V, 1 A voltage drop method)

VDE

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

253 mW standard

113 mW sensitive

1.25 W at 20°C (68°F) ambient

41°C (74°F) at nominal coil voltage, standard

22°C (40°F) at nominal coil voltage, sensitive

Max. 130°C (266°F)

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

7/23/09
