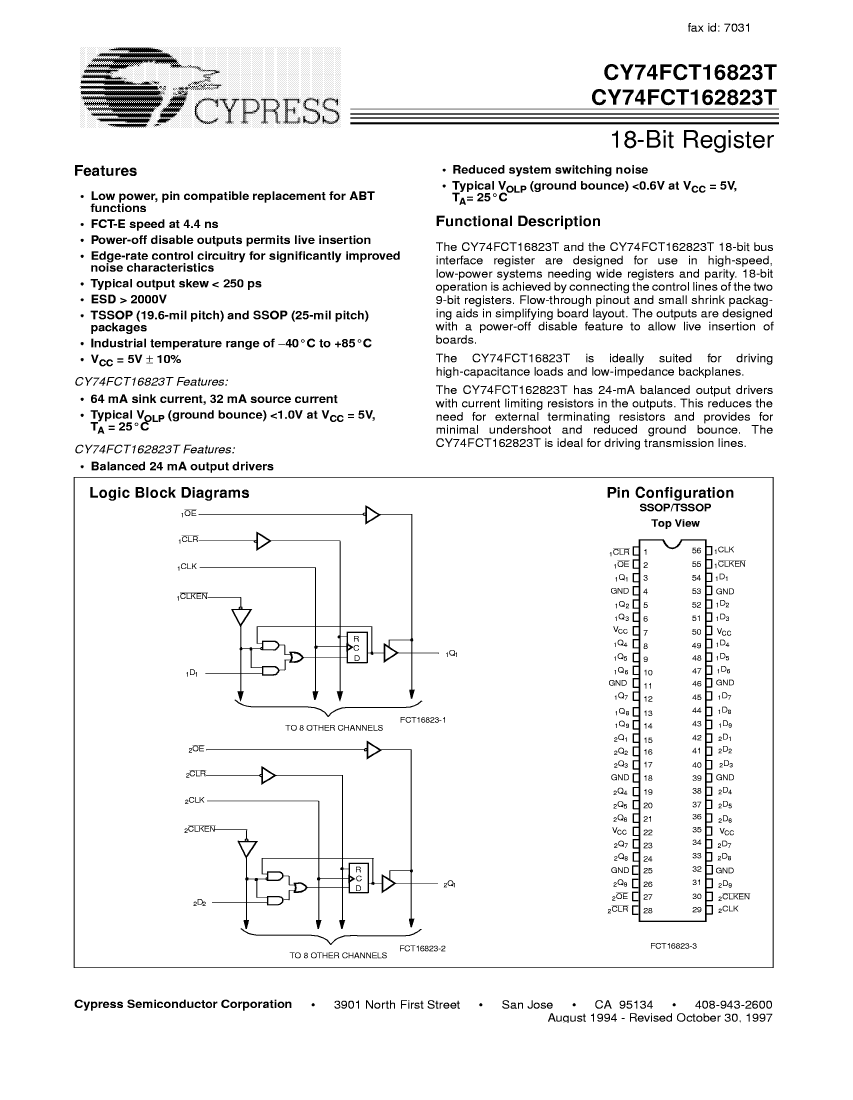

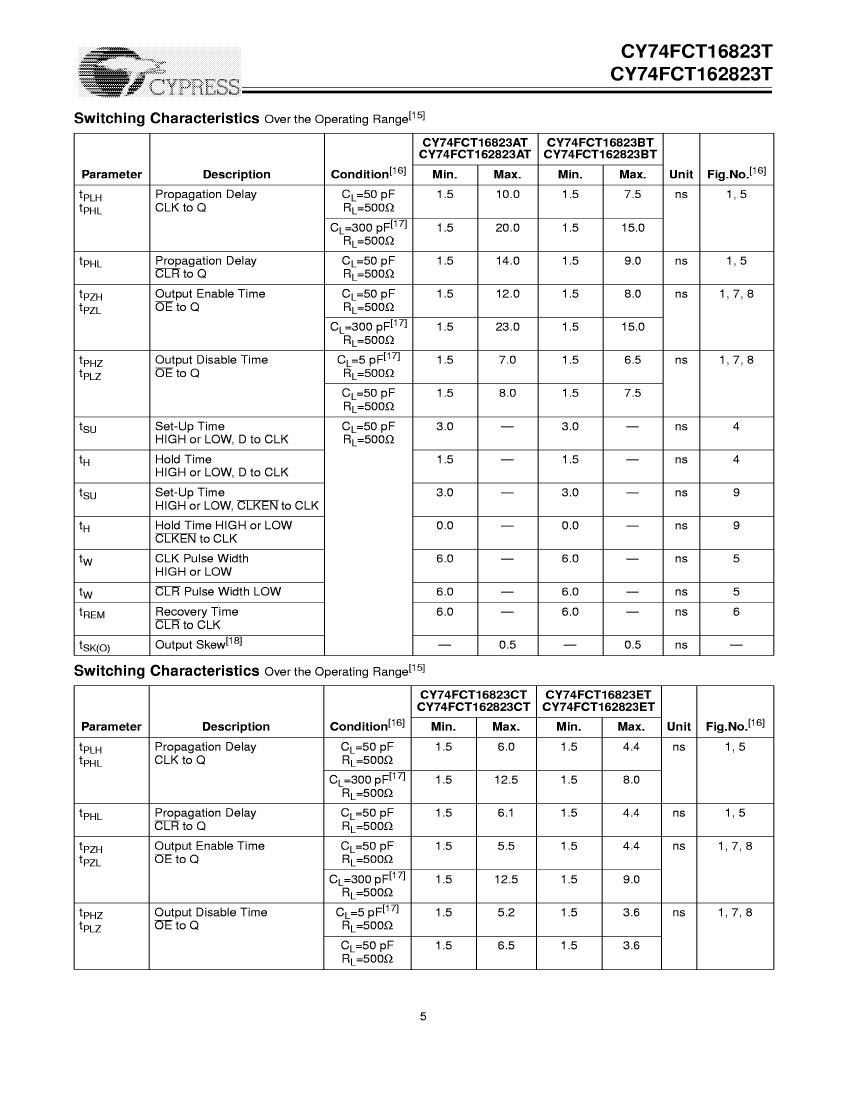

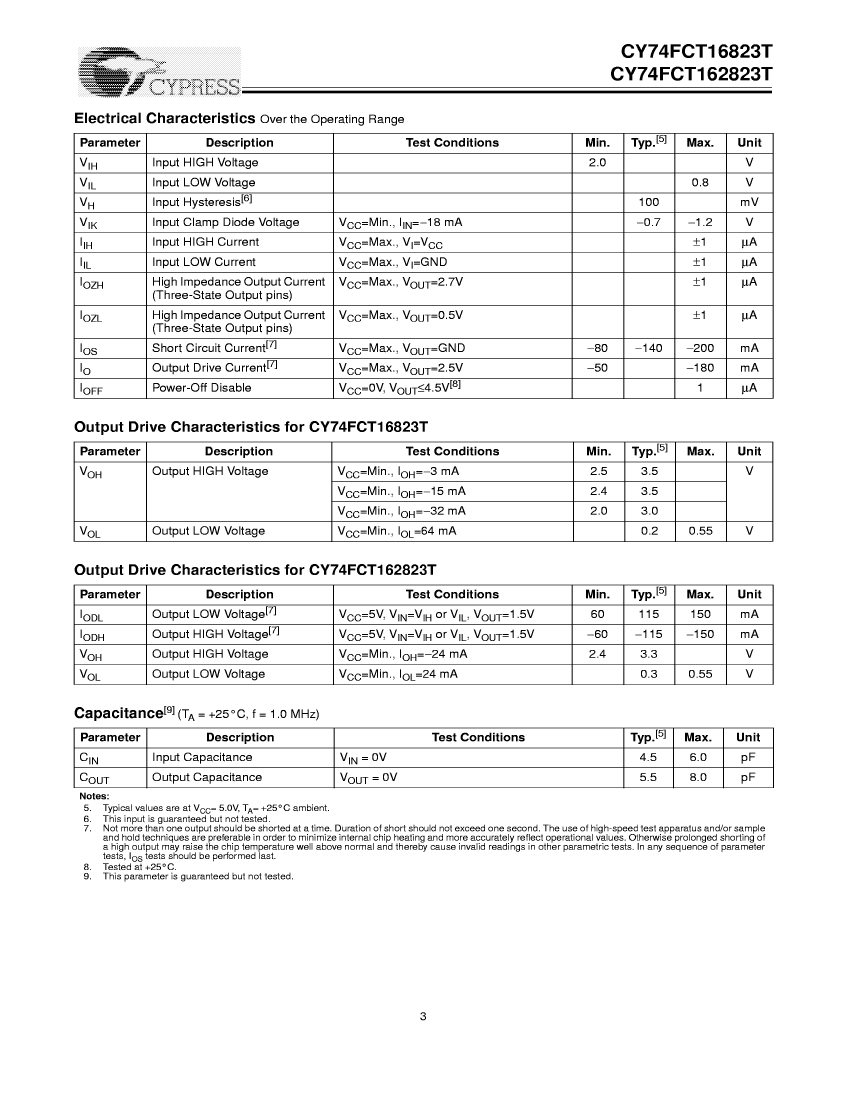

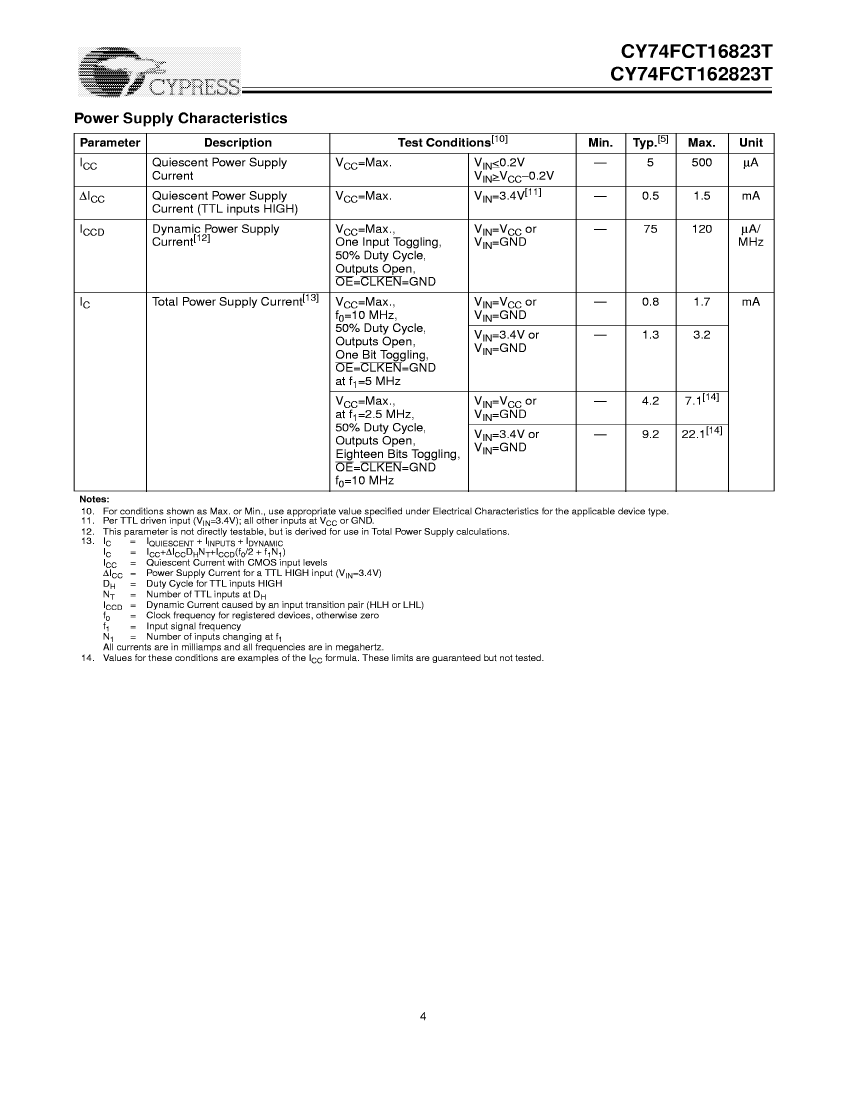

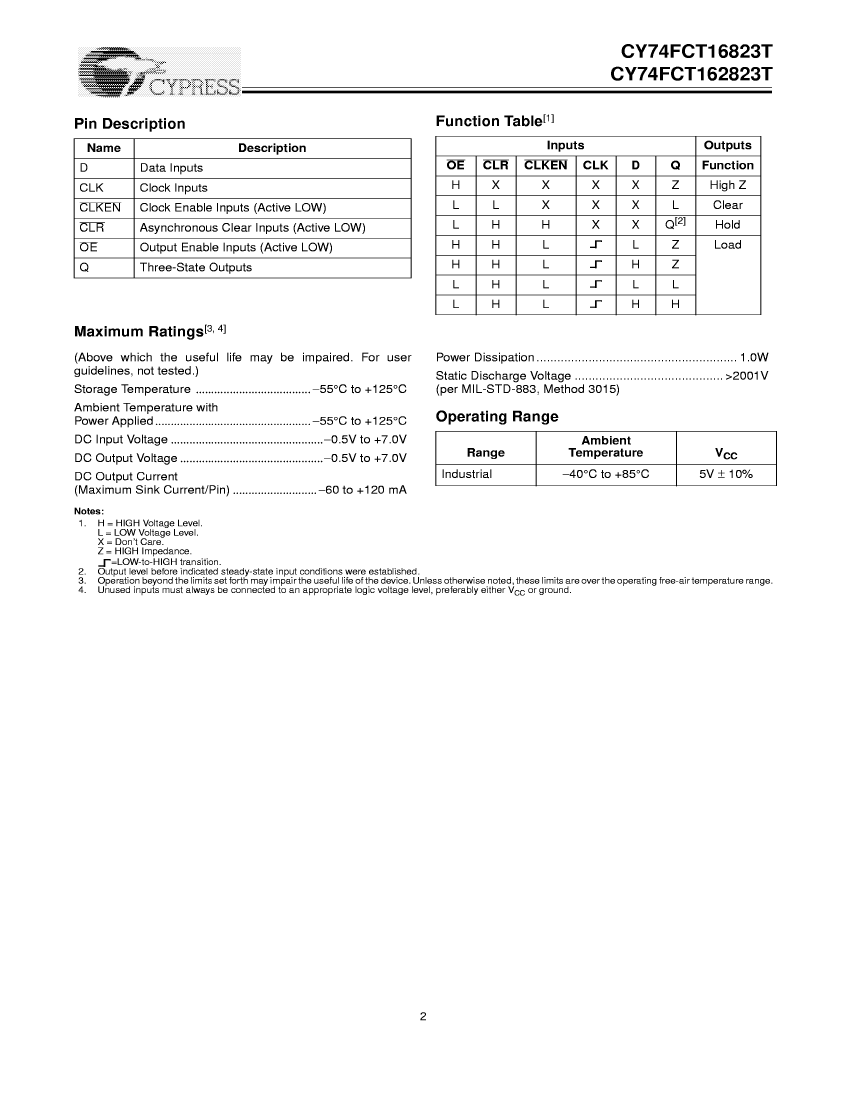

CY74FCT16823ATPAC: DescriptionBus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56; Categorylogic logic; File Size282KB，7 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY74FCT16823ATPAC Overview

Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56

CY74FCT16823ATPAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	TSSOP
package instruction	0.240 INCH, 0.0196 INCH PITCH, TSSOP-56
Contacts	56
Reach Compliance Code	not_compliant
Other features	WITH CLEAR AND CLOCK ENABLE
series	FCT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	14 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Humidity sensitivity level	1
Number of digits	9
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP56,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	220
power supply	5 V
Prop。Delay @ Nom-Sup	10 ns
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CY74FCT16823ATPAC Related Products

	CY74FCT16823ATPAC	CY74FCT162823BTPVC	CY74FCT162823CTPVC	CY74FCT16823ATPVC	CY74FCT162823CTPAC
Description	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	TSSOP	SSOP	SSOP	SSOP	TSSOP
package instruction	0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	0.300 INCH, 0.025 INCH PITCH, SSOP-56	0.300 INCH, 0.025 INCH PITCH, SSOP-56	SSOP, SSOP56,.4	0.240 INCH, 0.0196 INCH PITCH, TSSOP-56
Contacts	56	56	56	56	56
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	WITH CLEAR AND CLOCK ENABLE	WITH CLEAR AND CLOCK ENABLE	WITH CLEAR AND CLOCK ENABLE	WITH CLEAR AND CLOCK ENABLE	WITH CLEAR AND CLOCK ENABLE
series	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0	e0
length	14 mm	18.415 mm	18.415 mm	18.415 mm	14 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.064 A	0.024 A	0.024 A	0.064 A	0.024 A
Number of digits	9	9	9	9	9
Number of functions	2	2	2	2	2
Number of ports	2	2	2	2	2
Number of terminals	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SSOP	SSOP	TSSOP
Encapsulate equivalent code	TSSOP56,.3,20	SSOP56,.4	SSOP56,.4	SSOP56,.4	TSSOP56,.3,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	10 ns	7.5 ns	6 ns	10 ns	6 ns
propagation delay (tpd)	20 ns	15 ns	12.5 ns	20 ns	12.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2.794 mm	2.794 mm	2.794 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.1 mm	7.5 mm	7.5 mm	7.5 mm	6.1 mm
Peak Reflow Temperature (Celsius)	220	NOT SPECIFIED	-	NOT SPECIFIED	220
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	-
