40ST1041F Overview

40 PIN SMD ETHERNET 10/100 BASE-TX QUAD PORT TRANSFORMER

Preview

Download Datasheet

View All

Bothhandusa.com

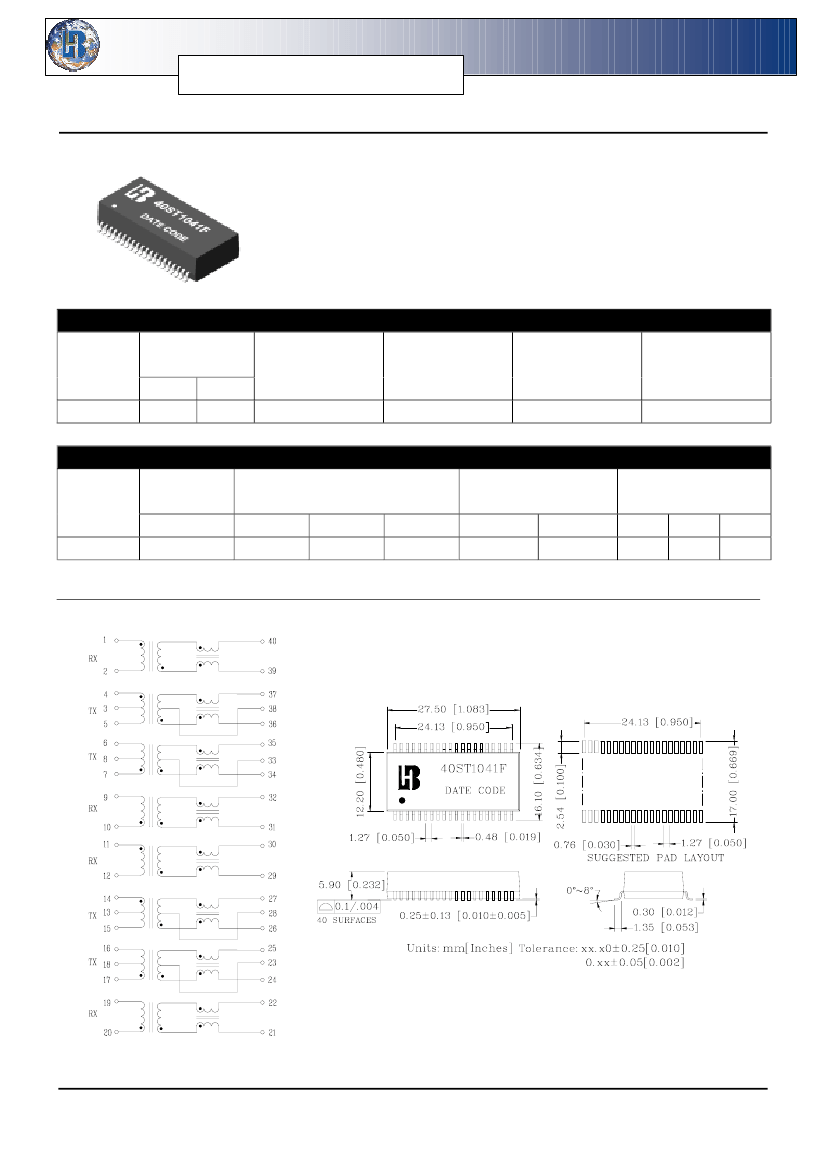

P/N: 40ST1041F DATA SHEET

Feature

Design for multi-port repeater and Ethernet switching Hub

application.

Customer designs available for specific application.

Operating temperature range :0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

40ST1041F

1CT:1CT

Turns Ratio

(±5%)

1:1

OCL(μH Min)

@100KHz/0.1Vrms

8mA DC/Bias

350

L.L

(μH Max)

0.45

Cw/w

(pF Max)

HI-POT

(Vrms)

1500

Continue

Part

Number

40ST1041F

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

0.3-30MHz

-16

Return Loss

(dB Min)

30-60MHz

-12

60-80MHz

-10

Cross talk

(dB Min)

0.3-60MHz

-40

60-100MHz

-35

DCMR

(dB Min)

60MHz 100MHz 200MHz

-37

-28

-25

Schematic

Mechanical
