40ST6489B: Description40 PIN SMD ETHERNET 10 BASE-T QUAD PORT PULSE TRANSFORMER; File Size186KB，1 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet Compare View All

40ST6489B Overview

40 PIN SMD ETHERNET 10 BASE-T QUAD PORT PULSE TRANSFORMER

Preview

Download Datasheet

View All

Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

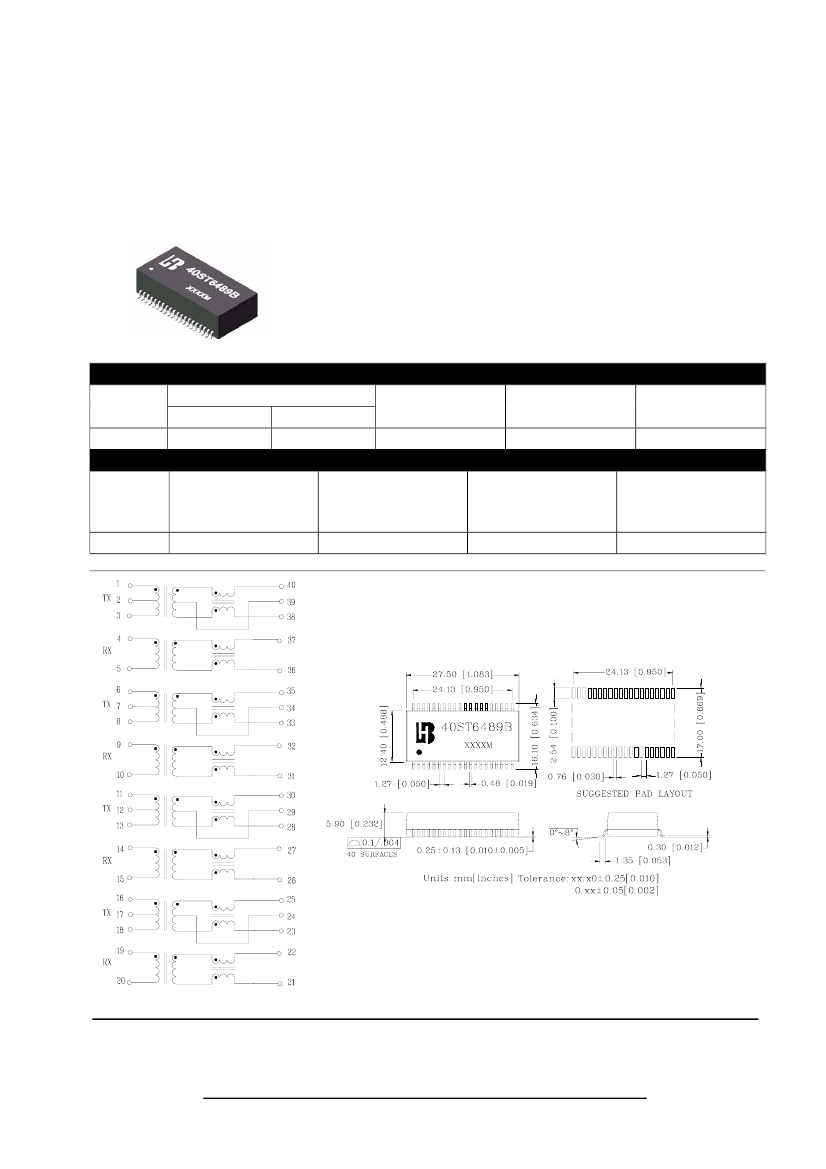

40 PIN SMD ETHERNET 10 BASE-T QUAD PORT PULSE TRANSFORMER

P/N: 40ST6489B DATA SHEET

Feature

Page : 1/1

40-PIN SMD Package compatible with IEEE 802.3 standard

& for the new Technology “Filterless” transceiver chips.

Designed for multiport repeater and switched Ethernet

Applications utilizing single RJ-45 connectors.

Operating temperature range : 0°C to +70°C.

Storage temperature range: -25°C to +125°C.

Electrical Specifications @ 25°C

Part

Number

40ST6489B

1CT:1.41CT

Turns Ratio

1:1

TX/RX OCL

(•H Min)

140

Pri/Sec L.L

(•H Max)

0.4

Pri/Sec CW/W

(pF Max)

Continue

Part

Number

40ST6489B

Peak Pulse Rating

(Volts)

Dissipation Rating

(m W)

Insulation Resistance

Ω)

10,000

HI-POT

(Vrms )

1500

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A0(02/06)
