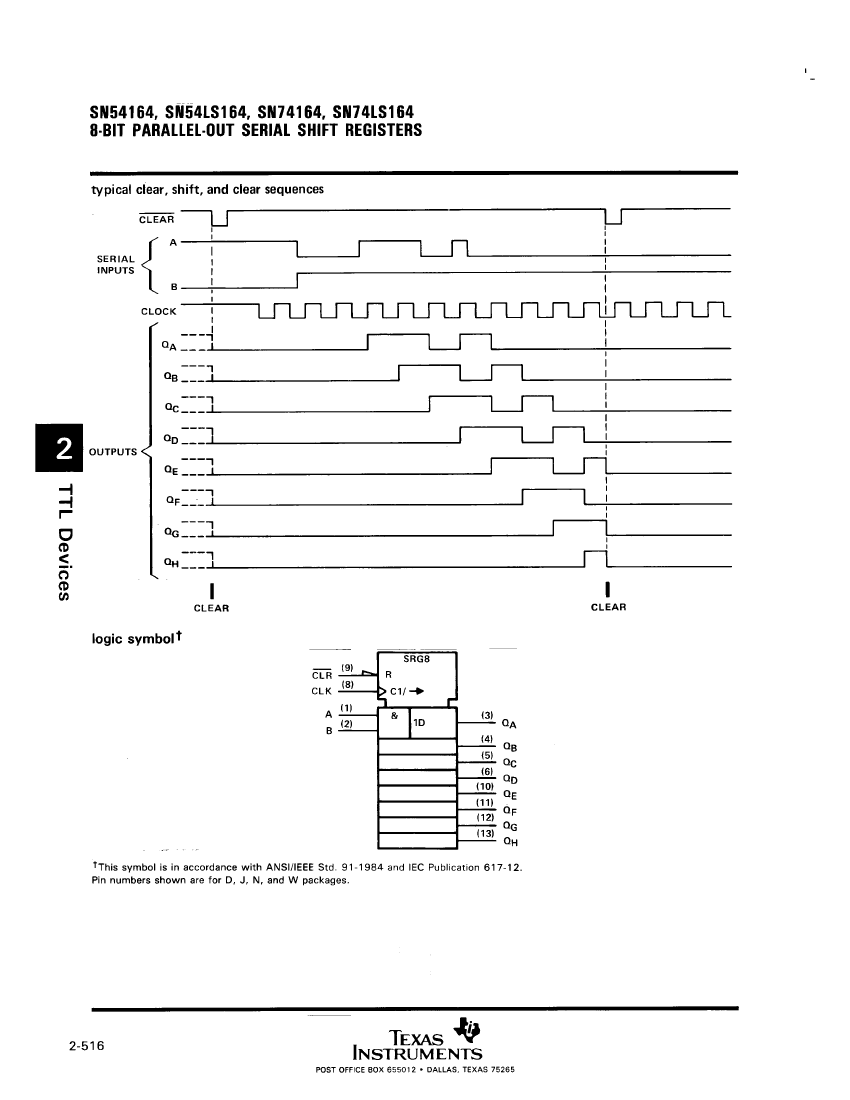

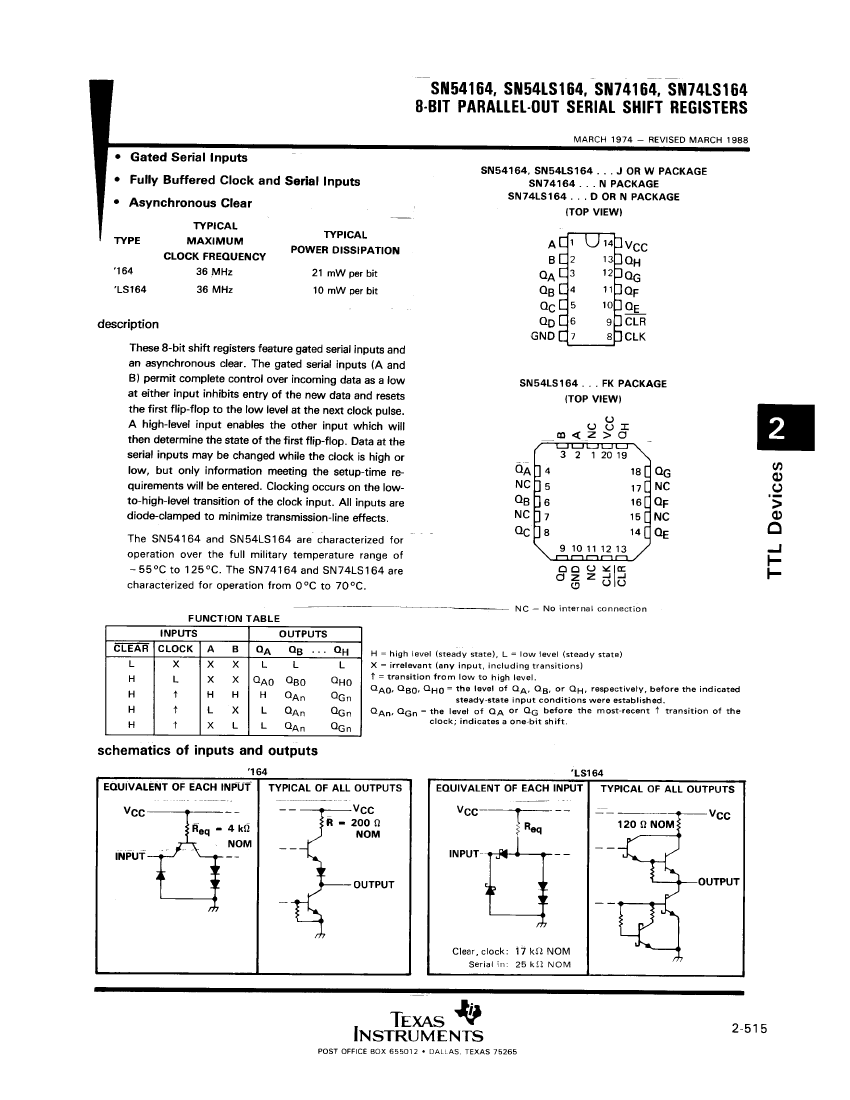

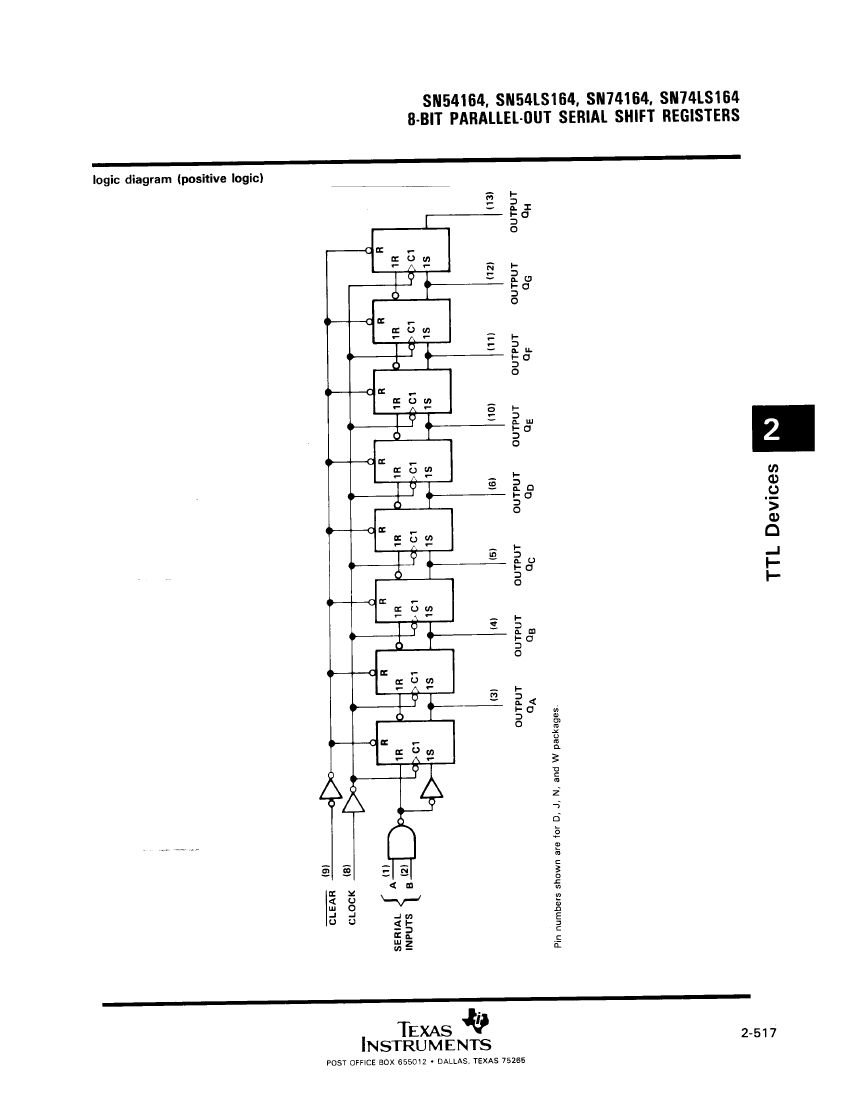

Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CQCC20, LCC-20

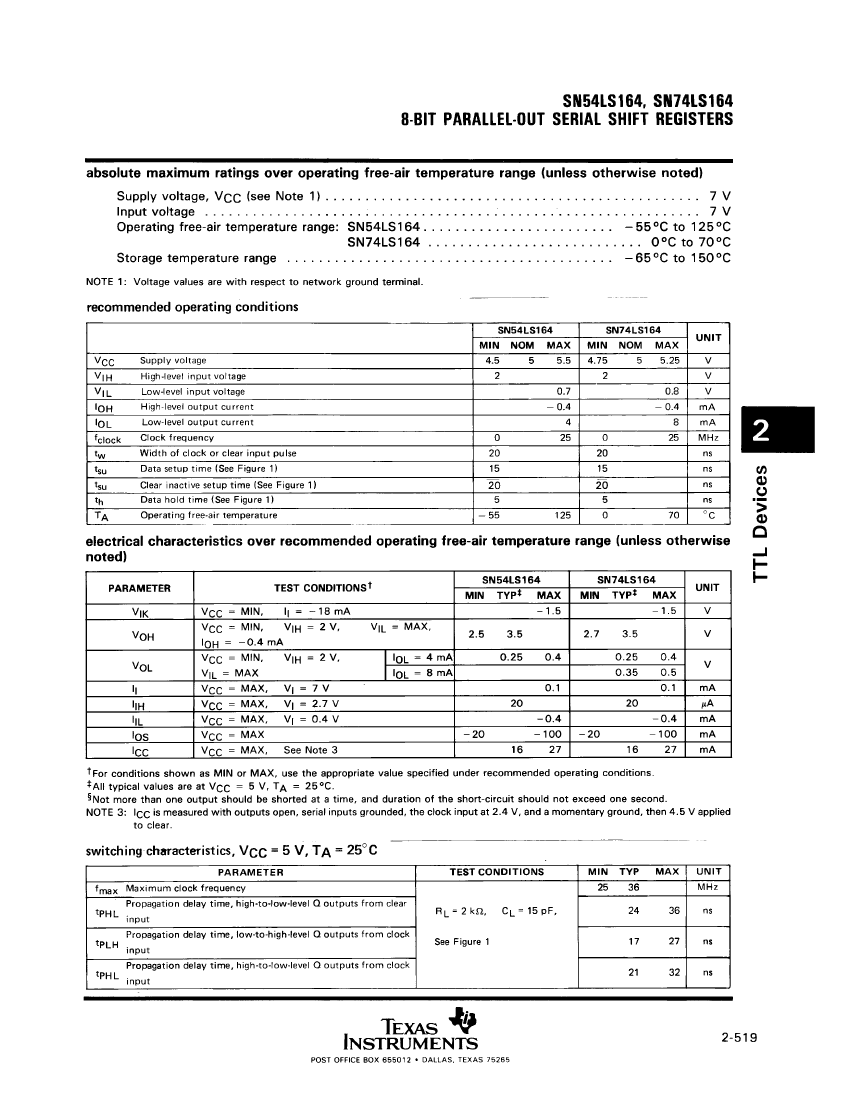

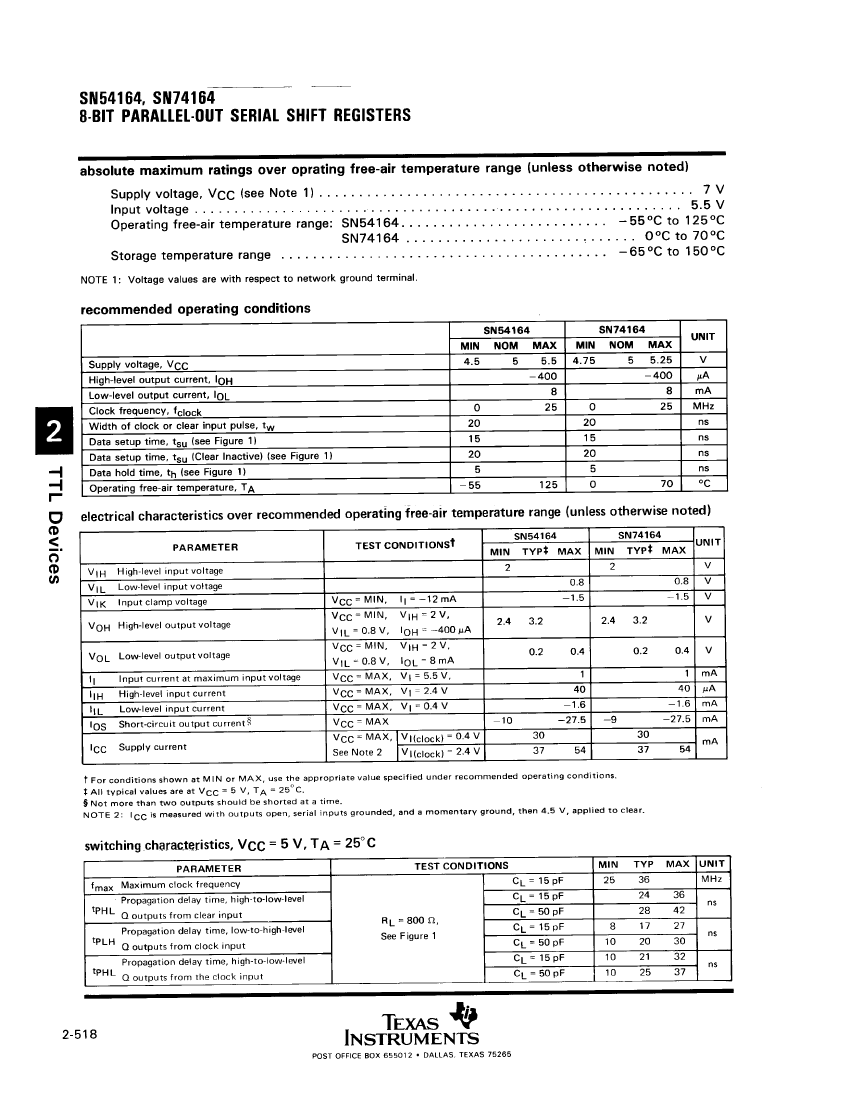

| Parameter Name | Attribute value |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| Counting direction | RIGHT |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| Logic integrated circuit type | SERIAL IN PARALLEL OUT |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| propagation delay (tpd) | 32 ns |
| Maximum seat height | 2.03 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Trigger type | POSITIVE EDGE |
| width | 8.89 mm |
| minfmax | 25 MHz |
| Base Number Matches | 1 |
| SN54LS164FK | SN54LS164W | |
|---|---|---|
| Description | Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CQCC20, LCC-20 | Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP14, DFP-14 |
| package instruction | QCCN, | DFP, |
| Reach Compliance Code | unknown | unknown |
| Counting direction | RIGHT | RIGHT |
| series | LS | LS |
| JESD-30 code | S-CQCC-N20 | R-GDFP-F14 |
| length | 8.89 mm | 9.21 mm |
| Logic integrated circuit type | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT |
| Number of digits | 8 | 8 |
| Number of functions | 1 | 1 |
| Number of terminals | 20 | 14 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Output polarity | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | DFP |
| Package shape | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | FLATPACK |
| propagation delay (tpd) | 32 ns | 32 ns |
| Maximum seat height | 2.03 mm | 2.03 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | YES | YES |
| technology | TTL | TTL |
| Temperature level | MILITARY | MILITARY |
| Terminal form | NO LEAD | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE |
| width | 8.89 mm | 6.29 mm |
| minfmax | 25 MHz | 25 MHz |
