SKKQ3000/18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKKQ3000/18

SKKQ3000/18: DescriptionSilicon Controlled Rectifier, 1800V V(DRM), 1800V V(RRM), 2 Element, CASE C13, SEMISTART-8; CategoryAnalog mixed-signal IC Trigger device; File Size512KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKQ3000/18 Overview

Silicon Controlled Rectifier, 1800V V(DRM), 1800V V(RRM), 2 Element, CASE C13, SEMISTART-8

SKKQ3000/18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	FLANGE MOUNT, R-XUFM-X8
Contacts	8
Manufacturer packaging code	CASE C13
Reach Compliance Code	compliant
Configuration	ANTI-PARALLEL, 2 ELEMENTS
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	0
Description of screw terminals	0
Maximum holding current	500 mA
JESD-30 code	R-XUFM-X8
Maximum leakage current	320 mA
On-state non-repetitive peak current	30000 A
Number of components	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Off-state repetitive peak voltage	1800 V
Repeated peak reverse voltage	1800 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

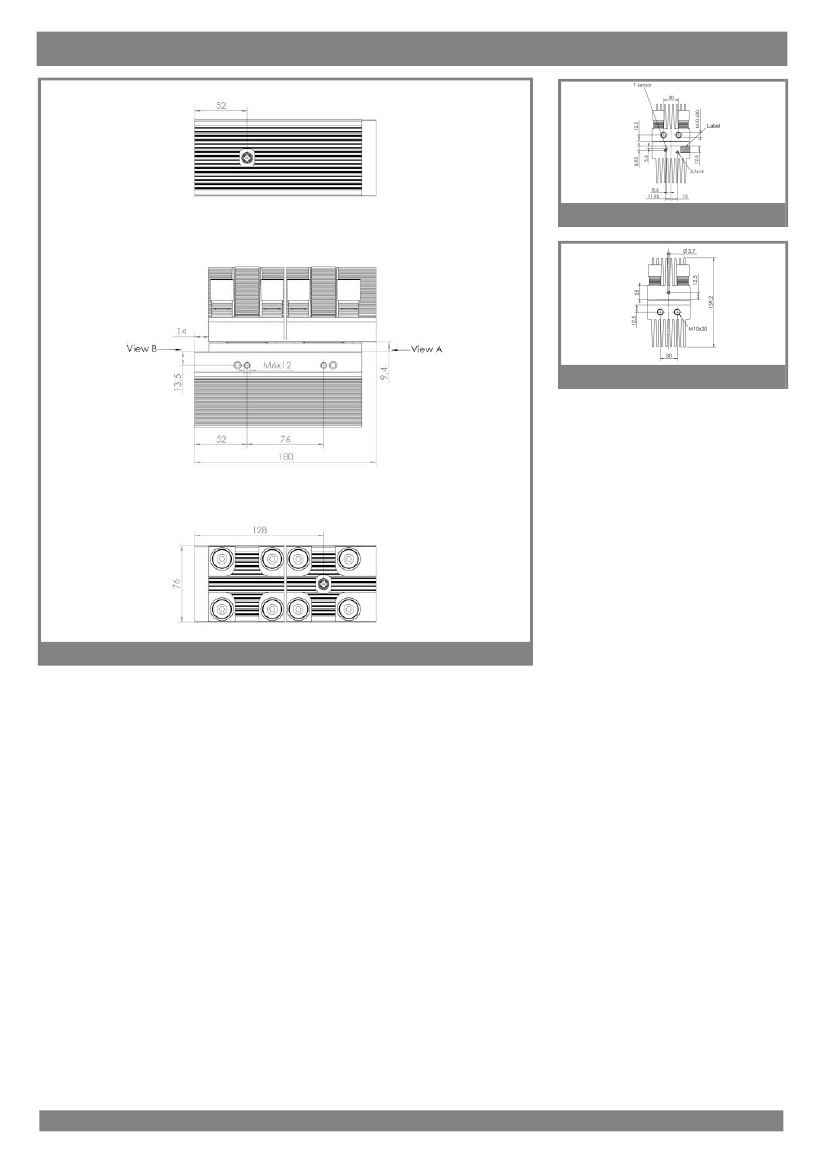

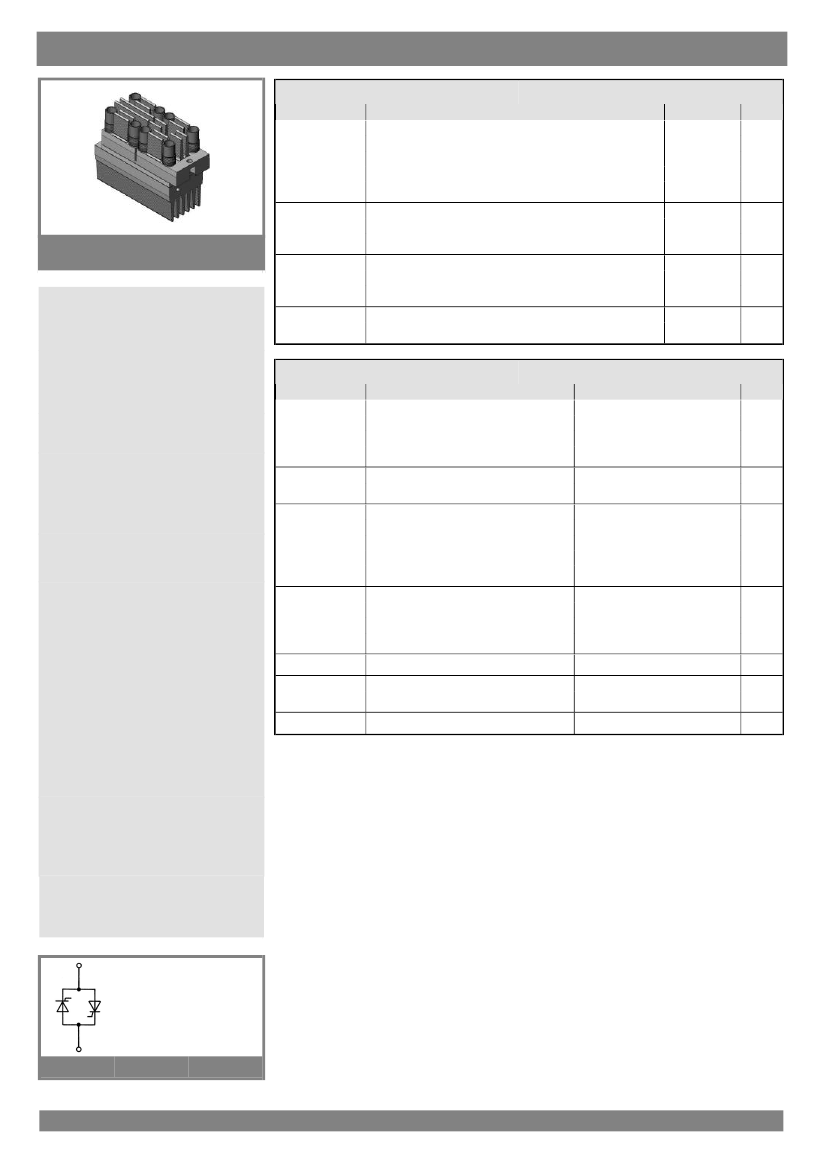

SKKQ 3000

THYRISTOR BRIDGE,SCR,BRIDGE

Absolute Maximum Ratings

Symbol

Conditions

Values

Units

SEMiSTART

Antiparallel thyristors for

softstart

SKKQ 3000

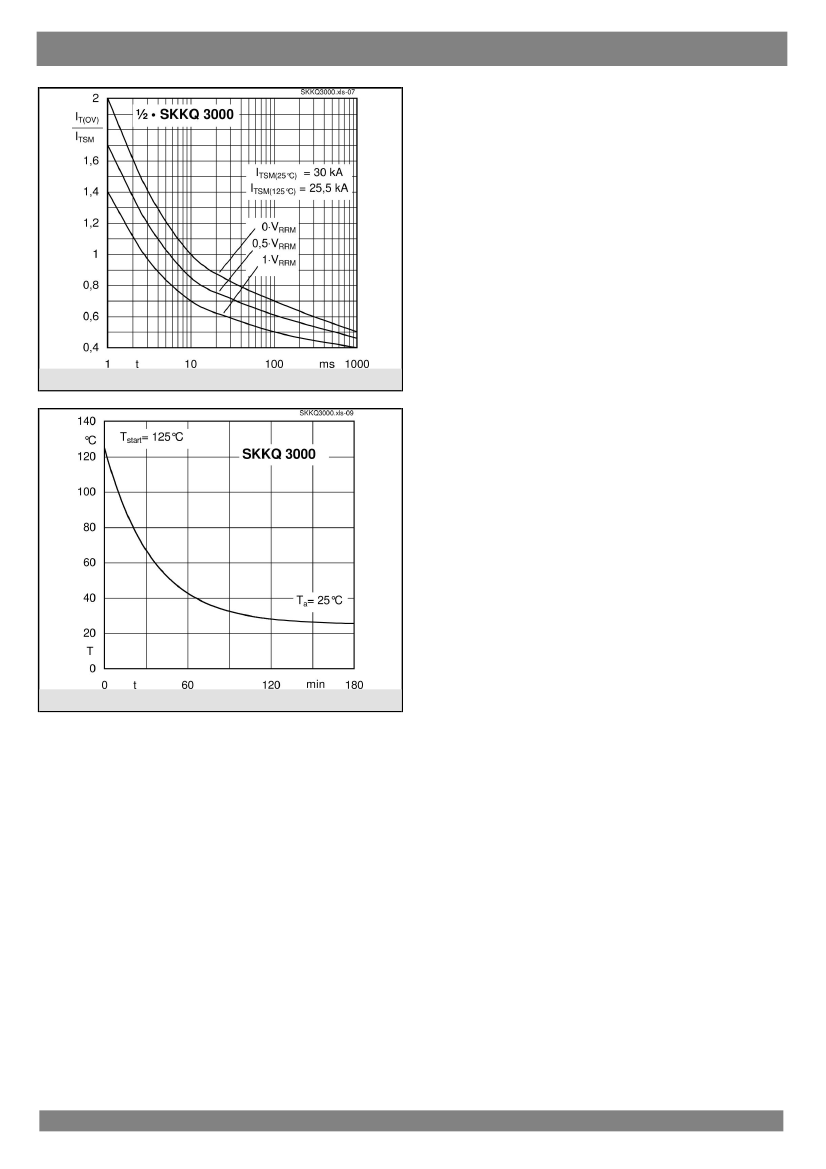

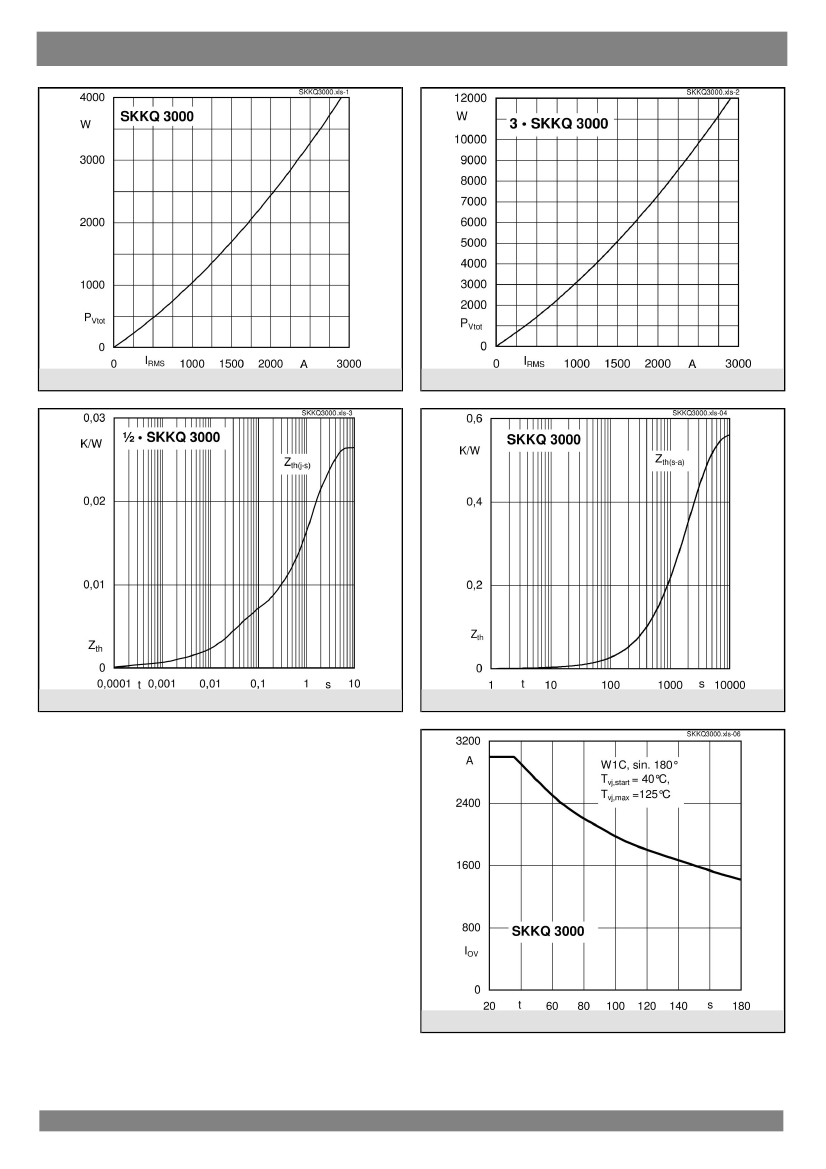

Characteristics

Symbol

Conditions

min.

typ.

max.

Units

Features

Typical Applications*

Remarks

W1C

26-02-2009 GIL

SKKQ3000/18 Related Products

	SKKQ3000/18	SKKQ3000/14
Description	Silicon Controlled Rectifier, 1800V V(DRM), 1800V V(RRM), 2 Element, CASE C13, SEMISTART-8	Silicon Controlled Rectifier, 1400V V(DRM), 1400V V(RRM), 2 Element, CASE C13, SEMISTART-8
Is it Rohs certified?	conform to	conform to
package instruction	FLANGE MOUNT, R-XUFM-X8	FLANGE MOUNT, R-XUFM-X8
Contacts	8	8
Manufacturer packaging code	CASE C13	CASE C13
Reach Compliance Code	compliant	compliant
Configuration	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS
Maximum DC gate trigger current	250 mA	250 mA
Maximum DC gate trigger voltage	3 V	3 V
Maximum holding current	500 mA	500 mA
JESD-30 code	R-XUFM-X8	R-XUFM-X8
Maximum leakage current	320 mA	320 mA
On-state non-repetitive peak current	30000 A	30000 A
Number of components	2	2
Number of terminals	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Off-state repetitive peak voltage	1800 V	1400 V
Repeated peak reverse voltage	1800 V	1400 V
surface mount	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR
Base Number Matches	1	1
