FMB34DYFR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FMB34DYFR

FMB34DYFR: DescriptionCard Edge Connector, 68 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size411KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

FMB34DYFR Overview

Card Edge Connector, 68 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

FMB34DYFR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.37 inch
subject depth	0.61 inch
body length	2.54 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Durability	500 Cycles
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e4
Manufacturer's serial number	FMB34DYFR
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	12.7 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	68
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

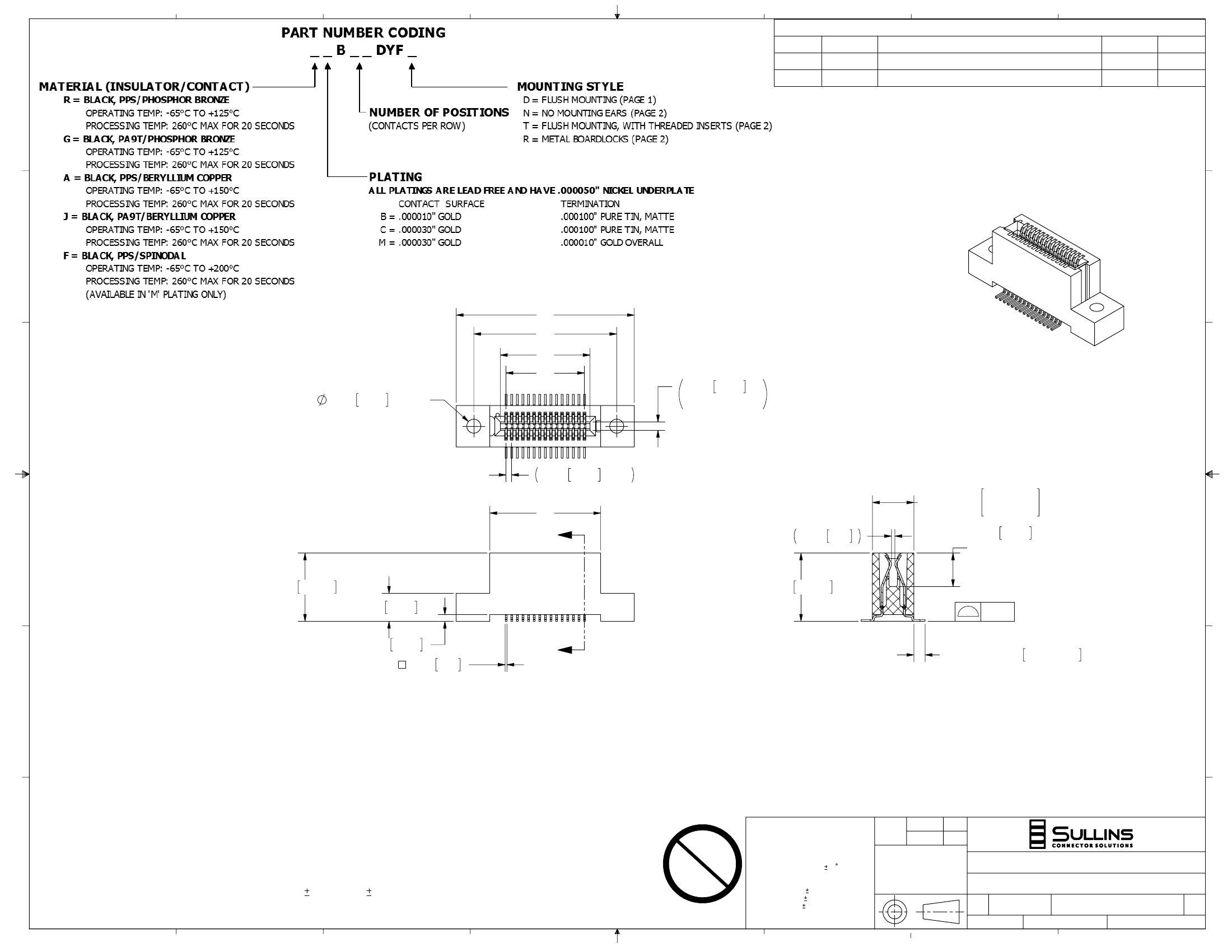

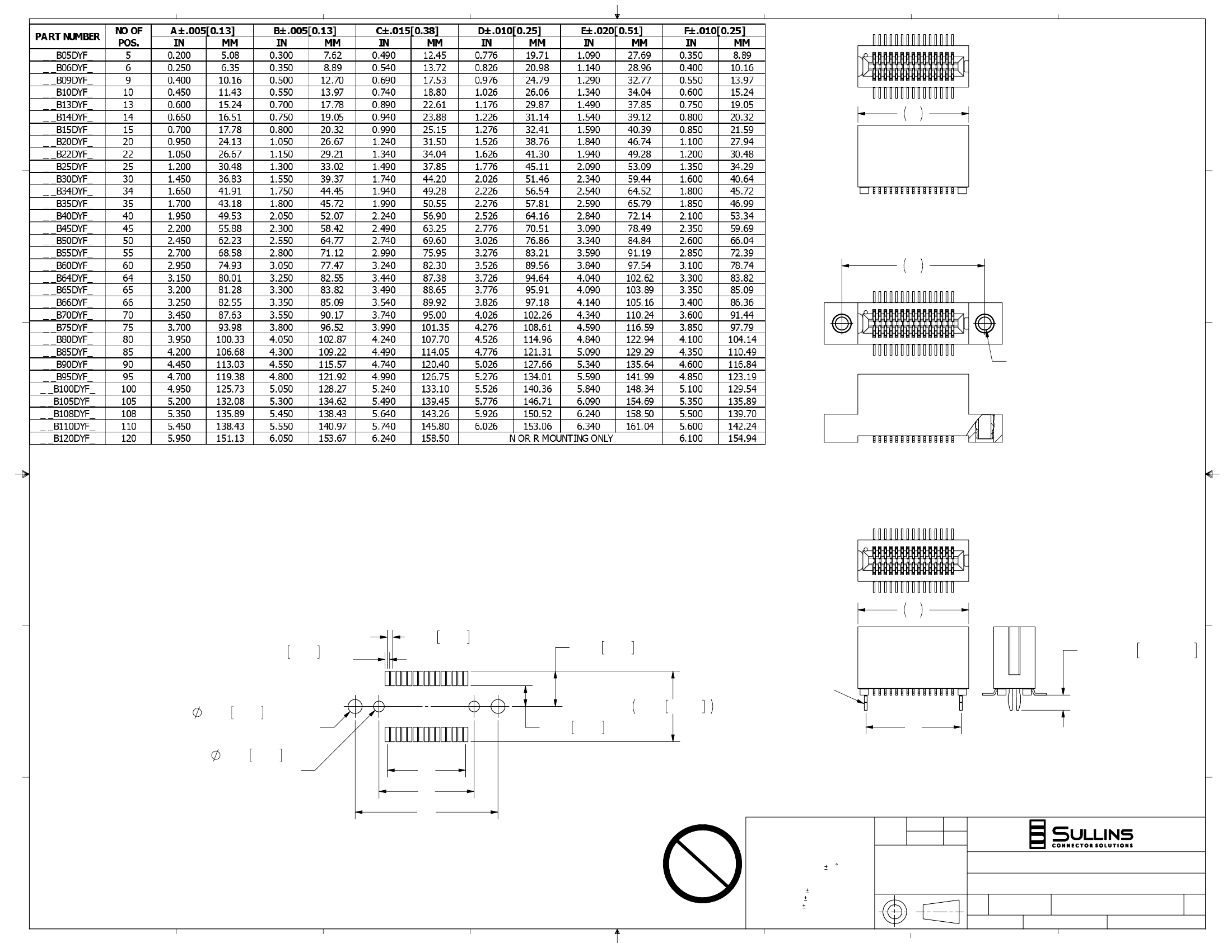

REVISIONS

REV.

ECO. NO

2701

2847

DESCRIPTION

ADD 'F' MATERIAL & 'M' PLATING OPTIONS

ADD 'J' MATERIAL CODE OPTION

DATE

11/14/2012

5/29/2014

JHSU

.125 3.18 THRU

.075 1.91

SEE NOTE 13

.050 1.27 TYP

+.005

+.13

.370

9.40

- .015

- .38

.029 .74

.300 7.62

INSERTION

DEPTH

.610 15.49

.250 6.35

.060 1.52

.016 .41

.610 15.50

.010

2X .100±.025 2.54±.64

SECTION A-A

_ _B_ _DYFD

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING

2. CONTACT MATERIAL: SEE PART NUMBER CODING

3. PLATING: SEE PART NUMBER CODING

4. OPERATING TEMPERATURE: SEE PART NUMBER CODING

5. PROCESSING TEMP: SEE PART NUMBER CODING

6. UL FLAMMABILITY RATING: 94V-0

7. OPERATING VOLTAGE: 300 VAC MINIMUM AT SEA LEVEL

8. CURRENT RATING: 1 AMP PER CONTACT

9. CONTACT RESISTANCE: 30 MILLI OHMS MAX

10. INSULATION RESISTANCE: 5000 MEGA OHM

11. DURABILITY: 500 CYCLES MIN

12. CONNECTOR IDENTIFICATION: THE PART SHALL BE MARKED WITH A PART NUMBER AND LOT CODE

13. BOARD THICKNESS ACCOMMODATED: .062 .008[1.57 0.20]

14. INSERTION FORCE: 6 OZ MAX PER CONTACT PAIR WHEN USING A .062[1.57] TEST BLADE

15. WITHDRAWAL FORCE: 1/2 OZ MIN PER CONTACT PAIR USING .062[1.57] PCB

CUSTOMER COPY

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME

DIMENSIONS ARE IN INCHES [MM]

01/06/09 TT

TOLERANCES:

ANGULAR:

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

TITLE

EDGECARD, .050" CC, HP, SMT

CAGE CODE

DECIMALS

.XX= .02 [.5]

.XXX= .005 [.13]

.XXXX= .0005 [.013]

PART NUMBER

SIZE

_ _B_ _DYF_

DWG. NO.

SCALE: 2:1

54453

C11422

REV

SHEET 1 OF 2

FILE NAME: C11422, _ _B_ _DYF_, SMT. STD ASSY
