“LAN-MATE”SERIES
SINGLE RJ45 CONNECTOR MODULE
P/N: LU1S000 LF
Feature
l
l
l
Page : 1/2
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6
+
, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.

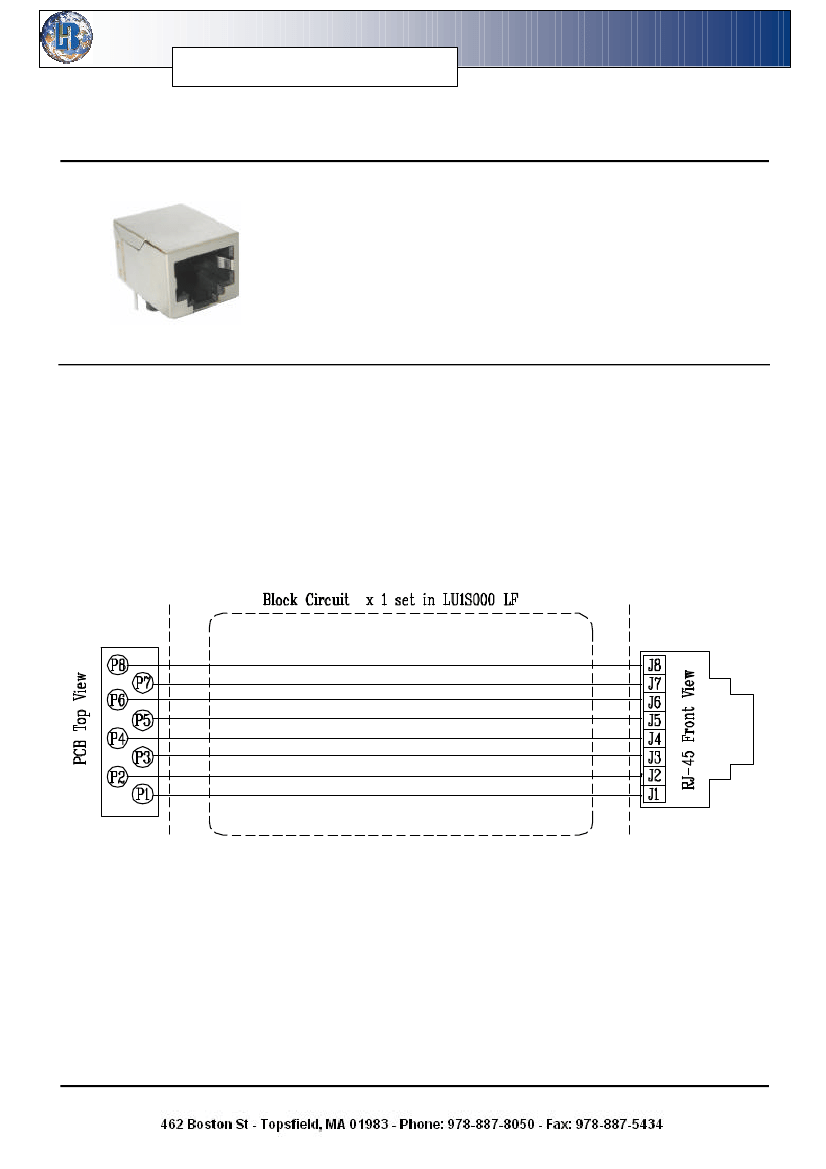

Schematic
Bothhandusa.com
“LAN-MATE”SERIES
SINGLE RJ45 CONNECTOR MODULE
P/N: LU1S000 LF
Mechanical
Page : 2/2
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u? inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.

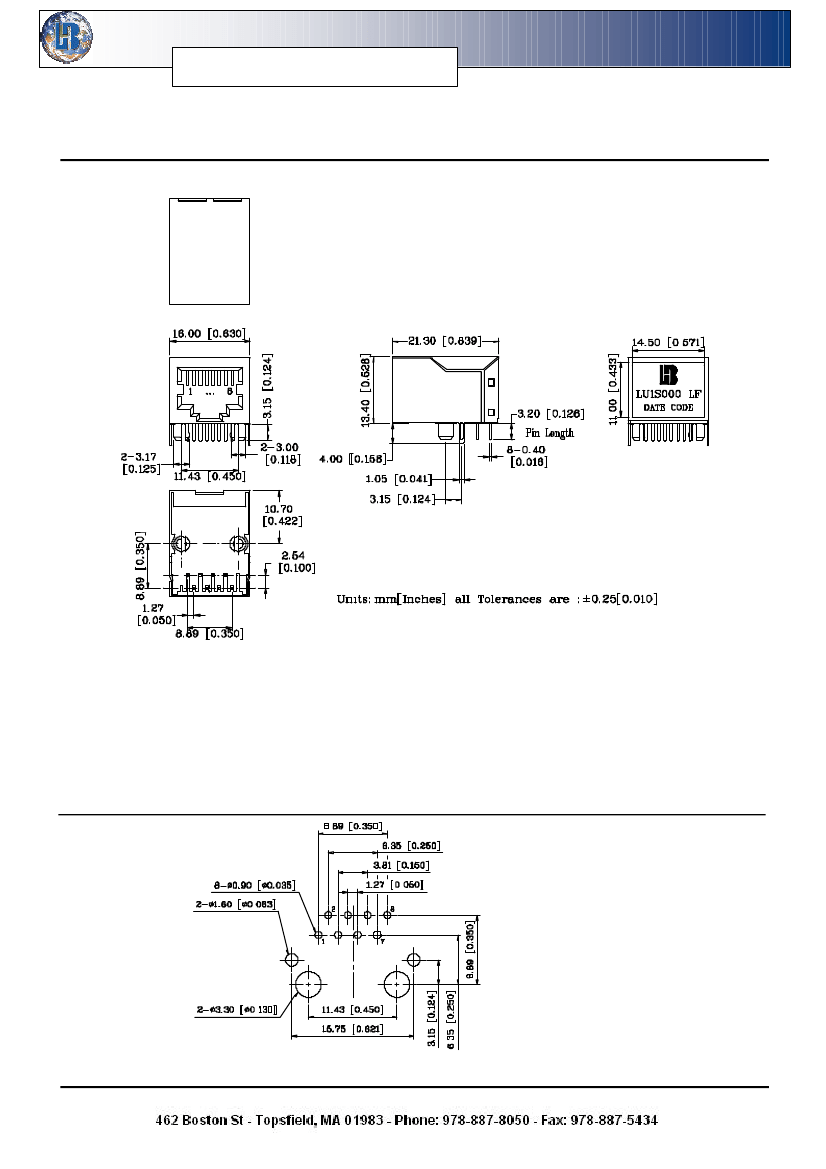

PCB Layout Mounting Hole(Top View)
Units:mm[Inches]
Tolerances:xx.x0±0.25[0.010]
0.xx±0.05[0.002]
