LU1T041CVLF: DescriptionSINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS; File Size112KB，2 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

LU1T041CVLF Overview

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

Preview

Download Datasheet

View All

Bothhandusa.com

P/N: LU1T041CV LF

Feature

Complies with requirement of IEEE 802.3u standards.

RJ 45 connector with 10/100 BASE-TX magnetic.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

TX

Turns Ratio

(±5%)

RX

OCL (uH Min)

@ 100KHz/0.1V

with 8mA DC Bias

350

C

W/W

(pF Max)

28

L.L

(uH Max)

0.4

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

2000

HI-POT

(Vrms)

LU1T041CV LF 1CT:1CT 1CT:1CT

Continue

Part

Number

LU1T041CV LF

-16

-14

Return Loss

(dB Min)

Cross talk

(dB Min)

CMR

(dB Min)

30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz

-13.5

-13

-10

-40

-35

-30

-25

-20

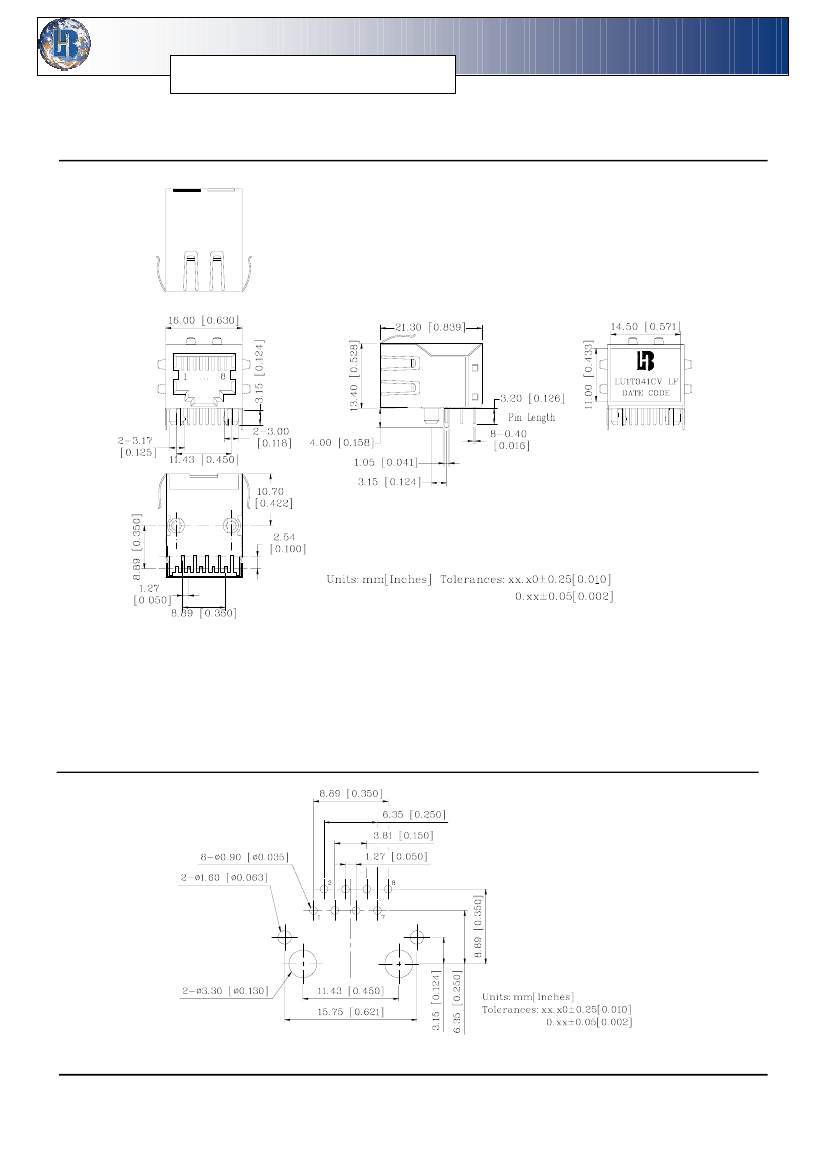

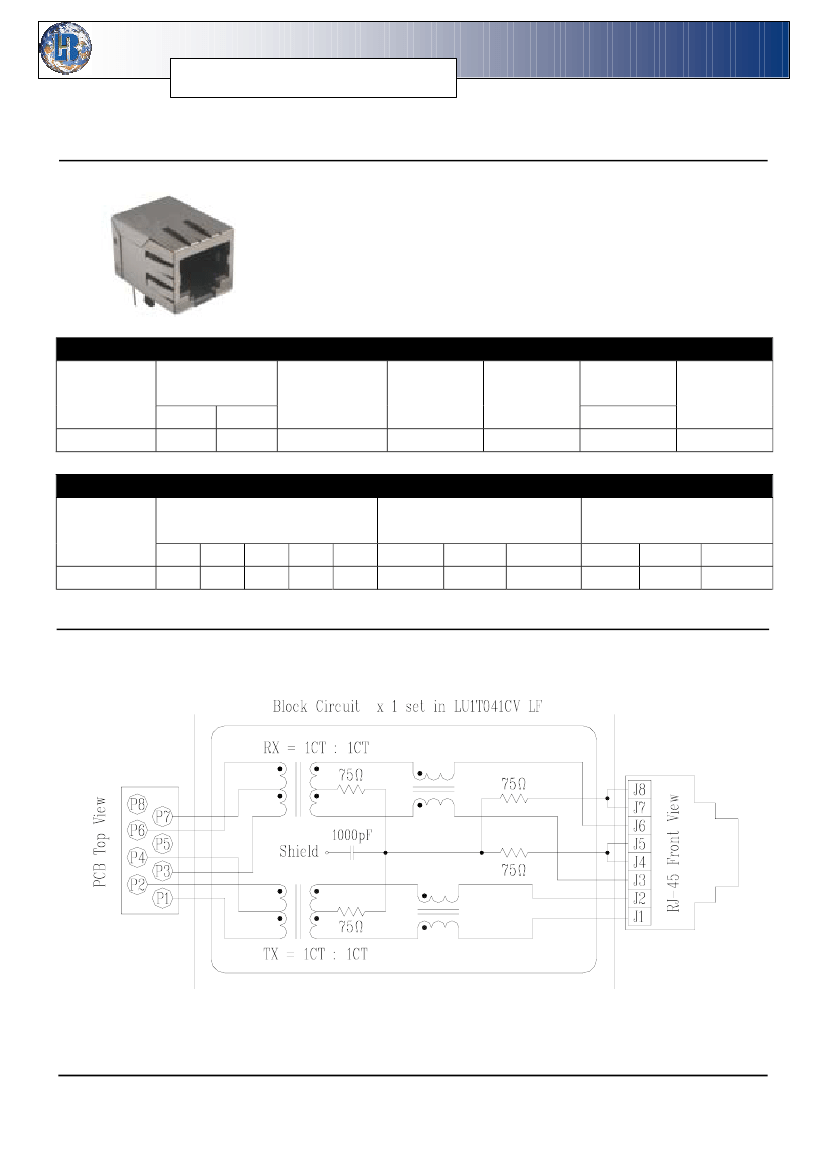

Schematic
