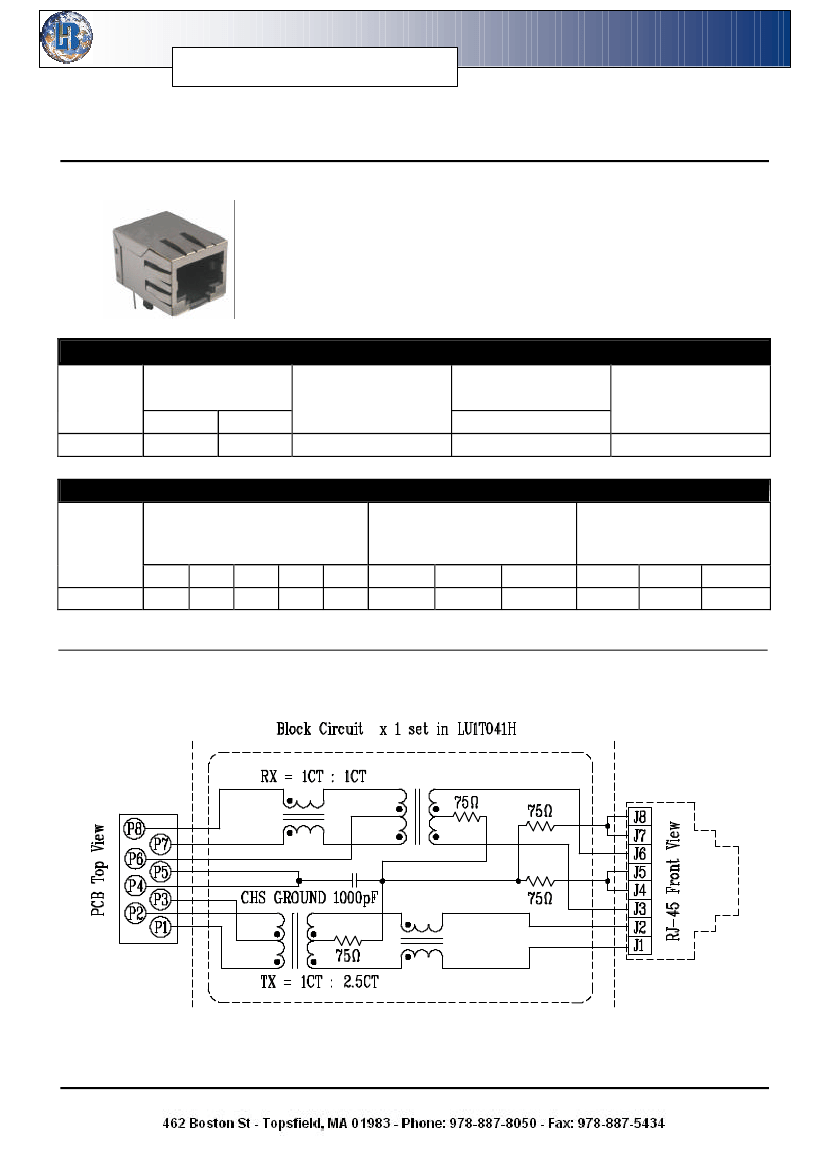

Bothhandusa.com
“LAN-MATE” SERIES
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU1T041H
Feature
l
l
l
l
l
l
Page : 1/2
RJ-45 connector integrated with transformer/impedance
resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 10/100 BASE transmission over UTP-5 cable.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
Turns Ratio
(±5%)
TX
RX
1CT:1CT
OCL (uH Min)
@ 100 KHz/0.1V
with 8mA DC Bias
350
Insertion Loss
(dB Max)
0.3-100MHz
-1.15
HI-POT
(Vrms)
1500
LU1T041H
1CT:2.5CT
Continue
Part
Number
Return Loss
(dB Min)
Cross talk
(dB Min)
CMR
(dB Min) TX/RX
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
LU1T041H
-16
-14
-13.5
-13
-10
-40
-35
-30
-30
-25
-20
Schematic
Bothhandusa.com
“LAN-MATE” SERIES
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU1T041H

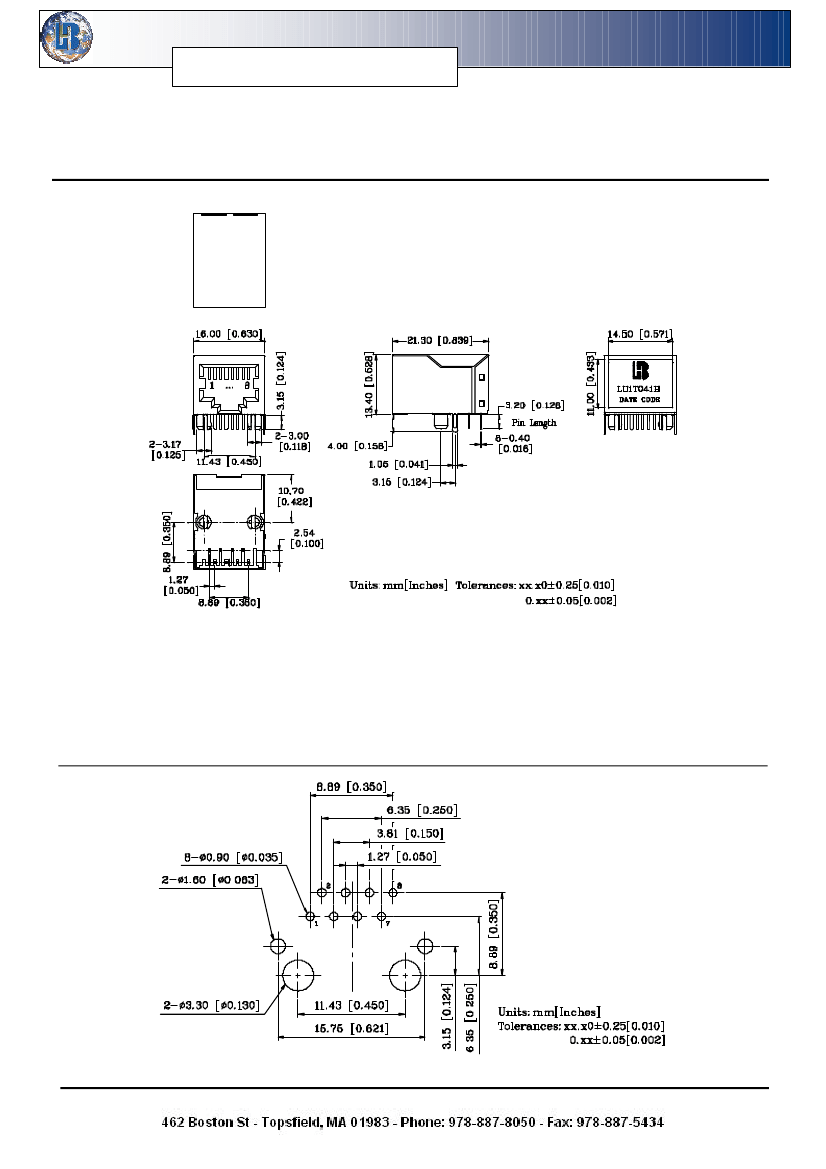

Mechanical
Page : 2/2
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u" inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.
PCB Layout Mounting Hole(Top View)
