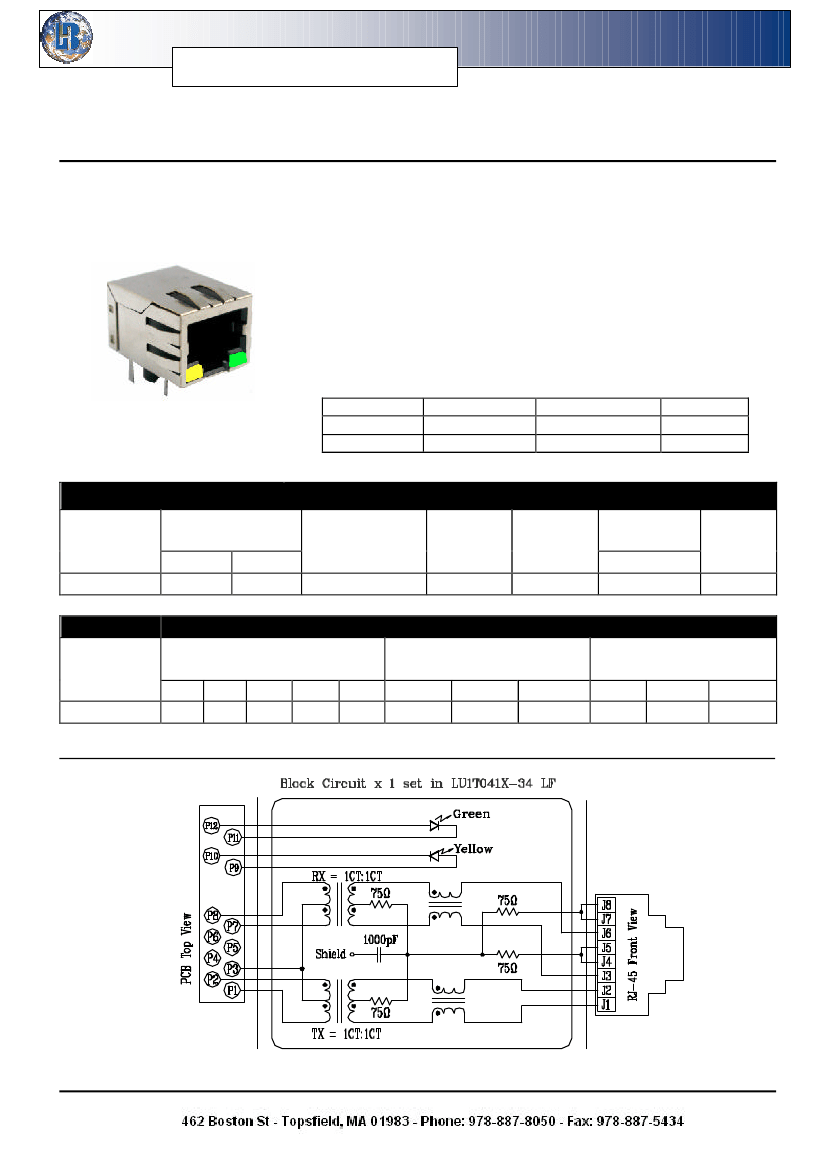

“LAN-MATE” SERIES

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS

P/N: LU1T041X-34 LF

Page : 1/ 2

Feature

Complies with requirement of IEEE802.3u standards.

RJ 45 connector with 10/100 BASE-TX magnetic.

Meet UL safety standard.

Includes integrated 2 LEDS(option).

LEDS are isolated to reduce cross talk and electro- magnetics

interference.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +85℃.

Recommended panel

Part Number Standard LED Forward*V(Max)

YELLOW

2.6V

GREEN

2.6V

*With a forward current 20mA

Electrical Specifications @ 25°C

Part

Number

Turns Ratio

(±5%)

1CT:1CT

OCL (uH Min)

@ 100KHz/0.1V

with 8mA DC Bias

350

W/W

(pF Max)

L.L

(uH Max)

0.5

Insertion Loss

(dB Max)

0.3-100MHz

-0.8

HI-POT

(Vrms)

1500

(TYP)

2.1V

2.2V

LU1T041X-34 LF 1CT:1CT

Continue

Part

Number

LU1T041X-34 LF

Return Loss

(dB Min)

-16

-14

-13.5

-13

-10

-40

Cross talk

(dB Min)

-35

-30

CMR

(dB Min)

-25

-20

30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz

Schematic
