“LAN-MATE” SERIES

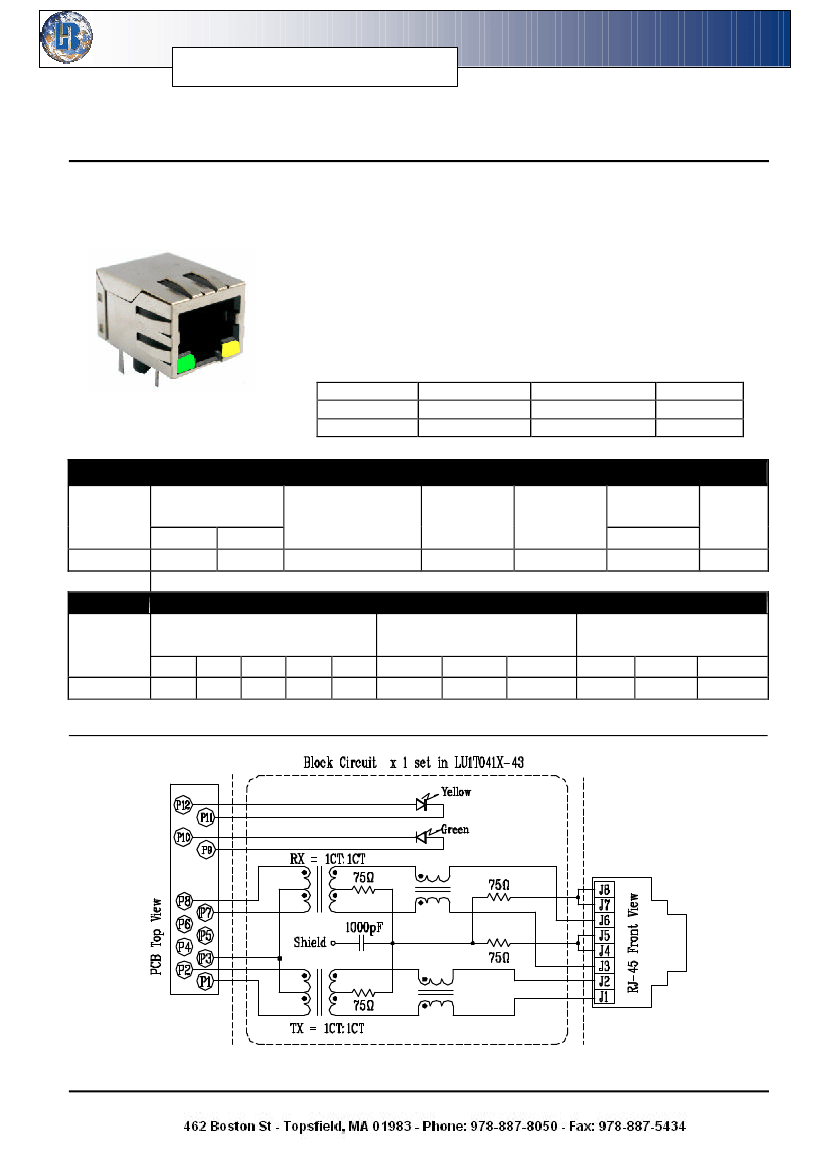

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS
P/N: LU1T041X-43
Page : 1/2
Feature
l
l
l
l
l
l
l
l
Complies with requirement of IEEE802.3u standards.
RJ 45 connector with 10/100 BASE-TX magnetic.
Meet UL safety standard.
Includes integrated 2 LEDS(option).
LEDS are isolated to reduce cross talk and electro-
magnetics
interference.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +85℃.
Recommended panel
Part Number Standard LED Forward*V(Max)
3
YELLOW
2.6V
4
GREEN
2.6V
*With a forward current 20mA
Electrical Specifications @ 25°C
Part
Number
Turns Ratio
(±5%)
TX
RX
1CT:1CT
OCL (uH Min)
@ 100KHz/0.1V
with 8mA DC Bias
350
C
W/W
(pF Max)
56
L.L
(uH Max)
0.5
Insertion Loss
(dB Max)
0.3-100MHz
-0.8
HI-POT
(Vrms)
1500
(TYP)
2.1V
2.2V
LU1T041X-43 1CT:1CT
Continue
Part
Number
LU1T041X-43
Return Loss
(dB Min) TX/RX
-16
-14
-13.5
-13
-10
-40
Cross talk
(dB Min)
-35
-30
-30
CMR
(dB Min)
-25
-20
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
Schematic
Bothhandusa.com
“LAN-MATE” SERIES
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS
P/N: LU1T041X-43

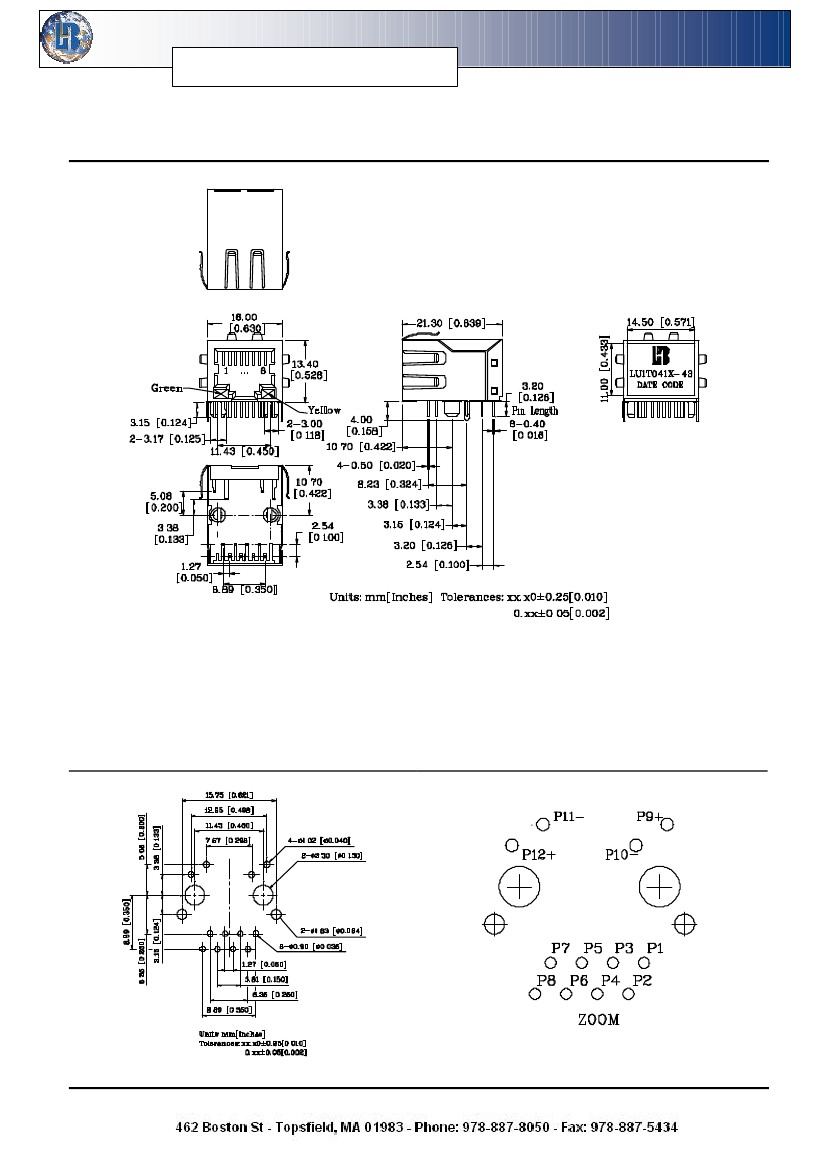

Mechanical
Page : 2/2
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u" inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.
PCB Layout Mounting Hole(Top View)
