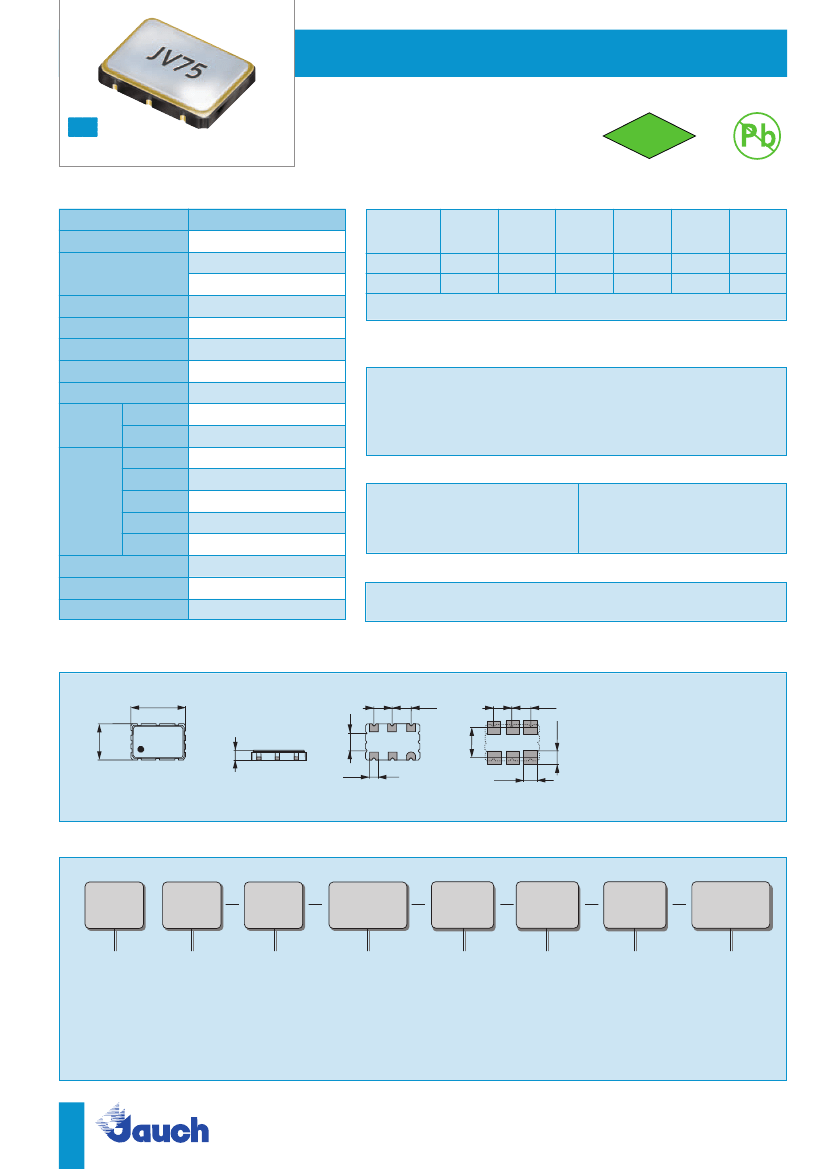

Oscillator · VCXO · 3.3 V
SMD Voltage Control Crystal Oscillator · 7.5 x 5.0 mm
actual size
■
two pinout versions available
■
reflow soldering temperature: 260
°C max.
■
ceramic/metal package
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
frequency stability over all*
JV75 3.3 V
1.0 ~ 125.0 MHz
± 25ppm
◆
/ ± 50ppm
see table 1
current consumption
supply voltage V
DC
frequency pulling range min.
pulling control voltage
pulling linearity max.
temperature
operating
storage
output
rise & fall time
load max.
current max.
low level max.
high level min.
standby function
start-up time max.
symmetry at 0.5 x V
DC
◆
▲
Table 1: Frequency Stability Code
stability code
B
± 50 ppm
-10 °C ~ +70 °C
-40 °C ~ +85 °C
O
O
O
available
C
± 25 ppm
O
O
see table 2
3.3 V ± 10%
± 50ppm / ± 100ppm / ± 150ppm
1.65 V ± 1.65 V
± 10%
-10 °C ~ +70 °C / -40 °C ~ +85 °C
-40 °C ~ +85 °C
see table 3
15pF
4mA
0.1 x V
DC
0.9 x V
DC
yes
10ms
45% ~ 55% typ. (40% ~ 60% max.)
■
■
•
standard
▲
◗
* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
Current at 15pF load:
1.0 ~ 29.9 MHz
30.0 ~ 44.9 MHz
45.0 ~ 51.9 MHz
52.0 ~ 125.0 MHz
15 mA
20 mA
25 mA
35 mA
Table 3: Rise & Fall Time max.
6.0 ns: 1.0 ~ 39.9 MHz
5.0 ns: 40.0 ~ 125.0 MHz
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
Recommendation
To avoid phase noise or FM modulation in the output frequency spectrum,
we recommend to feed the Vcontrol input pin by a low source impedance.
not available > 52.0 MHz
not available > 80.0 MHz
◗
on request, if < 52.0 MHz
Dimensions
7.5 max.
#6 #5 #4
2.46
±0.1
5.0
±0.2
1.8
±0.2
4.2
±0.1
2 x 2.54
±0.1
2 x 2.54
±0.1
#1 #2 #3
1.4
±0.1
#1
1.8
±0.1
standard
pin connection B
# 1: Vcontrol
# 2: e/d
# 3: ground
# 4: output
# 5: nc
# 6: V
DD
optional
pin connection A
# 1: Vcontrol
# 2: nc
# 3: ground
# 4: output
# 5: e/d
# 6: V
DD
in mm
top view
side view
bottom view
pad layout
Order Information
2.0
±0.1
O
Oscillator
frequency
in MHz
type
frequency stability
in ppm
supply voltage
in Volt
pulling range
in ppm
pin version
option
1.0 ~ 125.0 MHz
JV75
C = ± 25 ppm
◆
B = ± 50 ppm
◆
3.3 = 3.3 V
05 = ±50 ppm
10 = ±100 ppm
▲
15 = ±150 ppm
◗
▲
◗
B = standard
A = optional
blank = -10 °C ~ + 70 °C
T1 = -40 °C ~ + 85 °C
not available > 52.0 MHz
not available > 80.0 MHz
on request, if < 52.0 MHz
Example: O 20.0-JV75-C-3.3-10-B
(LF = RoHS compliant / Pb free pins or pads)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
260209
Oscillator · VCXO · JV75 · 3.3 V
Taping Specification
4.0
±0.1
2.0
±0.1
1.75
±0.1
0.4
±0.05
120°
9.25
±0.1
16.0
±0.3
17.5
7.9 max.
ø 13
ø 21
ø 1.5
±0.1
8.0
±0.2
5.5 max.
Direction of feed
2.3
±0.1
in mm
500 pcs per reel
Reflow Soldering Profile
temperature (°C)
260
200
150
100
50
60 ~180 s
60 s max.
10 s max.
260
°C
max.
220
±5 °C
180
±5 °C
Marking
frequency
type / date code
date code:
A ~ M: Jan.- Dec.
9: 2009
0: 2010
1: 2011
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
Control Voltage Characteristic
3.3 V version
160
120
40
20
0
-20
-40
-80
-120
-160
0.825
1.65
2.45
3.3
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
frequency pulling range
ppm
80
Enable / Disable Function
pin #2/#5
open or
≥
0.7 V
DC
gnd or
≥
0.3 V
DC
pin #4
enable
high impedance
control voltage (V)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
ø 80
ø 180/255
2.0
