OSC1217C: DescriptionSine Output Oscillator, 19.68MHz Nom; CategoryPassive components oscillator; File Size519KB，2 Pages; ManufacturerCTS

Download Datasheet Parametric View All

OSC1217C Overview

Sine Output Oscillator, 19.68MHz Nom

OSC1217C Parametric

Parameter Name	Attribute value
package instruction	LCC(UNSPEC)
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	10 ppm
frequency stability	1.5%
Manufacturer's serial number	OSC1217
Installation features	SURFACE MOUNT
Nominal operating frequency	19.68 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output level	0.8 V
Package body material	CERAMIC
Encapsulate equivalent code	LCC(UNSPEC)

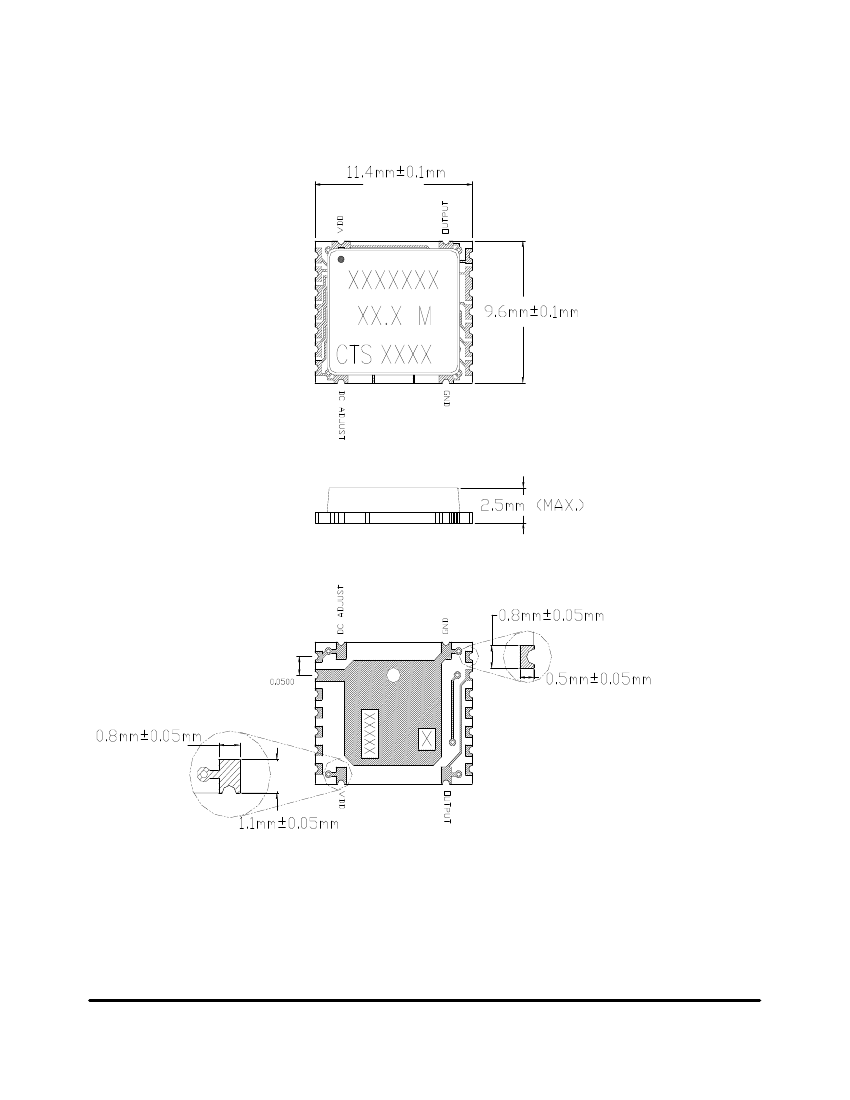

physical size	11.4mm x 9.6mm x 2.5mm
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	2 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Model OSC1217A, C

VCTCXO - Apex

Features:

•

Stable frequency over temperature

•

Good SSBN Noise performance

•

Surface Mount Package

Description and Applications:

Surface mount 9x11 mm Voltage Control

Temperature Compensated Crystal

Oscillator (VCTCXO) for use in 3G, GSM,

TDMA, CDMA, PDAs, Satellite handsets,

2-way radios, Pagers, Analog applications,

and other portable electronics requiring a

stable frequency source.

XXXXX

XX.XX

CTS XXXX

Electrical Specifications

:

OSC1217A, C

Nominal Frequency

Supply Voltage (Vdd)

Frequency Stability over Temperature

RF output (DC Coupled)

Current Drain

Frequency Adjust Method

Frequency Adjust Center Voltage (Vcc)

Frequency Adjust Range

SSBN @ 16.8 MHz at 10 kHz offset

Aging

Specification

19.68 MHz

A: 3V

±

10%

±

C: 5V

±

5%

1.5 PPM (-30C to 80C)

A and C: 0.8 Vpp minimum, Sinewave

A and C: <2 mA maximum (Sinewave)

External DC Voltage

A: 1.5 VDC

±

C: 2.5 VDC

10 PPM minimum

-140 dBc/Hz maximum

±

1 PPM/Yr @25C

Model: OSC1217A, C

Rev 021401

CTS Wireless Components, Inc. 171 Covington Dr. Bloomingdale, Illinois 60108

Tel. (800) 757-6686 Fax: (630) 295-6606 www.ctscorp.com
