K9F1208U0M-PCB00

Description
Flash, 64MX8, 35ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, PLASTIC, TSOP1-48
Categorystorage    storage
File Size1MB，41 Pages
ManufacturerSAMSUNG
Websitehttp://www.samsung.com/Products/Semiconductor/
Environmental Compliance
Download Datasheet Parametric Compare View All

K9F1208U0M-PCB00 Overview

Flash, 64MX8, 35ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, PLASTIC, TSOP1-48

K9F1208U0M-PCB00 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Parts packaging codeTSOP1
package instructionTSOP1, TSSOP48,.8,20
Contacts48
Reach Compliance Codecompliant
ECCN code3A991.B.1.A
Maximum access time35 ns
Other featuresCONTAINS ADDITIONAL 16M BIT NAND FLASH
command user interfaceYES
Data pollingNO
JESD-30 codeR-PDSO-G48
length18.4 mm
memory density536870912 bit
Memory IC TypeFLASH
memory width8
Humidity sensitivity level2
Number of functions1
Number of departments/size4K
Number of terminals48
word count67108864 words
character code64000000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize64MX8
Package body materialPLASTIC/EPOXY
encapsulated codeTSOP1
Encapsulate equivalent codeTSSOP48,.8,20
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE
page size512 words
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)260
power supply3/3.3 V
Programming voltage2.7 V
Certification statusNot Qualified
ready/busyYES
Maximum seat height1.2 mm
Department size16K
Maximum standby current0.00005 A
Maximum slew rate0.03 mA
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)2.7 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
switch bitNO
typeNAND TYPE
width12 mm
Base Number Matches1

Preview

Download Datasheet
K9F1208U0M
Document Title
64M x 8 Bit NAND Flash Memory
Revision History
Revision No
0.0
FLASH MEMORY
History
1. Initial issue
Draft Date
Oct. 27th 2000
Remark
Advanced
Information
0.1
1. Renamed GND input (pin # 6) on behalf of SE (pin # 6)
- The SE input controls the access of the spare area. When SE is high,
the spare area is not accessible for reading or programming. SE is rec
ommended to be coupled to GND or Vcc and should not be toggled
during reading or programming.
=> Connect this input pin to GND or set to static low state unless the
sequential read mode excluding spare area is used.
2. Updated operation for tRST timing
- If reset command(FFh) is written at Ready state, the device goes into
Busy for maximum 5us.
1. Changed GND input (pin # 6) pin to N.C ( No Connection).
- The pin # 6 is don’t-cared regardless of external logic input level
and is fixed as low internally.
1. Changed plane address in Copy-Back Program
- A24 and A25 must be the same between source and target page
=> A14 and A15 must be the same between source and target page
1. Changed DC characteristics
Parameter
Operating
Current
Sequential Read
Program
Erase
Min
-
-
-
Typ
10
10
10
Max
20->30
20->30
20->30
mA
Unit
Dec. 5th 2000
0.2
Dec. 15th 2000
0.3
Jan. 8th 2001
0.4
Apr. 7th 2001

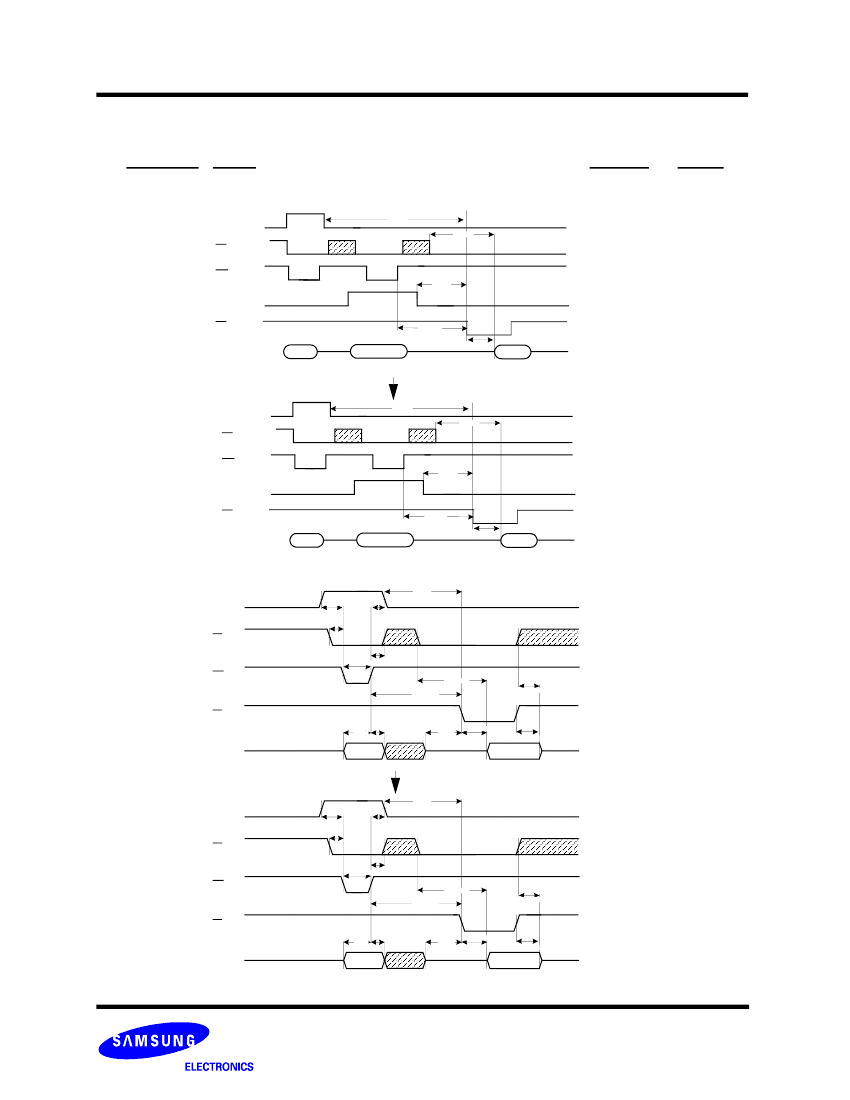

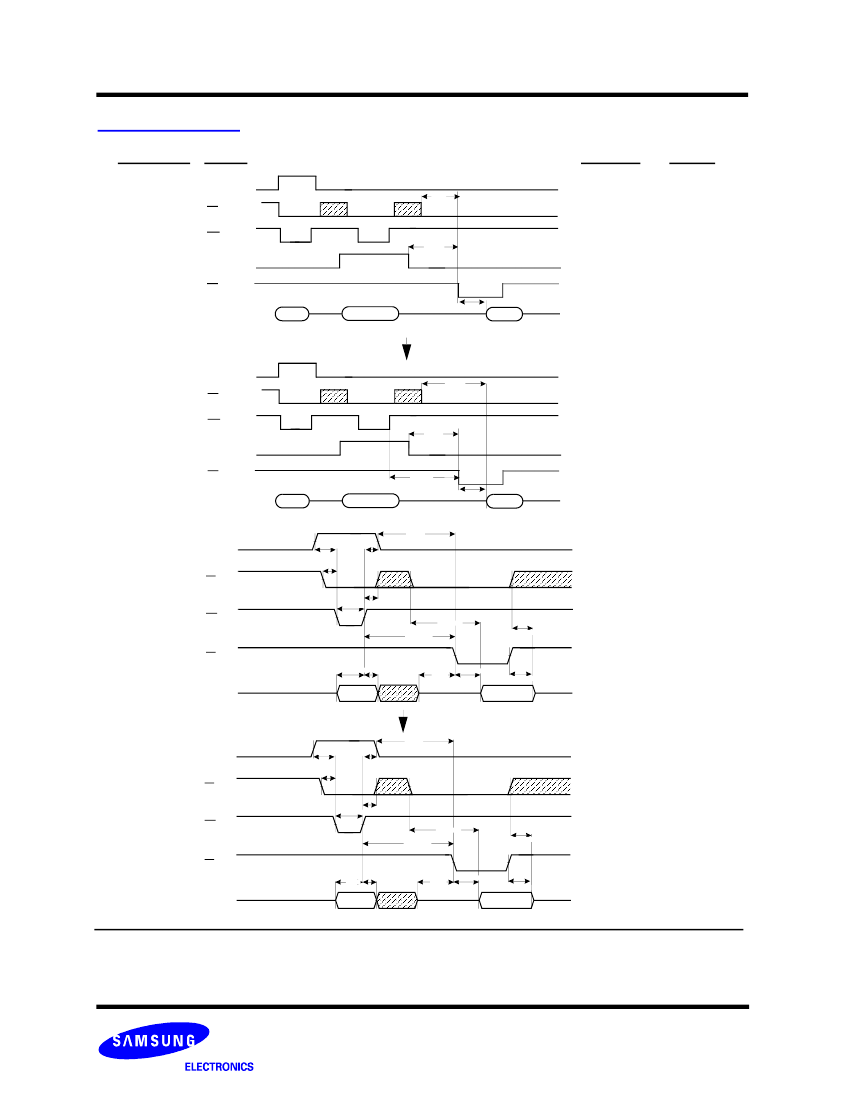

2. Unified access timing parameter definition for multiple operating modes
- Changed AC characteristics (Before)
Parameter
ALE to RE Delay( ID read )
CE to RE Delay( ID read)
RE Low to Status Output
CE Low to Status Output
RE access time(Read ID)
- AC characteristics (After)
. Deleted t
CR
,t
RSTO,
t
CSTO
and t
READID
/ Added t
CEA
Parameter
ALE to RE Delay( ID read )
CE Access Time
Symbol
t
AR1
t
CEA
Min
10
-
Max
-
45
Unit
ns
Symbol
t
AR1
t
CR
t
RSTO
t
CSTO
t
READID
Min
100
100
-
-
-
Max
-
-
35
45
35
ns
Unit
1

K9F1208U0M-PCB00 Related Products

K9F1208U0M-PCB00 K9F1208U0M-YIB00 K9F1208U0M-YIB0T K9F1208U0M-YCB0T K9F1208U0M-YCB00 K9F1208U0M-PIB00 K9F1208U0M-PCB0 K9F1208U0M-PIB0 K9F1208U0M-PCB0T K9F1208U0M-PIB0T
Description Flash, 64MX8, 35ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, PLASTIC, TSOP1-48 Flash, 64MX8, 35ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, PLASTIC, TSOP1-48 Flash, 64MX8, 35ns, PDSO48, Flash, 64MX8, 35ns, PDSO48, Flash, 64MX8, 35ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, PLASTIC, TSOP1-48 Flash, 64MX8, 35ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, PLASTIC, TSOP1-48 Flash, 64MX8, 35ns, PDSO48, Flash, 64MX8, 35ns, PDSO48, Flash, 64MX8, 35ns, PDSO48, Flash, 64MX8, 35ns, PDSO48,
Is it Rohs certified? conform to incompatible incompatible incompatible incompatible conform to conform to conform to conform to conform to
package instruction TSOP1, TSSOP48,.8,20 TSOP1, TSSOP48,.8,20 TSSOP, TSSOP48,.8,20 TSSOP, TSSOP48,.8,20 TSOP1, TSSOP48,.8,20 TSOP1, TSSOP48,.8,20 TSSOP, TSSOP48,.8,20 TSSOP, TSSOP48,.8,20 TSSOP, TSSOP48,.8,20 TSSOP, TSSOP48,.8,20
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Maximum access time 35 ns 35 ns 35 ns 35 ns 35 ns 35 ns 35 ns 35 ns 35 ns 35 ns
command user interface YES YES YES YES YES YES YES YES YES YES
Data polling NO NO NO NO NO NO NO NO NO NO
JESD-30 code R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48 R-PDSO-G48
memory density 536870912 bit 536870912 bit 536870912 bit 536870912 bit 536870912 bit 536870912 bit 536870912 bit 536870912 bit 536870912 bit 536870912 bit
Memory IC Type FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH
memory width 8 8 8 8 8 8 8 8 8 8
Number of departments/size 4K 4K 4K 4K 4K 4K 4K 4K 4K 4K
Number of terminals 48 48 48 48 48 48 48 48 48 48
word count 67108864 words 67108864 words 67108864 words 67108864 words 67108864 words 67108864 words 67108864 words 67108864 words 67108864 words 67108864 words
character code 64000000 64000000 64000000 64000000 64000000 64000000 64000000 64000000 64000000 64000000
Maximum operating temperature 70 °C 85 °C 85 °C 70 °C 70 °C 85 °C 70 °C 85 °C 70 °C 85 °C
organize 64MX8 64MX8 64MX8 64MX8 64MX8 64MX8 64MX8 64MX8 64MX8 64MX8
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSOP1 TSOP1 TSSOP TSSOP TSOP1 TSOP1 TSSOP TSSOP TSSOP TSSOP
Encapsulate equivalent code TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20 TSSOP48,.8,20
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
page size 512 words 512 words 512 words 512 words 512 words 512 words 512 words 512 words 512 words 512 words
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
power supply 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V 3/3.3 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
ready/busy YES YES YES YES YES YES YES YES YES YES
Department size 16K 16K 16K 16K 16K 16K 16K 16K 16K 16K
Maximum standby current 0.00005 A 0.00005 A 0.00005 A 0.00005 A 0.00005 A 0.00005 A 0.00005 A 0.00005 A 0.00005 A 0.00005 A
Maximum slew rate 0.03 mA 0.03 mA 0.03 mA 0.03 mA 0.03 mA 0.03 mA 0.03 mA 0.03 mA 0.03 mA 0.03 mA
surface mount YES YES YES YES YES YES YES YES YES YES
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL INDUSTRIAL INDUSTRIAL COMMERCIAL COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
switch bit NO NO NO NO NO NO NO NO NO NO
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Humidity sensitivity level 2 - 1 3 3 3 3 3 1 1
Peak Reflow Temperature (Celsius) 260 - 225 240 - 260 260 260 225 225
Maximum time at peak reflow temperature 40 - NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
type NAND TYPE - - - - NAND TYPE NAND TYPE NAND TYPE NAND TYPE NAND TYPE
Is it lead-free? - - Contains lead Contains lead - - Lead free Lead free Lead free Lead free
