KS5811N datasheet, PDF - EEWORLD Datasheet

KS5811N: DescriptionTelephone Circuit, CMOS, PDIP16,; CategoryWireless rf/communication Telecom circuit; File Size196KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

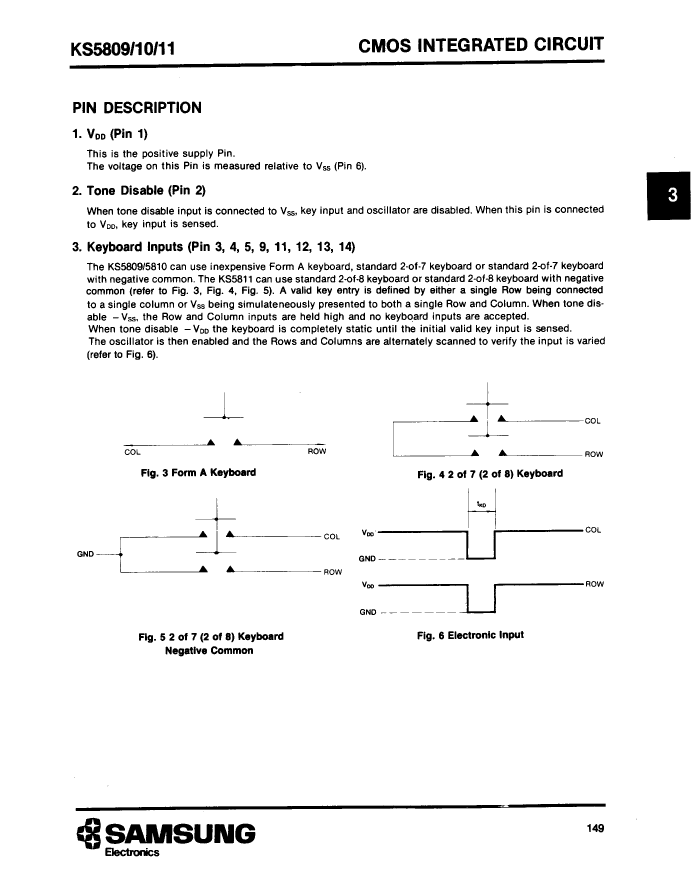

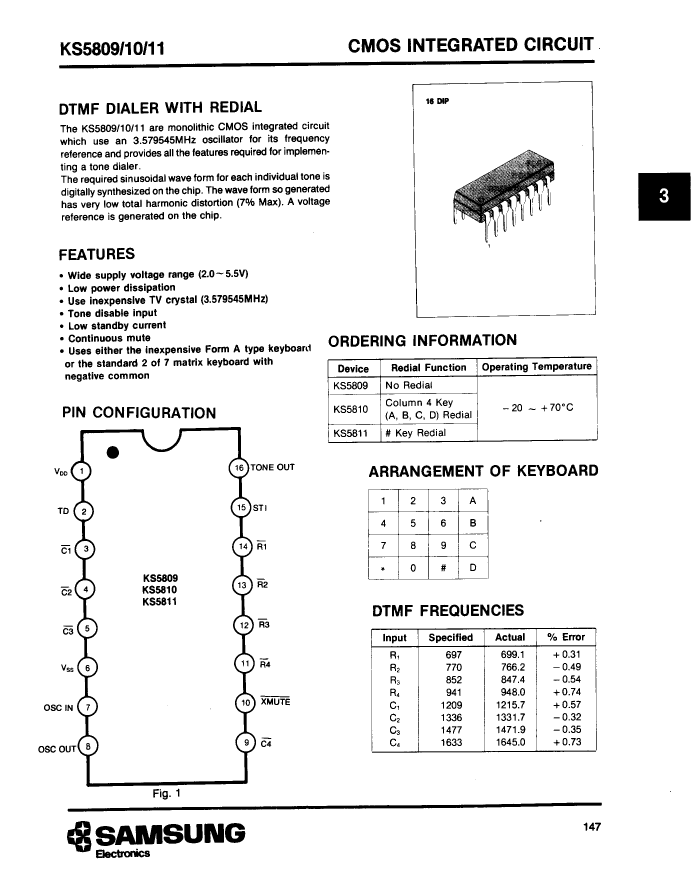

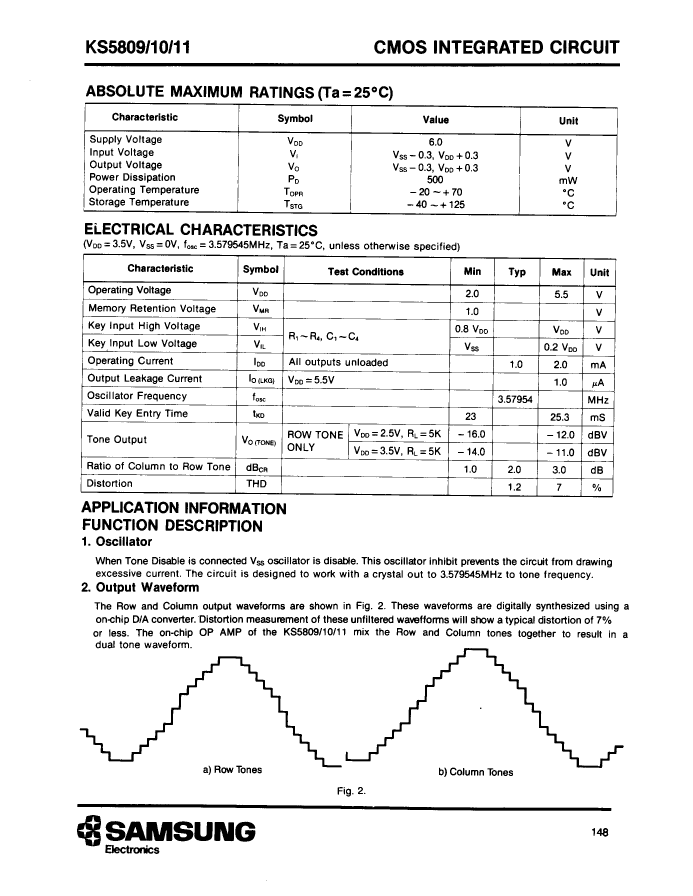

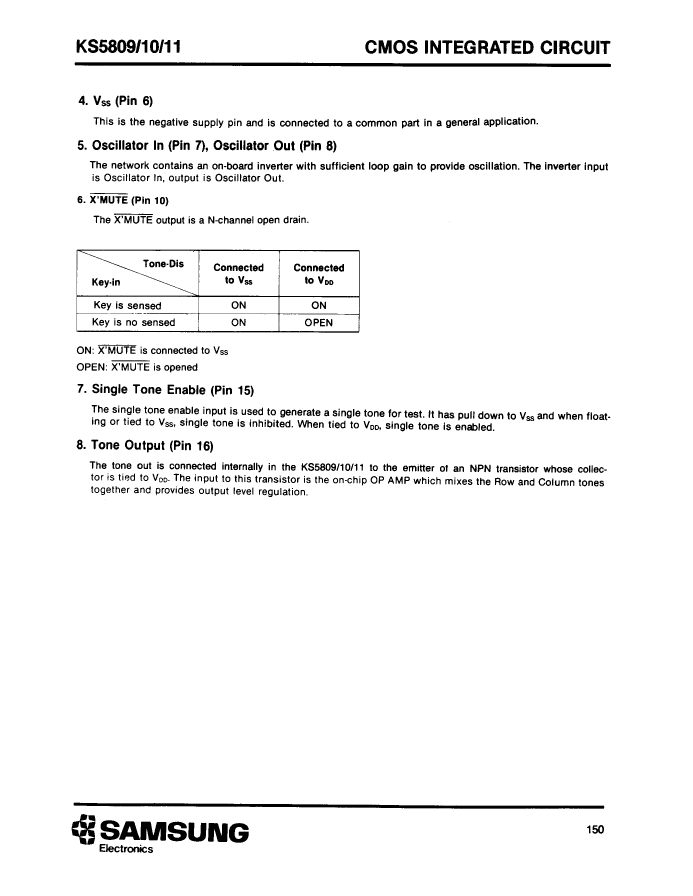

KS5811N Overview

Telephone Circuit, CMOS, PDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
crystal frequency	3.58 MHz
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.5 V
Certification status	Not Qualified
Maximum slew rate	2 mA
Nominal supply voltage	3.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	KS5811N	KS5809N
Description	Telephone Circuit, CMOS, PDIP16,	Telephone Circuit, CMOS, PDIP16,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant
crystal frequency	3.58 MHz	3.58 MHz
JESD-30 code	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	3.5 V	3.5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	2 mA	2 mA
Nominal supply voltage	3.5 V	3.5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
