LGC870-JL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LGC870-JL

LGC870-JL: DescriptionSingle Color LED, Green, Colorless Clear; CategoryLED optoelectronic/LED photoelectric; File Size57KB，1 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LGC870-JL Overview

Single Color LED, Green, Colorless Clear

LGC870-JL Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	COLORLESS CLEAR
Nominal luminous intensity	12 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	TAPE AND REEL
peak wavelength	565 nm
shape	RECTANGULAR
surface mount	YES
perspective	120 deg
Base Number Matches	1

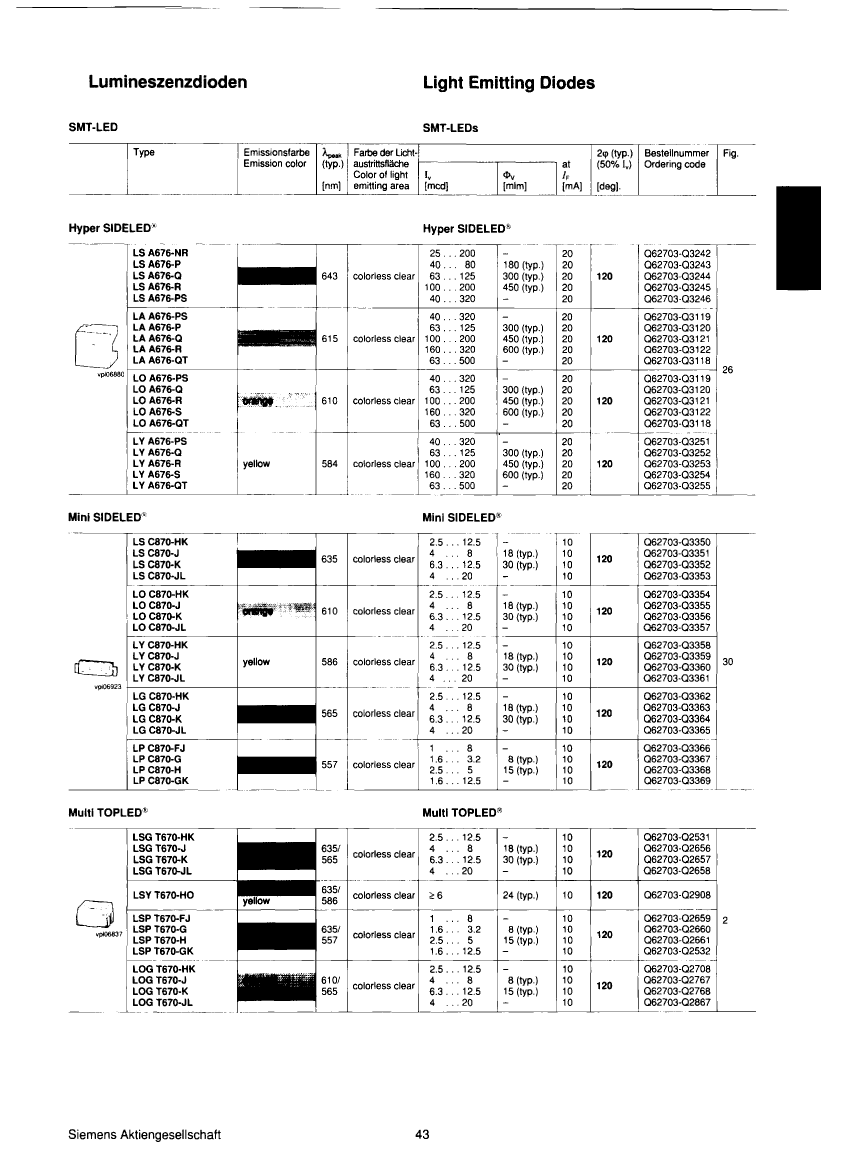

Preview

Download Datasheet

View All

LGC870-JL Related Products

	LGC870-JL	LYC870-HK	LSYT670-HO	LOC870-HK	LSC870-JL	LYC870-JL	LGC870-HK	LAA676-P	LOC870-JL
Description	Single Color LED, Green, Colorless Clear	Single Color LED, Yellow, Colorless Clear	Dual Color LED, Super Red/yellow, Colorless Clear, 2.4mm	Single Color LED, Orange, Colorless Clear	Single Color LED, Super Red, Colorless Clear	Single Color LED, Yellow, Colorless Clear	Single Color LED, Green, Colorless Clear	Single Color LED, Amber, Colorless Clear, 2.4mm	Single Color LED, Orange, Colorless Clear
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	GREEN	YELLOW	SUPER RED/YELLOW	ORANGE	SUPER RED	YELLOW	GREEN	AMBER	ORANGE
Configuration	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Lens type	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	4	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	565 nm	586 nm	635/586 nm	610 nm	635 nm	586 nm	565 nm	615 nm	610 nm
shape	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	-	0.03 A
Nominal luminous intensity	12 mcd	7.5 mcd	-	7.5 mcd	12 mcd	12 mcd	7.5 mcd	94 mcd	12 mcd
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	-	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Base Number Matches	1	1	1	1	1	1	-	-	-
