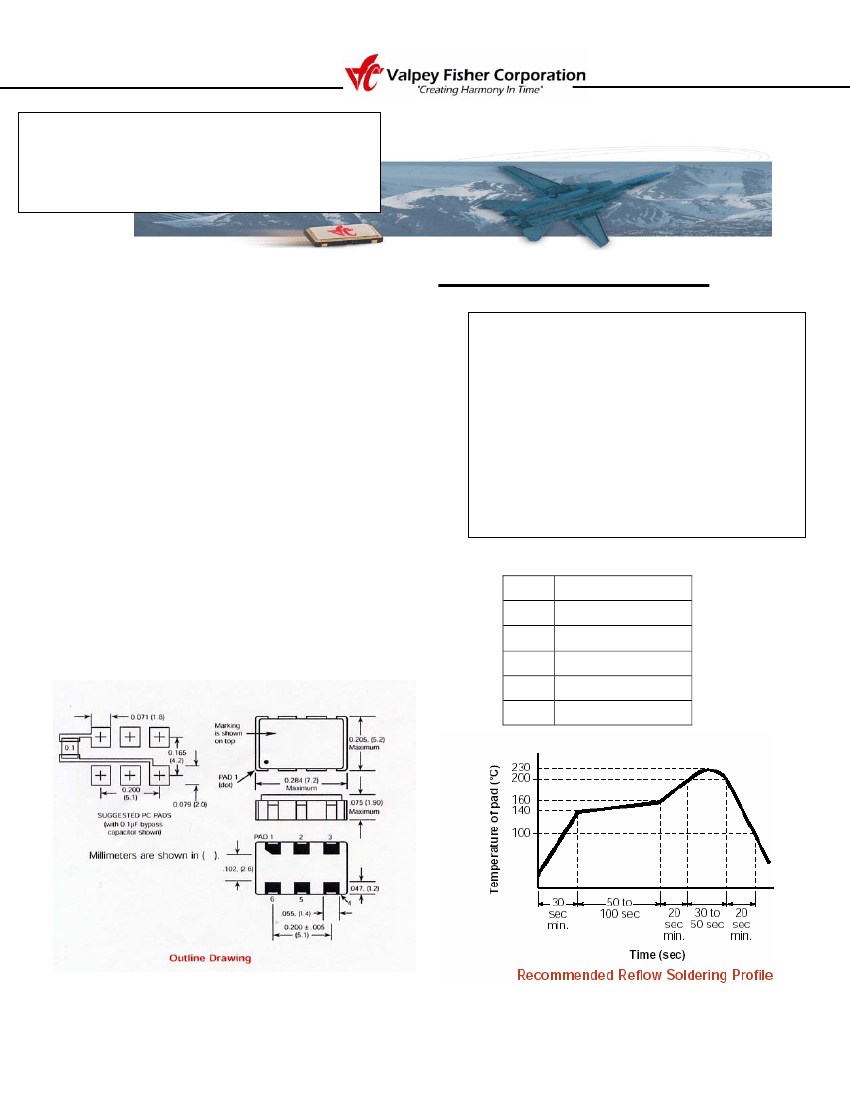

VFH230C Series
Crystal Oscillators LVPECL/LVDS 3.3V
5X7 mm Surface Mount High Reliability
750 KHz to 800 MHz
Hi-Reliability Product Specification
Features
High speed – Low jitter LVPECL or LVDS output with
tristate
Small SMD package (5X7 mm)
Stability options from +/-25ppm to +/-100ppm
Leadless chip carrier package is hermetically sealed for
superior aging and field performance
Crystal angle controlled to +/-0.5 for excellent temperature
stability
168 hour Class B burn-in and extensive environmental
testing for best performance in rugged field environments
Tristate option available
Serialized test data available
Calculated MTBF is 3.8X10
6
hours at 125°C
XO
Description
These high reliability oscillators provide
PECL/LVDS waveforms for applications subjected to
the most stringent environmental conditions. They are
mechanically robust and weigh less than 0.2 grams.
This 5X7 mm SMD package has a hermetic seal, thus
ensuring the integrity of each oscillator. Each
oscillator is burned-in at 125°C for 168 hours,
temperature cycled and centrifuged then fully tested
in accordance with Table 1. Reliability tests are
performed per Table 2. The calculated MTBF is
3.8X10
6
at 125°C.
Connections
PIN 1
Pin 2
PIN 3
PIN 4
PIN 5
PIN 6
Tristate
N/C
Ground
Output 1: Q
Output 2: Q
+V
DD
Typical Applications
Telecom/networking systems that require low jitter clocks
•
DSL,
•
Gigabit Ethernet,
•
Fibre channel
•
Optical networking
•
Extended temperature applications
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
1
VFH230C Series
Crystal Oscillators LVPECL/LVDS 3.3V
5X7 mm Surface Mount High Reliability
750 KHz to 800 MHz
ELECTRICAL SPECIFICATIONS
Frequency Range
750 KHz to 800 MHz
100, 50, 25 or 20 ppm
Frequency Stability
Includes calibration at 25°C, operating
temperature, change of input voltage,
change of load, shock and vibration
MIN
3.15
ENVIRONMENTAL SPECIFICATIONS
Shock-
MIL-STD 883, Method 2002, Test Condition B
(1500 peak g, 0.5 ms duration, ½ sine wave, 5 shocks in 6 planes)
Vibration-
MIL-STD 883, Method 2007, Test Condition A
(20-2000Hz of .06:d.a. or 20 Gs, whichever is less)
Humidity-
Resistant to 85° R.H. at 85°C
Input Voltage, V
DD
Jitter
Period jitter RMS
19.44MHz
77.76MHz
155.52MHz
622.08MHz
Integrated jitter RMS
12 KHz to 20 MHz @ 155.52MHz
Symmetry at (V
DD
-1.3) V
DC
(PECL)
At (1.25 V
DC
) (LVDS)
TYP
3.3
5
8
9
10
3
MAX
3.45
UNITS
volts
ps
ps
ps
ps
Table 1
Each unit undergoes the following:
1. Stabilization Bake
2. Temperature Cycling
3. Constant Acceleration
4. Burn-in
MIL-STD-883 Method 1008, Cond,.B
MIL-STD-883 Method 1010, Cond, B
MIL-STD-883 Method 2001, Cond, A
MIL-STD-883 Method 1015, Cond B
(125°C for 168 hours with bias)
5. Fine Leak
MIL-STD-883 Method 1014, Cond. A1
6. Gross Leak
MIL-STD-883 Method 1014, Cond C
7. Electrical Test at 25°C and temperature extremes, as follows:
A. Frequency
B. Current
C. Rise Time
D. Fall Time
E. Duty Cycle
F. Duty Cycle
G. Frequency at 3.6V
H. Frequency at 3.0V
I. “Zero” logic level
J. “One” logic level
K. Tristate
5
45/55
ps
percent
percent
Aging
First year
After first year
Tristate
Input Requirements for Pin 1:
“1”: On-Pin 1 may float or 2.8V min
“0”: Tristate-Pin 1 requires 0.4V max
Typical Phase Noise (dBc/Hz)
Oscillator Frequency
19.44MHz
106.25MHz
155.52MHz
622.08MHz
10Hz
-60
-60
-60
-60
100Hz
-90
-90
-90
-90
3
1
ppm
ppm/yr
Test Data on each unit is available for additional cost
1KHz
-112
-112
-112
-109
10KHz
-140
-127
-125
-110
100KHz
-140
-125
-123
-109
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
2
VFH230C Series
Crystal Oscillators LVPECL/LVDS 3.3V
5X7 mm Surface Mount High Reliability
750 KHz to 800 MHz

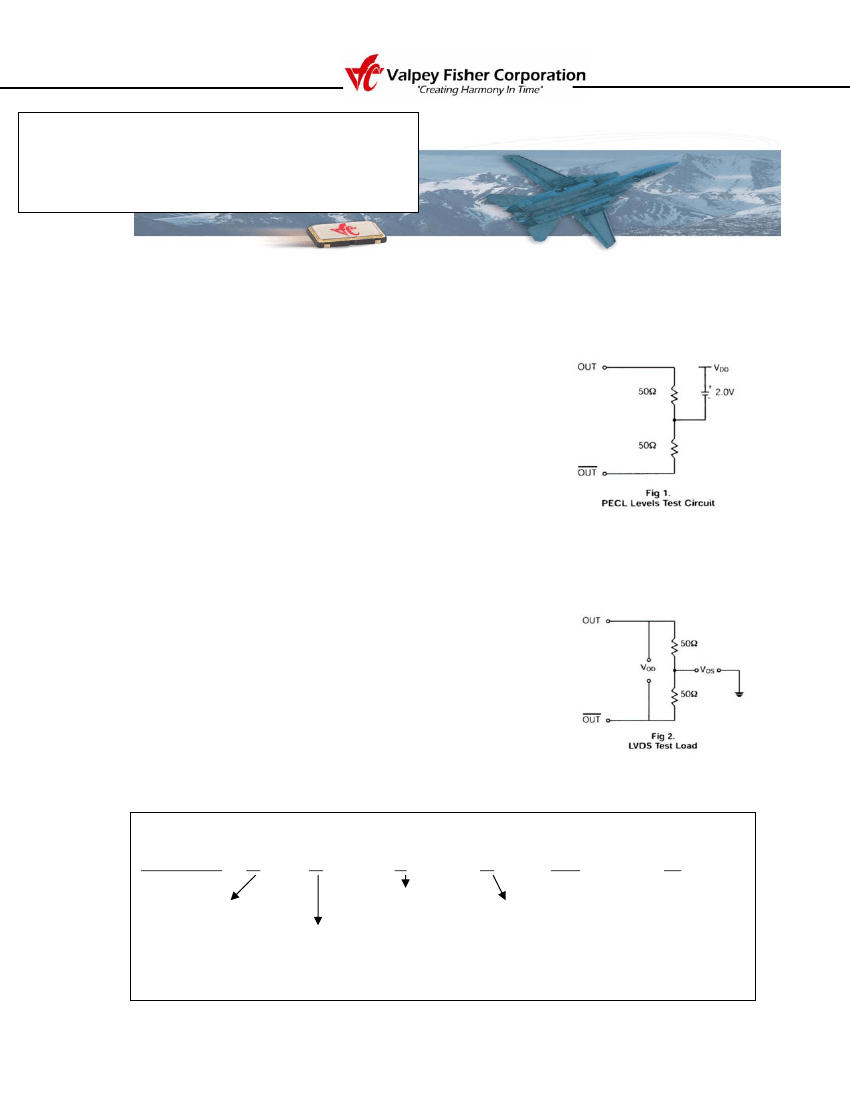

PECL Output Models
Electrical Specifications
.
RL = 50
Ω
to (V
DD
- 2V)
(see figure)
Output High Voltage, V
OH
Output Low Voltage, V
OL
Input Current, PECL
0.75 – 24 MHz
24 – 160 MHz
160 – 800 MHz
Switching Characteristics
Clock Rise Time, tr
@20/80%
Clock Fall Time, tf
@80/20%
LVDS Output Models
Electrical Specifications
MIN
RL = 100
Ω
(see figure)
Output Differential Voltage, V
OD
Output High Voltage, V
OH
Output Low Voltage, V
OL
Offset Voltage, V
OS
Input Current, LVDS
0.75 – 24 MHz
24 – 96 MHz
96 – 800 MHz
Switching Characteristics
Differential Clock Rise Time, tr
Differential Clock Fall Time, tf
0.3
0.3
247
0.9
1.125
TYP
355
1.4
1.1
1.2
MAX
454
1.6
1.375
25
45
80
0.4
0.4
UNITS
mV
V
V
V
mA
mA
mA
ns
ns
MIN
TYP
VDD-1.025
VDD-1.620
25
65
100
MAX
UNITS
V
V
mA
mA
mA
0.3
0.3
0.35
0.35
ns
ns
HOW TO ORDER
For part Number, put package type before model number, and add frequency in MHz, for example:
VFH230C
A
A
T
Tristate
T=Tristate
N=Non Tristate
A
125
Frequency
M
M=MHz
K=KHz
Frequency Stability
A=+/-100ppm
Temparature Range
B=+/-50ppm
A= -55 to +85°C*
C=+/-25ppm
B= -55 to +125°C*
D=+/-20ppm
Output Logic
A=45/55%LVDS
B=40/60%LVDS
C=45/55%PECL
D=40/60%PECL
*Temperature Range only available in with stability options of 50 or 100ppm
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
3
VFH230C Series
Crystal Oscillators LVPECL/LVDS 3.3V
5X7 mm Surface Mount High Reliability
750 KHz to 800 MHz
MECHANICAL DESCRIPTION
Leak-MIL
STD 883, method 1014, condition A1 and C1
Case-Hermetically
sealed ceramic LCC
Pads-60
microinch of gold over nickel
Marking-Epoxy
ink or laser engraved
Resistance to Solvents-MIL
STD 202, Method 215
Pin 1
MARKING SPECIFICATION
The format for the marking is:
Valpey-Fisher
Model Code (XX) Date Code (YY)
VFH230C Oscillator
RXXYY
725.00
Frequency
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
4
VFH230C Series
Crystal Oscillators LVPECL/LVDS 3.3V
5X7 mm Surface Mount High Reliability
750 KHz to 800 MHz

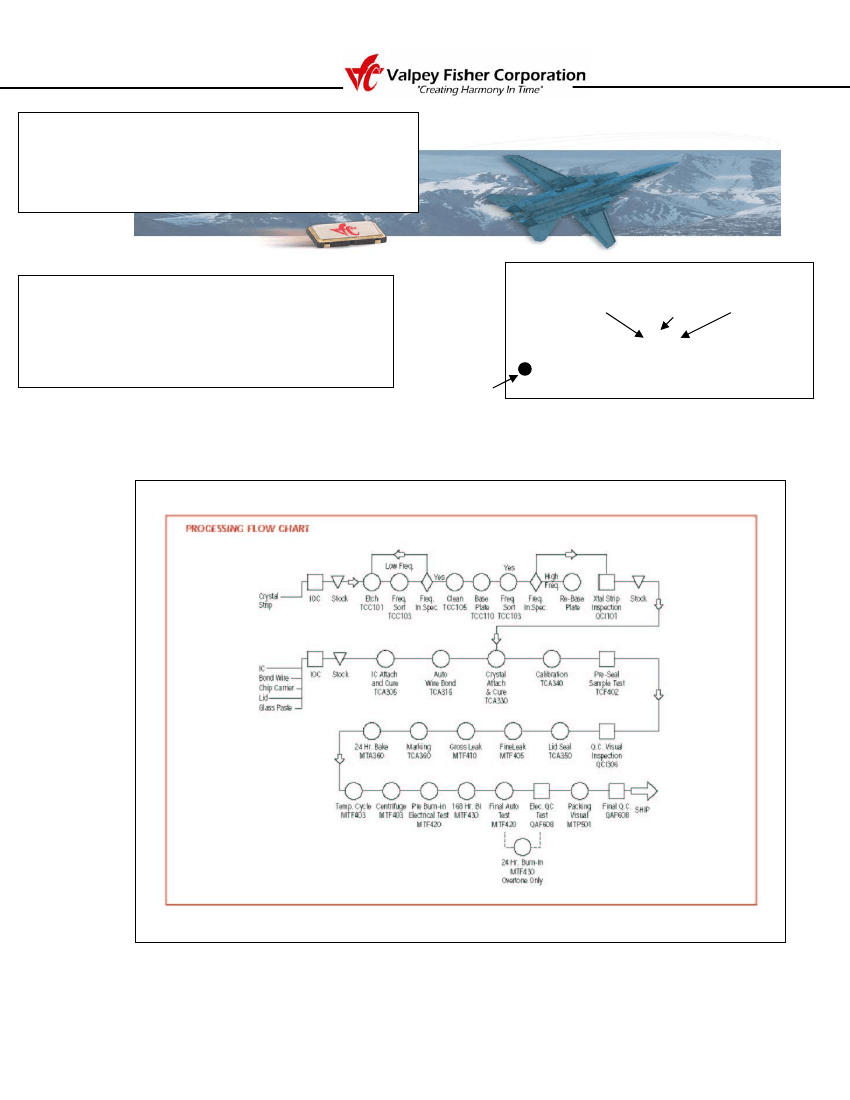

TABLE 2- RELIABILITY TEST PROCEDURE AND CONDITIONS FOR QUARTZ CRYSTAL OSCILLATORS
1. Group A
Electrical Characteristics at -55°, (0° for ‘5515), 25° and 125° (70° for M5515 and 85° for M5622)
Frequency @ 4.5, 5.0 and 5.5 volts (for 5 volts units)
Symmetry (Duty Cycle)
Input current
Zero/One levels
Rise/Fall times
Physical Dimensions
Length/width
Height
Package finish (Corrosion, discoloration, etc.)
Marking placement/legibility
II. Group B- Life Test
1000 hrs at 125°C with bias and load
III.
Group C- All units have passed Group A testing
A. Subgroup 1-8 pcs.
Standard
Condition
Description
End point measurement
MIL-STD-883
Method 2002
Mechanical Shock
Frequency
COND.B
1500 g’s, 5ms
Output Waveform
5 drops, 6 axis
MIL-STD-883
Method 2007
Vibration, var.
Frequency
COND. A.
freq. 20 g’s,
Output waveform
.06” disp., 20-
20, 000-20 Hz
MIL-STD-883
Method 2003
Solderability
Visual 95% coverage
B. Subgroup 2-4 pcs (One-half of Subgroup 1)
MIL-STD-883
Method 1011
Thermal Shock
Frequency
COND. B
Liq. To liq.
Output waveform
15 cycles
MIL-STD-202
Method 105
Altitude, 3.44
Frequency
COND. B
inch Hg. 12 hrs
Output waveform
MIL-STD-883
Method 1004
Moisture resist.
Frequency
With 5V applied
Output waveform
25-65°C, 90 to
100% RH, 10 cycles
MIL-STD-202
Method 210
Resistance to
Frequency
COND.A
Solder Heat
Output waveform
Immersion @350°C
3.5 sec
C.Subgroups 3-4 pcs. (One half of Subgroup 1)
Standard
Condition
Description
End point measurement
Storage Temp.
24 hrs. @ -55°C
Frequency
No. Oper
24 hrs. @ 125°C
Output waveform
MIL-STD-883
Method 1009
Salt Atmosphere
Frequency
COND. A
24 hrs. @ 35°C
Output waveform
.5-3.0% Solution
Visual
MIL-STD-883
Method 1014
Fine Leak
Qs <5 X10
-8
COND. B
MIL-STD-883
Method 1014
Gross Leak
Visual in 125°C
COND. C
Detector fluid
Rev. 1.0 1/05
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
5
