SMDJ11C

Description
Transient Suppressor
CategoryDiscrete semiconductor    diode
File Size576KB,4 Pages
ManufacturerMDE Semiconductor
Websitehttp://www.mdesemiconductor.com
Download Datasheet Parametric View All

SMDJ11C Online Shopping

Suppliers Part Number Price MOQ In stock
SMDJ11C - - View Buy Now

SMDJ11C Overview

Transient Suppressor

SMDJ11C Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Base Number Matches1
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210 La Quinta, CA. U.S.A. 92253 Tel: 760-564-8656 • Fax: 760-564-2414
SMDJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-5.0 TO 170 Volts
3000 Watt Peak Pulse Power
FEATURES
• For surface mounted applications in order to
optimize board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition rate (duty cycle):0.01%
• Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
• Typical IR less than 1µA above 10V
• High temperature soldering:
250°C/10 seconds at terminals
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
MECHANICAL DATA

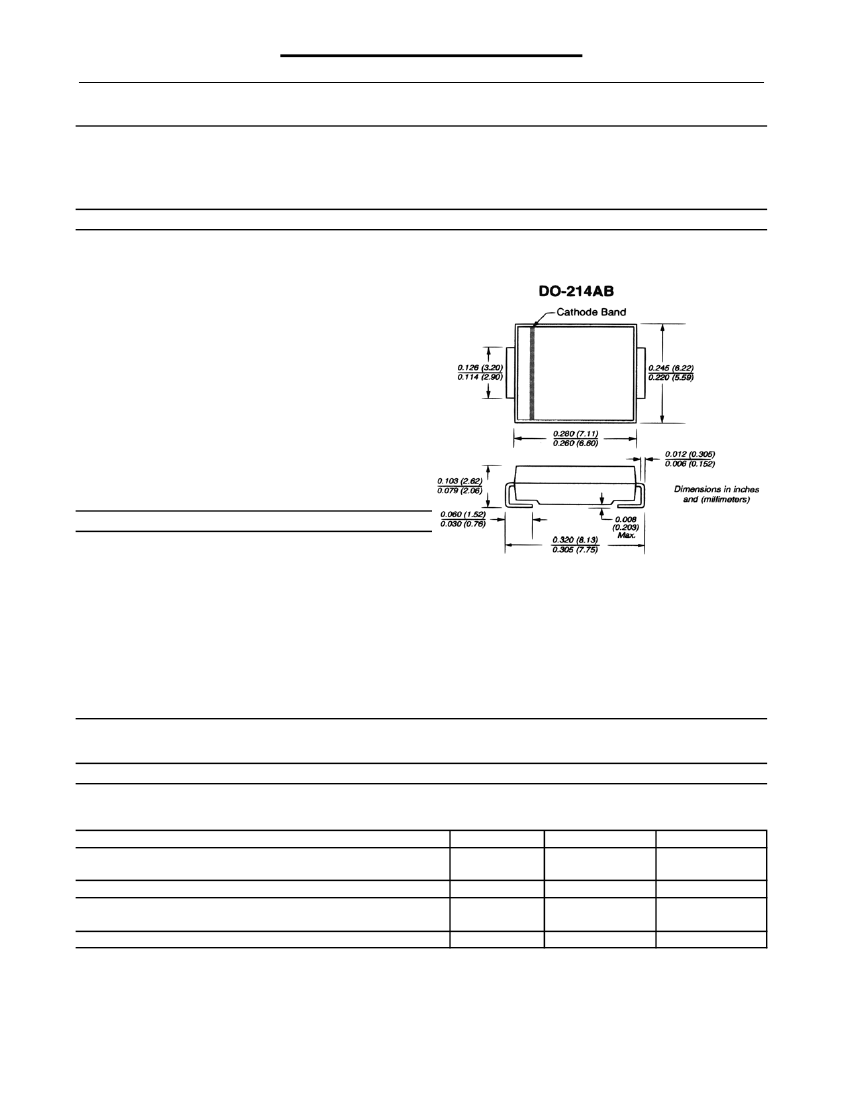

Case: JEDEC DO214AB. Molded plastic over glass
passivated junction
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bidirectional
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.007 ounces, 0.021 grams)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types SMDJ5.0 thru types SMDJ170 (e.g. SMDJ5.0C, SMDJ170CA)
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
SYMBOL
VALUE
UNITS
Peak Pulse Power Dissipation on 10/1000 µs
Minimum 3000
Watts
P
ppm
waveform
(NOTE 1, 2, Fig.1)
Peak Pulse Current of on 10/1000 µs waveform
(Note 1,Fig 3)
Ippm
SEE TABLE 1
Amps
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
100
Amps
I
FSM
Superimposed on Rated Load,
(JEDEC Method)(Note2, 3)
Operatings and Storage Temperature Range
Tj, Tstg
-55 +150
°C
NOTES:

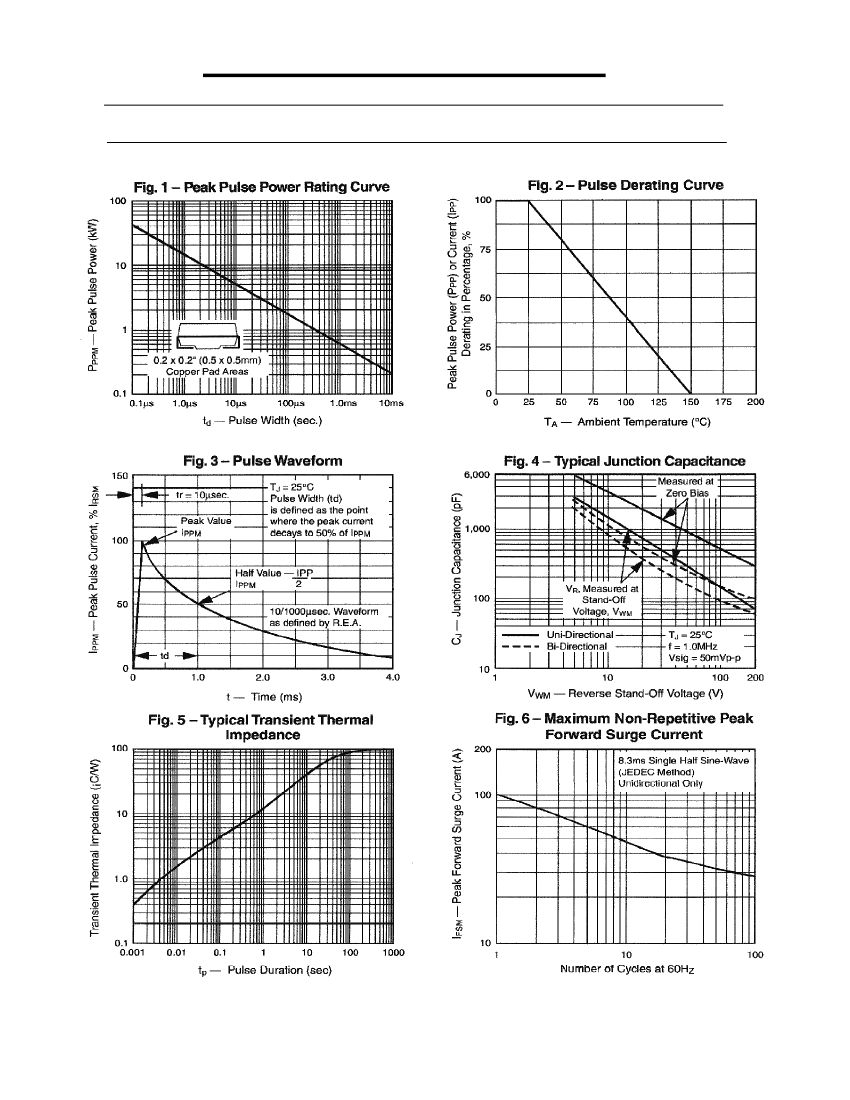

1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2. Mounted on Copper Pad area of 0.8x0.8" (20x20mm) per Fig.5.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
