BL-PDC-SDC-C10: DescriptionSingle Color LED, Cyan, Water Clear, 2.4mm, PLASTIC, LCC-2; CategoryLED optoelectronic/LED photoelectric; File Size848KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-PDC-SDC-C10 Overview

Single Color LED, Cyan, Water Clear, 2.4mm, PLASTIC, LCC-2

BL-PDC-SDC-C10 Parametric

Parameter Name	Attribute value
package instruction	PLASTIC, LCC-2
Reach Compliance Code	unknown
color	CYAN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	WATER CLEAR
Nominal luminous intensity	315.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

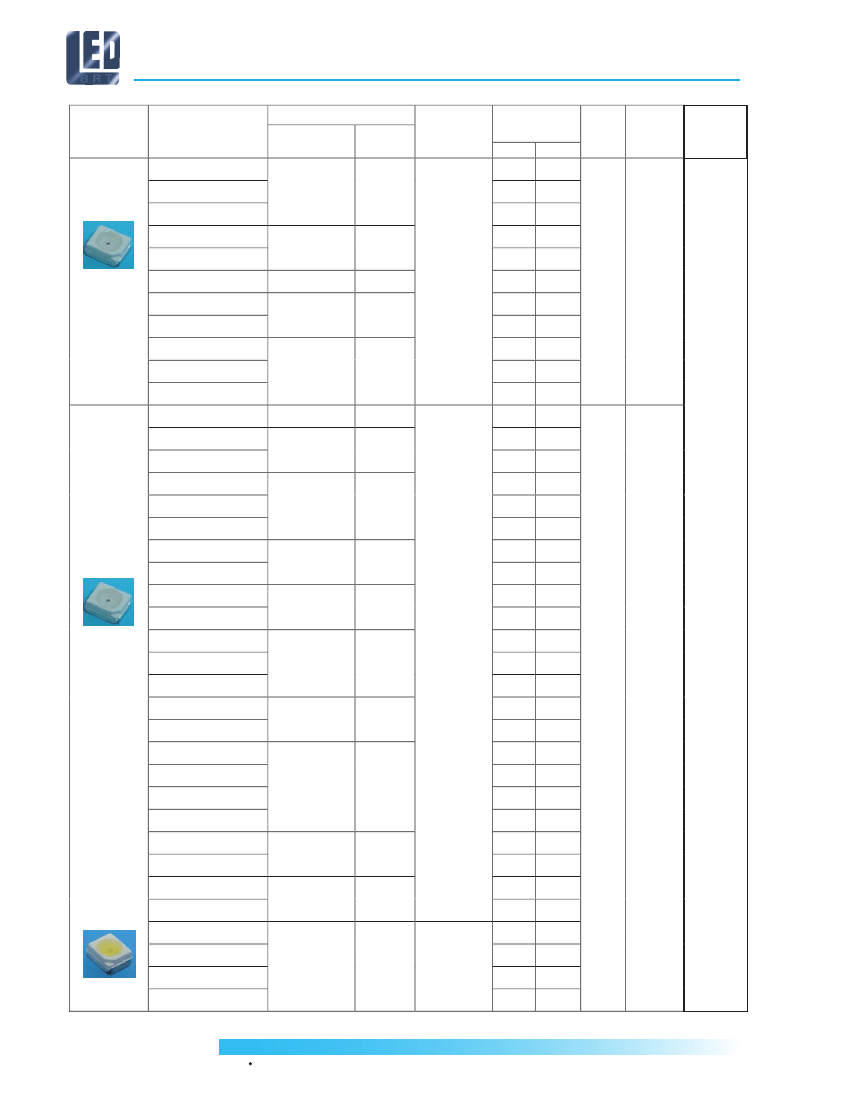

Surface Mount Chip LED Lamps

DOMILED

Chip

Package

Part No.

BL-PDH–GJS-C10

BL-PDH–GJS-C20

BL-PDH–GJS-C30

BL-PDR–GJS-C10

BL-PDR–GJS-C20

Standard

DOMILED

BL-PDO–GJS-C10

BL-PDY–GJS-C10

BL-PDY–GJS-C20

BL-PDG–GJS-C10

BL-PDG–GJS-C20

BL-PDG–GJS-C30

BL-PDH–SJS-C10

BL-PDS-CJS-C10

BL-PDS–SJS-C10

BL-PDR–CJS-C10

BL-PDR–SJS-C10

BL-PDR–TJS–C10

BL-PDA–CJS-C10

BL-PDA–SJS-C10

BL-PDO–CJS-C10

BL-PDO–SJS-C10

Ultra Bright

DOMILED

BL-PDY–CJS-C10

BL-PDY–SJS-C10

BL-PDY–TJS–C10

BL-PDG–CJS–C10

BL-PDG–SJS-C10

BL-PDB–DJS–C10

BL-PDB–CJS-C10

BL-PDB–SJS-C10

BL-PDB–UJS–C10

BL-PDT–CJS-C10

BL-PDT–SJS-C10

BL-PDC–CJS-C10

BL-PDC-SDC–C10

BL-PDW–CJD-C10

BL-PDW–DJD–C10

BL-PDW–SJD-C10

BL-PDW-UJD-C10

White

X=0.29

Y=0.30

Diffused

True Green

525

Blue

470

Green

570

Yellow

587

Water Clear

Amber

615

Red

625

Hyper Red

Super Red

643

632

Green

570

Red

Orange

Yellow

625

605

587

Water Clear

Hyper Red

643

Emitted Color

λ

d

(nm)

Lens

Appearance

Iv (mcd)

Min.

7.2

11.2

28.5

7.2

18.0

7.2

18.0

7.2

11.2

18.0

45.0

71.5

112.5

285.0

112.5

180.0

112.5

180.0

71.5

180.0

285.0

45.0

71.5

11.2

28.5

71.5

112.5

180.0

112.5

180.0

112.5

180.0

285.0

Max.

18.0

28.5

71.5

18.0

45.0

18.0

45.0

18.0

28.5

45.0

90.0

112.5

180.0

285.0

715.0

224.0

450.0

224.0

450.0

180.0

450.0

560.0

90.0

140.0

28.5

71.5

140.0

224.0

285.0

450.0

285.0

450.0

285.0

450.0

715.0

20

120

20

120

At I

F

(mA)

Viewing

Angle

2

θ

1/2

(deg)

PLCC

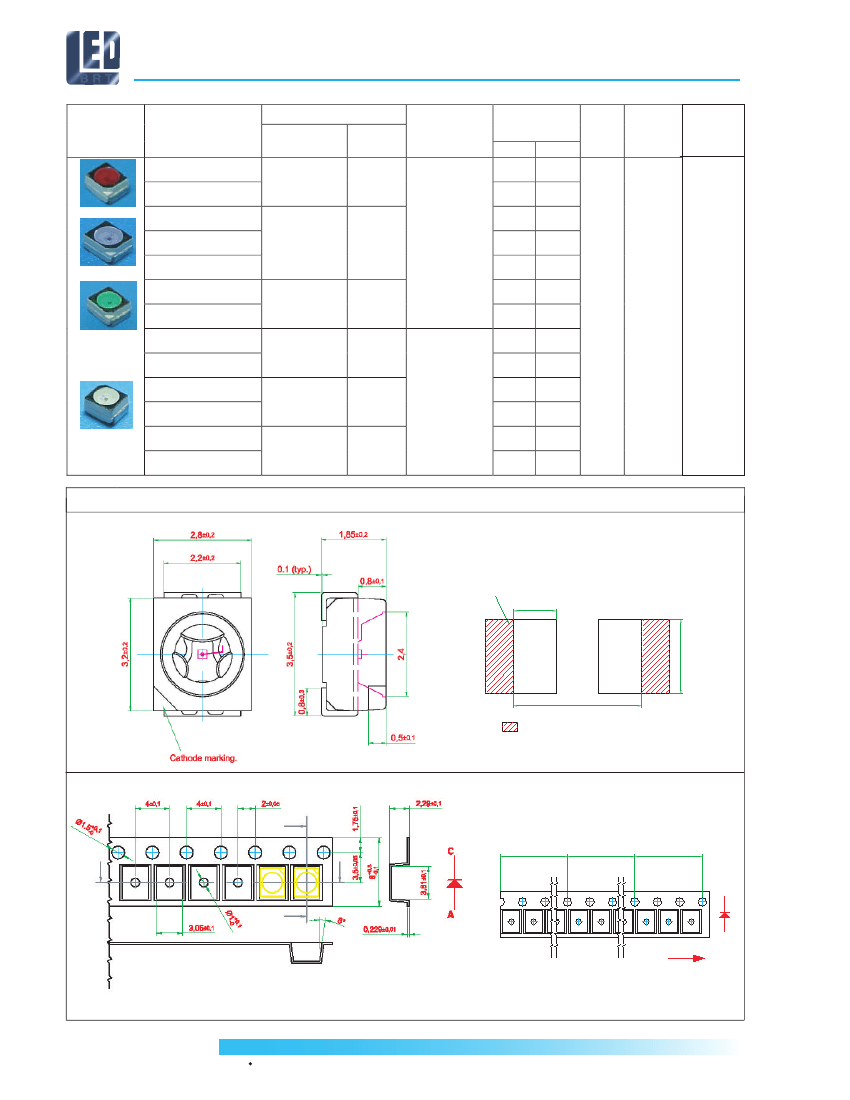

Drawing

No.

P-01

Orange

605

Cyan

505

Remark: 2θ 1/2 : The off-axis angle at which the luminous intensity is half the axial luminous intensity.

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

.

w w w . a m e r ica n b r ig h tle d . co m

PLCC-03

BACK

BL-PDC-SDC-C10 Related Products
