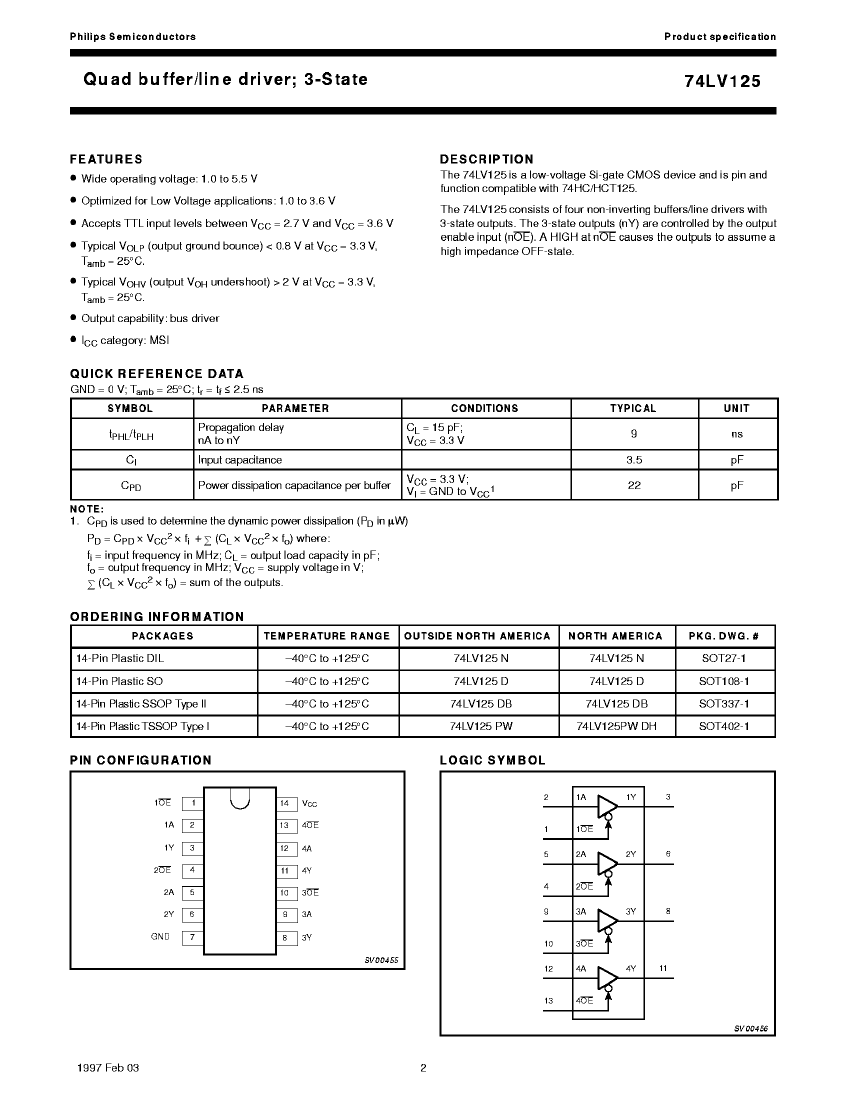

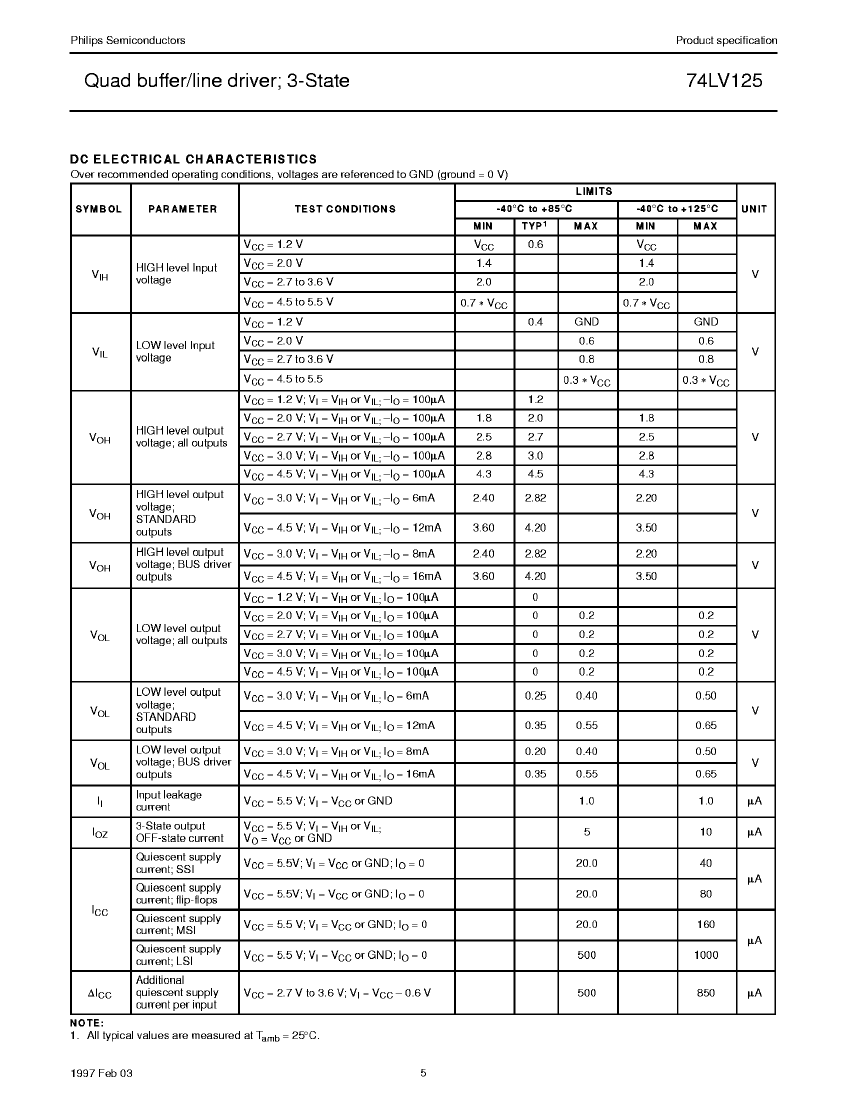

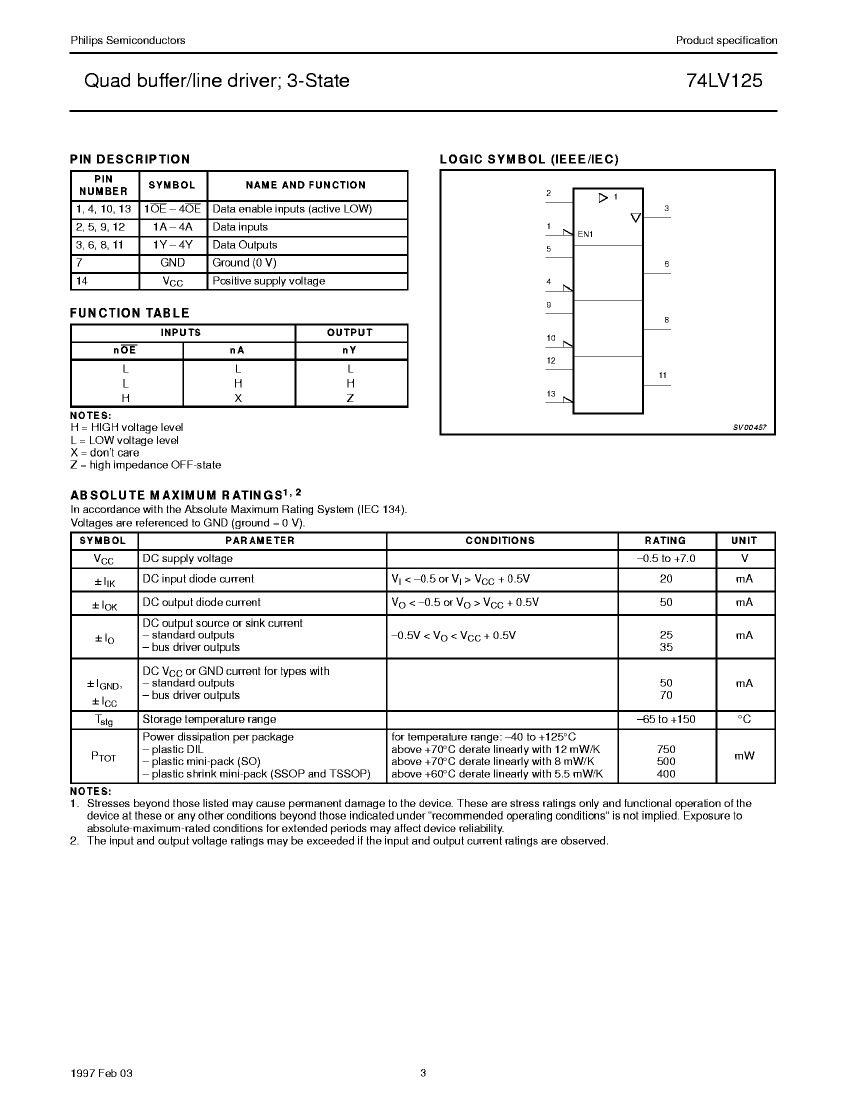

IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver
| Parameter Name | Attribute value |
| package instruction | SOP, |
| Reach Compliance Code | unknown |
| series | LV/LV-A/LVX/H |
| JESD-30 code | R-PDSO-G14 |
| length | 8.65 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 1 |
| Number of functions | 4 |
| Number of ports | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 18 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 1 V |
| Nominal supply voltage (Vsup) | 3.3 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| Base Number Matches | 1 |
| N74LV125D | N74LV125DB-T | N74LV125D-T | N74LV125PW-T | N74LV125PWDH-T | N74LV125DB | N74LV125PW | N74LV125N | N74LV125PWDH | |
|---|---|---|---|---|---|---|---|---|---|
| Description | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver | LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDIP14 | IC LV/LV-A/LVX/H SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14, Bus Driver/Transceiver |
| package instruction | SOP, | SSOP, | SOP, | TSSOP, | TSSOP, | SSOP, | TSSOP, | DIP, | TSSOP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| series | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 | R-PDSO-G14 |
| length | 8.65 mm | 6.2 mm | 8.65 mm | 5 mm | 5 mm | 6.2 mm | 5 mm | 19.025 mm | 5 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SSOP | SOP | TSSOP | TSSOP | SSOP | TSSOP | DIP | TSSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | IN-LINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| propagation delay (tpd) | 18 ns | 18 ns | 18 ns | 18 ns | 18 ns | 18 ns | 18 ns | 18 ns | 18 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 2 mm | 1.75 mm | 1.1 mm | 1.1 mm | 2 mm | 1.1 mm | 4.2 mm | 1.1 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V |
| Nominal supply voltage (Vsup) | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 0.65 mm | 1.27 mm | 0.65 mm | 0.65 mm | 0.65 mm | 0.65 mm | 2.54 mm | 0.65 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 3.9 mm | 5.3 mm | 3.9 mm | 4.4 mm | 4.4 mm | 5.3 mm | 4.4 mm | 7.62 mm | 4.4 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| Maker | - | NXP | NXP | NXP | NXP | - | NXP | NXP | NXP |
