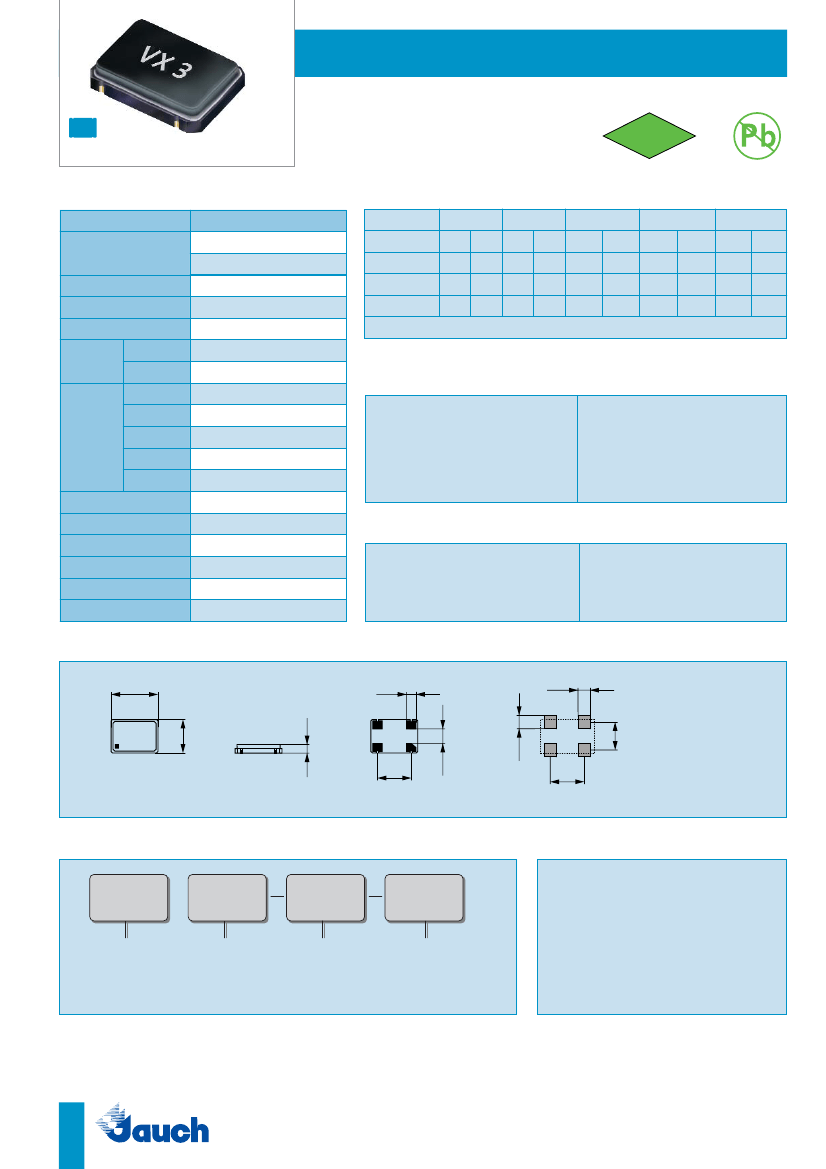

Oscillator · VX3 · 5.0 V
SMD Oscillator with Tristate Function
·
7.0 x 5.0 mm
actual size
■
preferred type for extended temperature range
■
reflow soldering temperature: 260
°C max.
■
full ceramic package
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
VX3 5.0 V
0.50 ~ 107.0 MHz (15pF max.)
0.50 ~ 80.0 MHz (50pF max.)
frequency stability over all*
current consumption
supply voltage V
DC
temperature
operating
storage
output
rise & fall time
load max
current max.
low level max.
high level min.
output enable time max.
output disable time max.
start-up time max.
standby function
phase jitter 12 kHz ~ 20.0 MHz
symmetry at 0.5 x V
DC
± 20ppm ~ ± 100ppm (table 1)
see table 2
5.0 V ± 10%
-10 °C ~ +70 °C / -40 °C ~ +85 °C
-55 °C ~ +125 °C
see table 3
15pF / 50pF
16mA
0.1 x V
DC
0.9 x V
DC
100ns
100ns
10ms
tristate
< 1.0ps RMS
45% ~ 55% typ. (40% ~ 60% max.)
Table 1: Type
stability
type VX3
output load
-10 °C ~ +70 °C
-40 °C ~ +85 °C
± 100 ppm
E
X
± 50 ppm
F
Y
± 30 ppm
FS
15 pF
O
O
YS
50 pF
O
O
± 25 ppm
EQ
15 pF
O
O
XQ
50 pF
O
O
± 20 ppm
EP
15 pF
Δ
XP
50 pF
Δ
15 pF 50 pF 15 pF 50 pF
•
standard
•
•
O
O
O
O
O
O
O
available
Δ
excludes aging
* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
Current at 15pF load
0.5 ~ 29.9 MHz
30.0 ~ 34.9 MHz
35.0 ~ 65.9 MHz
66.0 ~ 79.9 MHz
80.0 ~ 107.0 MHz
10 mA
15 mA
30 mA
50 mA
60 mA
Current at 50pF load
0.5 ~ 19.9 MHz
20.0 ~ 49.9 MHz
50.0 ~ 80.0 MHz
20 mA
35 mA
60 mA
Table 3: Rise & Fall Time max.
8.0 ns: 0.5 ~ 1.79 MHz
6.0 ns: 1.8 ~ 34.99 MHz
5.0 ns: 35.0 ~ 107.00 MHz
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
Dimensions
7.0
±0.2
1.6
±0.15
#4
#3
5.0
±0.2
#3
1.4
±0.1
#4
2.0
±0.1
4.2
±0.1
1.8
±0.1
#1
#2
side view
#2
5.08
±0.1
#1
5.08
±0.1
pad layout
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
in mm
top view
bottom view
Order Information
2.6
±0.1
Preferred Type
frequency
type
option
VX3E-T1:
± 100 ppm / 15 pF / -40 °C ~ +85 °C
VX3E:
± 100 ppm / 15 pF
O
Oscillator
0.5 ~ 107.0 MHz
VX3E-VX3XP
see table 1
blank = -10 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
Example: O 20.0-VX3X
(LF = RoHS compliant / Pb free pins or pads)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
Oscillator · VX3 · 5.0 V · Tristate Function
Taping Specification (JIS-C0806)
1.75
4.0
2.0
0.3
±0.1
120°
9.25
16.0
±0.3
17.5
7.4
ø 13
ø 80
ø 180
2.0
ø 21
8.0
±0.2
5.4
ø
1,5
±0.1
2.7
500 pcs per reel
Direction of feed
reel marking: type - OH/H
in mm
Enable / Disable Function
pin #1 (e/d control)
open
high ”1” (V
IH
≥
0.8 V
DC
)
low ”0” (V
IL
≤
0.2 V
DC
)
disabled conditions:
• oscillator active
• output high impedance
pin #3 (output)
active
active
high impedance
Marking
type / frequency
date code:
A ~ M: Jan.- Dec.
5: 2005
6: 2006
7: 2007
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
Reflow Soldering Profile
temperature (°C)
260
200
150
100
50
60 ~180 s
60 s max.
10 s max.
260
°C
max.
220
±5 °C
180
±5 °C
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
