74HCT158N-B datasheet, PDF - EEWORLD Datasheet

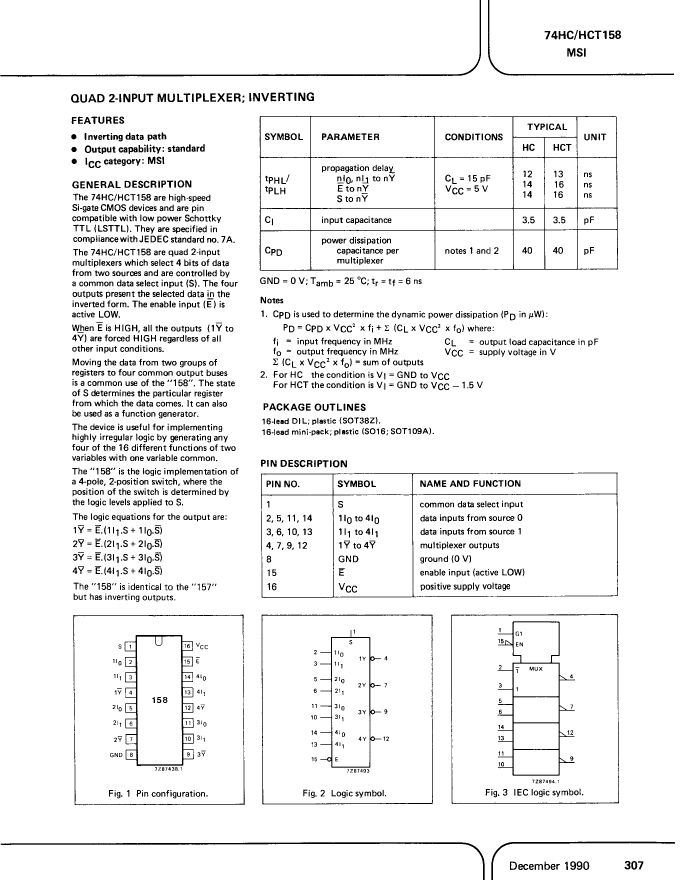

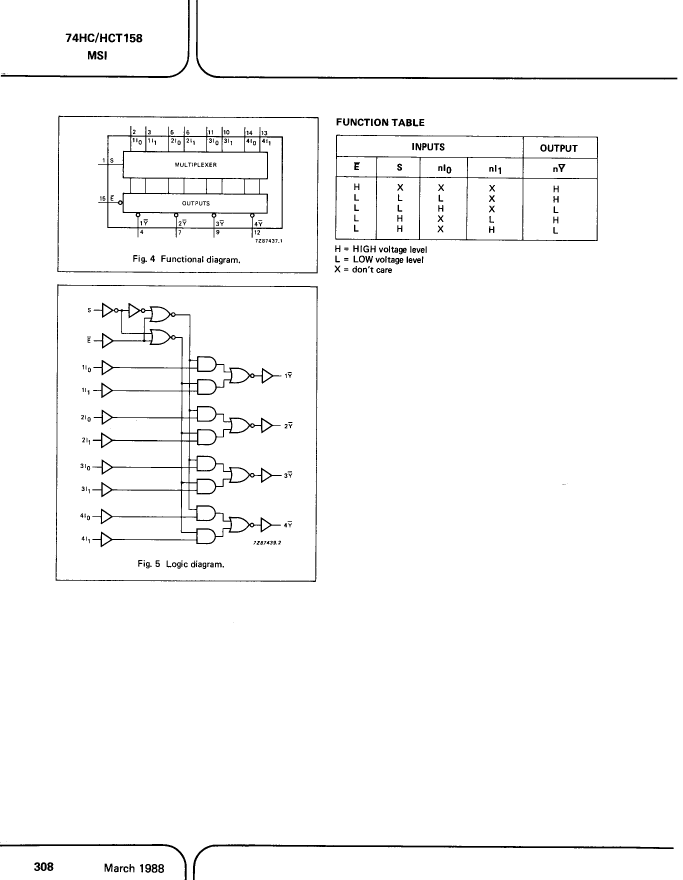

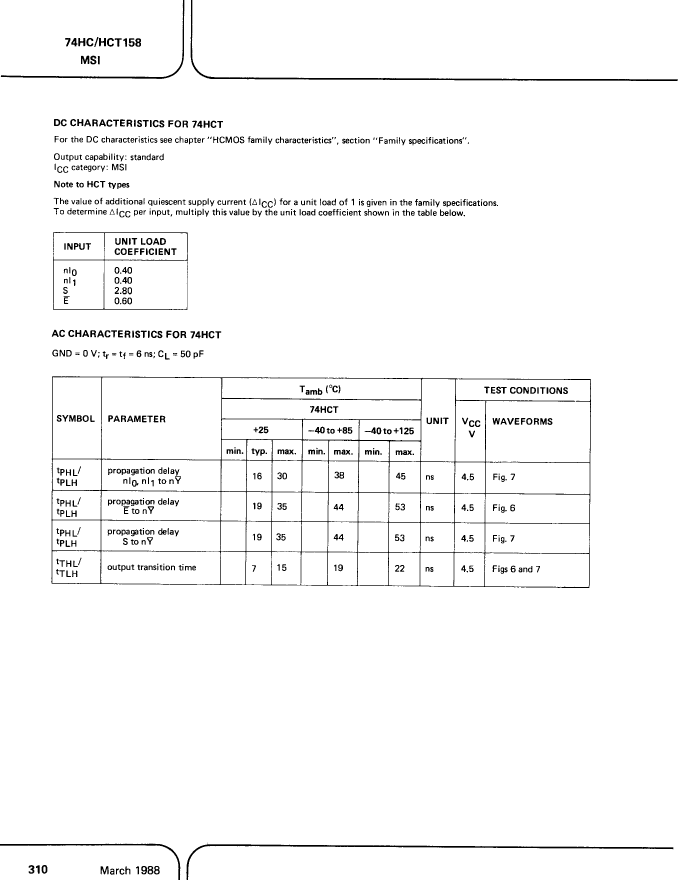

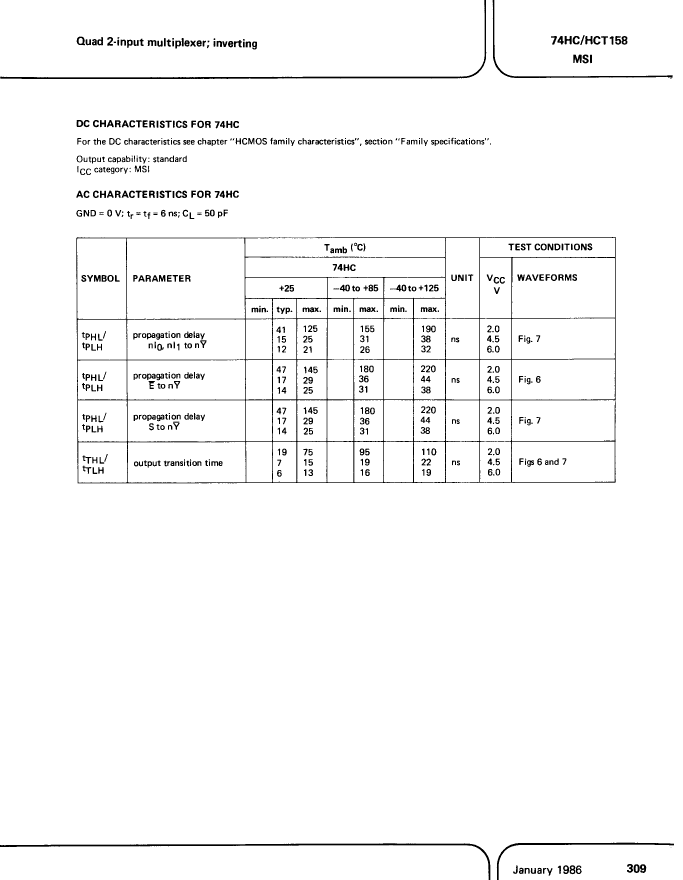

74HCT158N-B: DescriptionMultiplexer, 4-Func, 2 Line Input, CMOS, PDIP16; Categorylogic logic; File Size168KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74HCT158N-B Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, PDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	44 ns
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	74HCT158N-B	74HC158N-B
Description	Multiplexer, 4-Func, 2 Line Input, CMOS, PDIP16	Multiplexer, 4-Func, 2 Line Input, CMOS, PDIP16
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.004 A	0.004 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	2/6 V
Prop。Delay @ Nom-Sup	44 ns	36 ns
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
